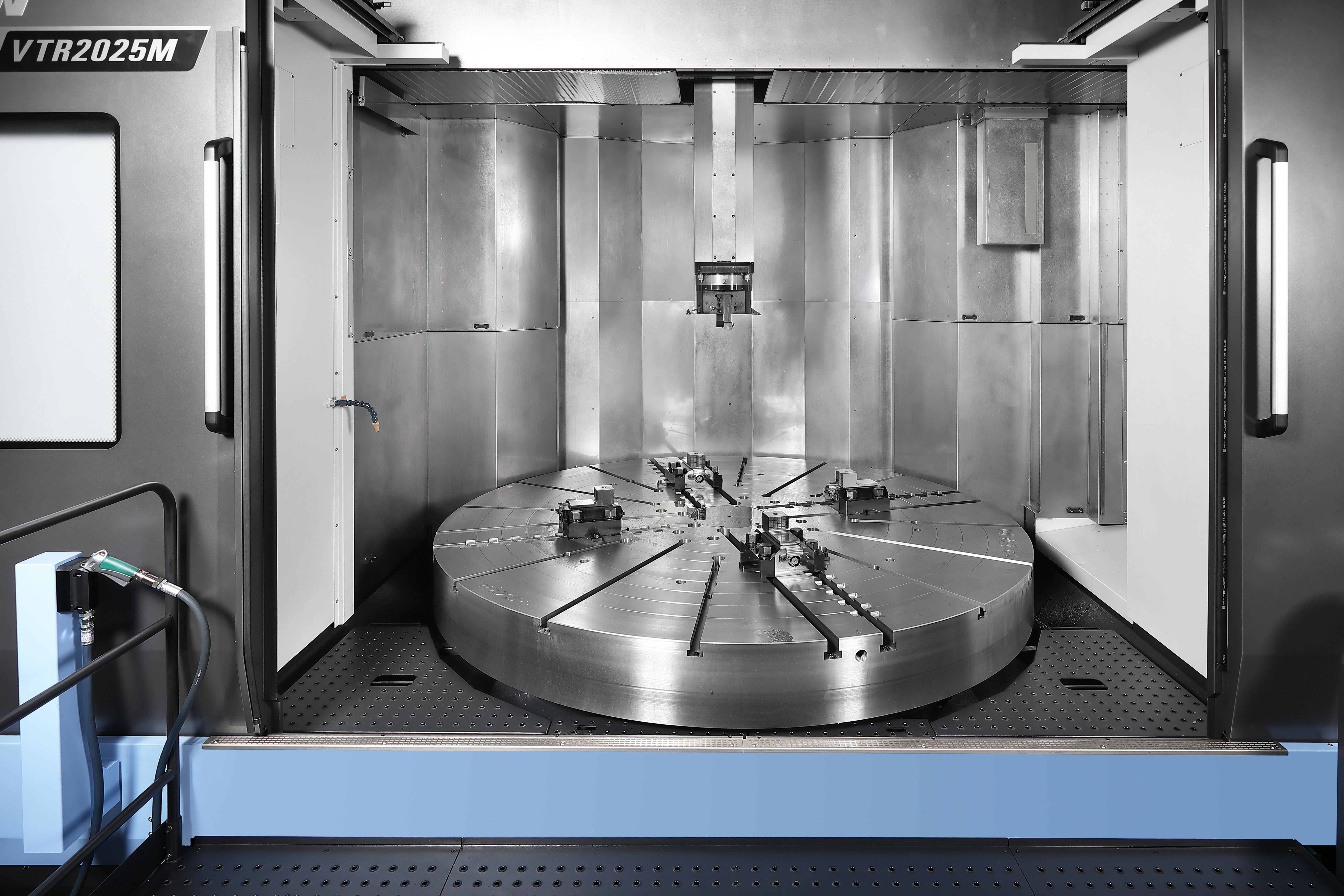

PUMA VTR2025
- Largest Table Diameter: Accommodates a wide range of workpieces with table diameters up to 2500mm (98.4 inches).
- Enhanced Stability: Rigid design and wide-column structure provide superior stability during heavy-duty operations.
- High Productivity: Optimized for efficient, high-volume machining with reliable performance and durability.
Highlights
- Travels - X Axis Travel distance (mm): 1640/1000
- Travels - Z Axis Travel distance (mm): 1400
- Chuck size (mm): 2032
- Max. Turning Diameter (mm): 2500
- Max. Turning Length (mm): 2000
Series description
|
The PUMA VTR Series features the largest table diameter in its class, ranging from Ø1250mm to Ø2500mm (50.0 to 98.4 inches). These machines are designed for maximum stability and productivity, with a robust, wide-column structure that ensures exceptional rigidity and reliable performance in demanding machining applications. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 1640/1000 |
|---|---|
| Travels - Z Axis Travel distance (mm) | 1400 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 10 |
|---|---|
| Feed rate - Z Axis Rapid Traverse | 10 |
Tool storage capacity
| Machining center - No. of tool station | 15 |
|---|
Capacity
| Chuck size (mm) | 2032 |
|---|---|
| Max. Turning Diameter (mm) | 2500 |
| Max. Turning Length (mm) | 2000 |
Turret
| Rotary Tool (r/min) | 3000 |
|---|
Dimensions
| Length (mm) | 7296 |
|---|---|
| Height (mm) | 7600 |
| Width (mm) | 4836 |
| Weight (kg) | 55000 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_VTR .pdf | 12045 KB | |
|
TOOLING SYSTEM-PUMA-VTR-1012-1216-1620-2025.pdf | 2568 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
