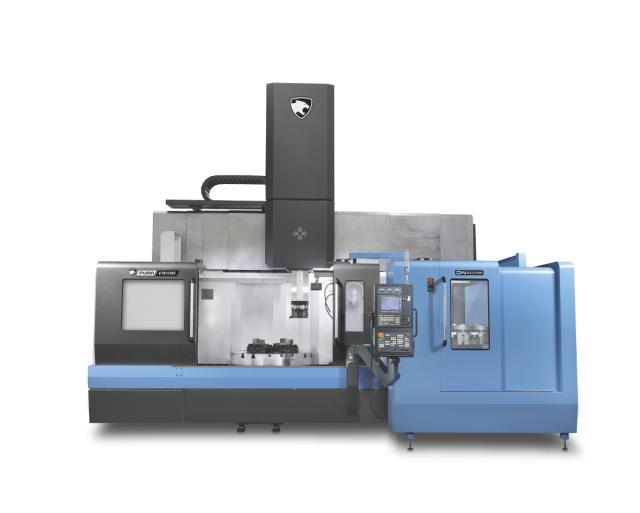

    PUMA VTR1216F

    • Largest Table Diameter: Accommodates a wide range of workpieces with table diameters up to 2500mm (98.4 inches).
    • Enhanced Stability: Rigid design and wide-column structure provide superior stability during heavy-duty operations.
    • High Productivity: Optimized for efficient, high-volume machining with reliable performance and durability.

    Highlights

    • Travels - X Axis Travel distance (mm): 1000/700
    • Travels - Y Axis Travel distance (mm):
    • Travels - Z Axis Travel distance (mm): 900
    • Chuck size (mm): 1270
    • Max. Turning Diameter (mm): 1600
    • Max. Turning Length (mm): 950

    Series description

    The PUMA VTR Series features the largest table diameter in its class, ranging from Ø1250mm to Ø2500mm (50.0 to 98.4 inches). These machines are designed for maximum stability and productivity, with a robust, wide-column structure that ensures exceptional rigidity and reliable performance in demanding machining applications.

    Travels

    Travels - X Axis Travel distance (mm) 1000/700
    Travels - Y Axis Travel distance (mm)
    Travels - Z Axis Travel distance (mm) 900
    Travels - X Axis Rapid Traverse (m/min) 12
    Travels - Z Axis Rapid Traverse (m/min) 10

    Table

    Table Length (mm)
    Table Width (mm)
    Max. Workpiece weight (kg)
    Pallet Size (mm)
    Rotary Table Diameter (mm)
    Max. Table weight (kg)

    Workpiece capacity

    Max. Workpiece Diameter (mm)
    Max. Workpiece Height (mm)
    Max. Workpiece weight (kg)

    Tool storage capacity

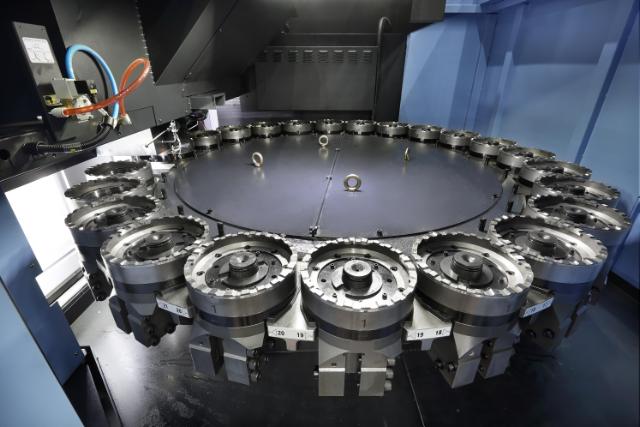

    Machining center - No. of tool station 12

    Capacity

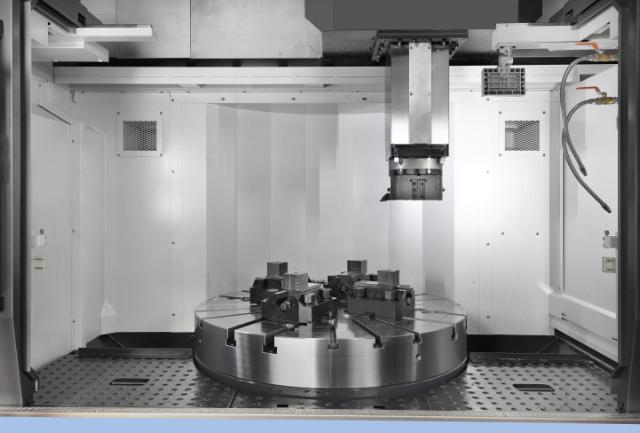

    Chuck size (mm) 1270
    Max. Turning Diameter (mm) 1600
    Max. Turning Length (mm) 950
    Bar Capacity (mm)
    Table to spindle nose

    Main spindle

    Main Spindle Max. Speed 400
    Main Spindle Max. Power 45
    Main Spindle Max. Torque 20557
    Tool Taper (ISO)

    Turret

    Rotary Tool (r/min)
    Turret - No. of tool station 12

    Dimensions

    Length (mm) 5590
    Height (mm) 5065
    Width (mm) 4066
    Weight (kg) 27500
