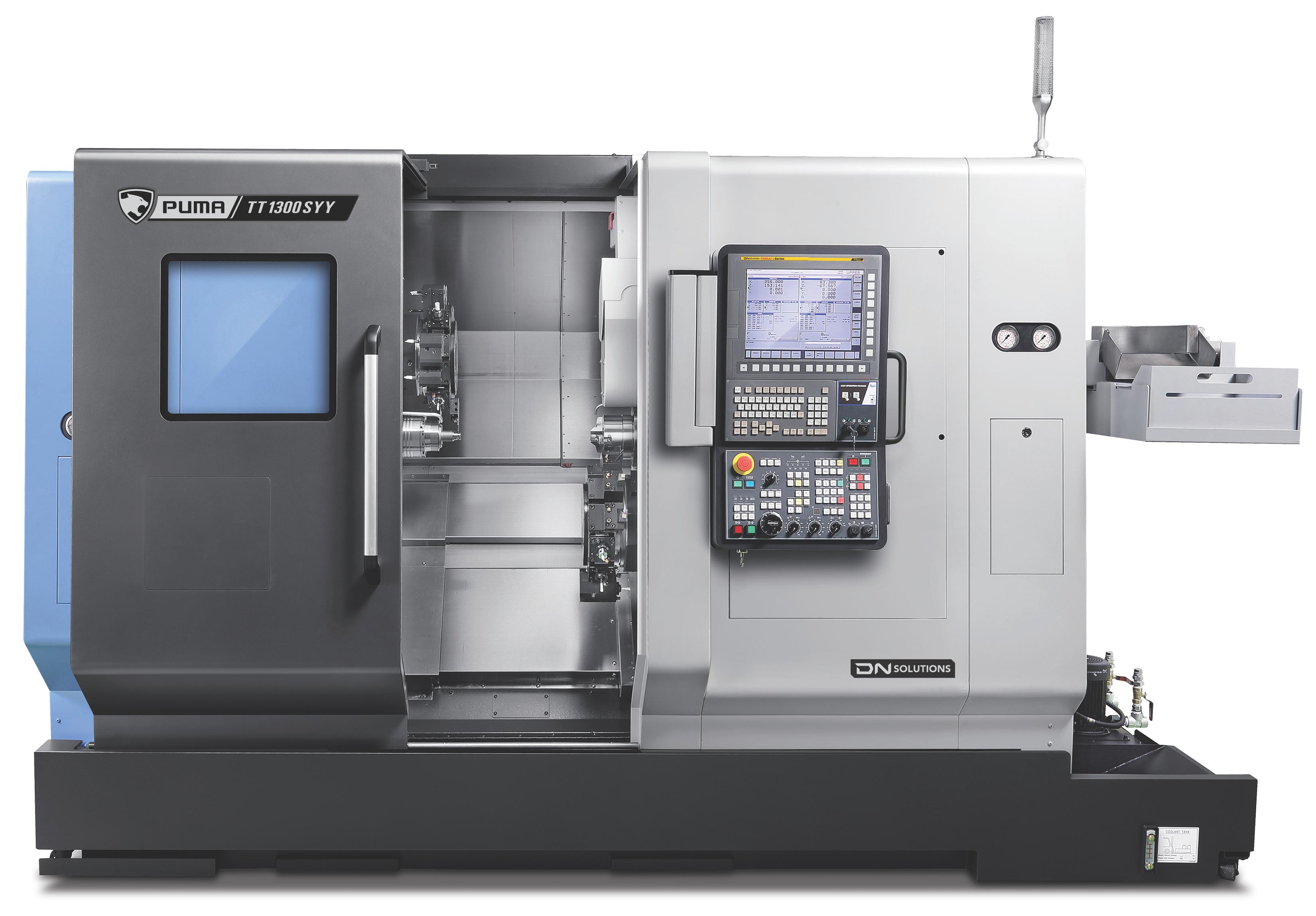

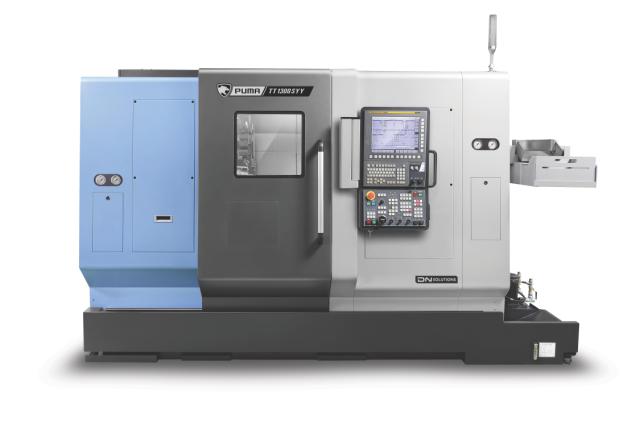

PUMA TT1300 Series

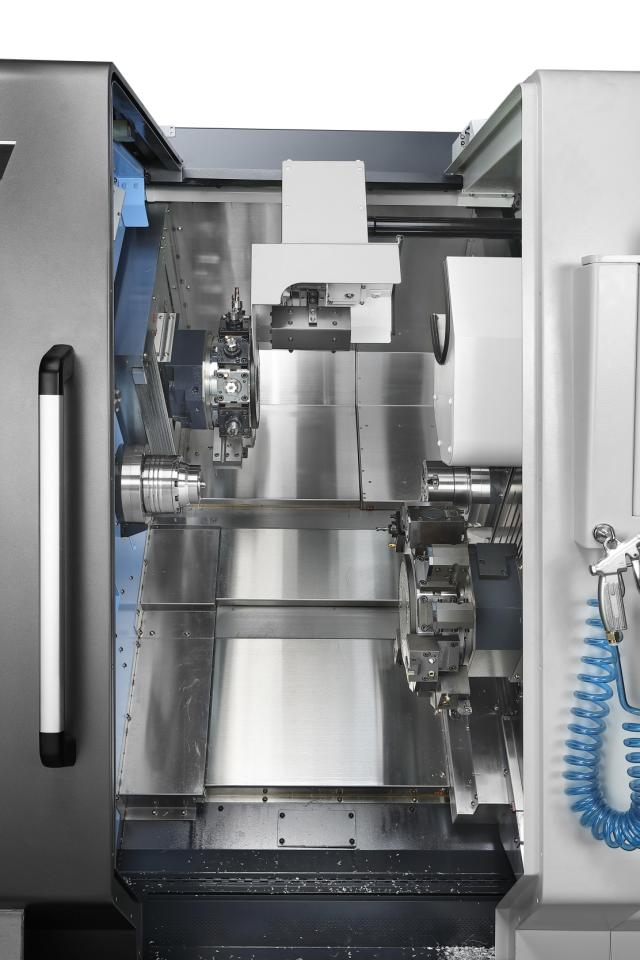

- Dual Spindle Efficiency: Twin opposed spindles with equal power allow simultaneous machining on two faces, significantly increasing productivity.

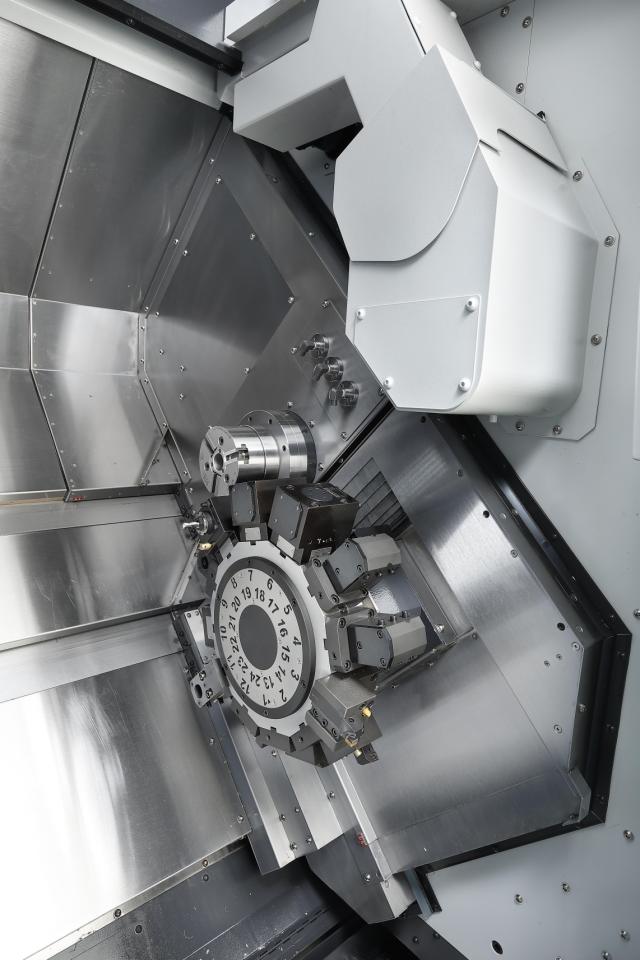

- Flexible Machining Capabilities: Equipped with upper/lower turrets and Y-axis functionality, these machines handle complex tasks with precision and efficiency.

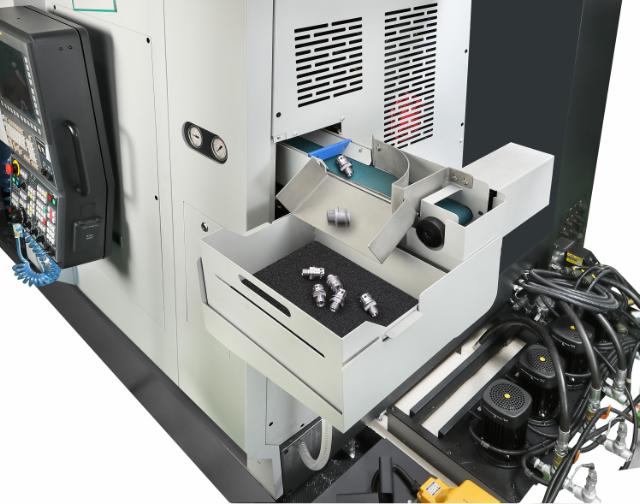

- Automated Operation: Independent spindle processing and automatic workpiece ejection streamline operations, reducing downtime and maximizing throughput.
Highlights
- Travels - X Axis Travel distance (mm): 135
- Travels - Y Axis Travel distance (mm): 80
- Travels - Z Axis Travel distance (mm): 530
- Chuck size (mm): 127
- Max. Turning Diameter (mm): 175
- Max. Turning Length (mm): 120
Control System
Series description
|
The PUMA TT1300, TT1800, TT2100, and TT2500 series are high-productivity horizontal turning centers with bar capacities ranging from 42mm to 81mm. These machines are equipped with twin opposed spindles and upper/lower turrets, featuring Y-axis capabilities for simultaneous two-face machining. Both spindles have equal power and capacity, allowing independent operation and automatic workpiece ejection, significantly enhancing productivity. Favored globally, the PUMA TT series is renowned for its best-in-class performance and reliability, making it one of DN Solutions' top-selling products. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 135 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 80 |
| Travels - Z Axis Travel distance (mm) | 530 |
| Travels - X Axis Rapid Traverse (m/min) | 30 |
| Travels - Y Axis Rapid Traverse (m/min) | 15 |
| Travels - Z Axis Rapid Traverse (m/min) | 40 |
Tool storage capacity
| Machining center - No. of tool station | 24 |
|---|
Capacity
| Chuck size (mm) | 127 |
|---|---|
| Max. Turning Diameter (mm) | 175 |
| Max. Turning Length (mm) | 120 |
| Bar Capacity (mm) | 42 |
Main spindle
| Main Spindle Max. Speed | 6000 |
|---|---|
| Main Spindle Max. Power | 11 |
| Main Spindle Max. Torque | 93 |
Turret
| Rotary Tool (r/min) | 6000 |
|---|---|
| Turret - No. of tool station | 24 |
Dimensions
| Length (mm) | 3405 |
|---|---|
| Height (mm) | 2070 |
| Width (mm) | 2300 |
| Weight (kg) | 8000 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_TT.pdf | 6381 KB | |
|
TOOLING SYSTEM-PUMA-TT-1300-2100.pdf | 329 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
