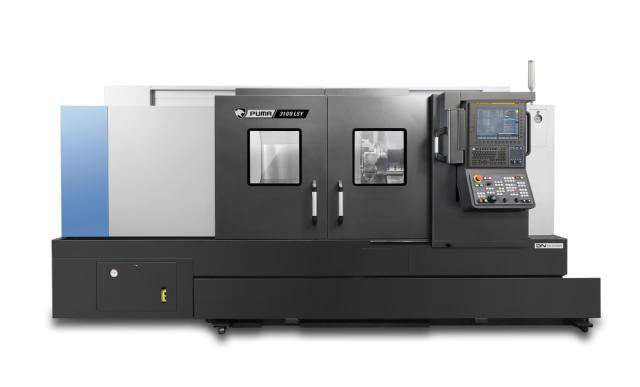

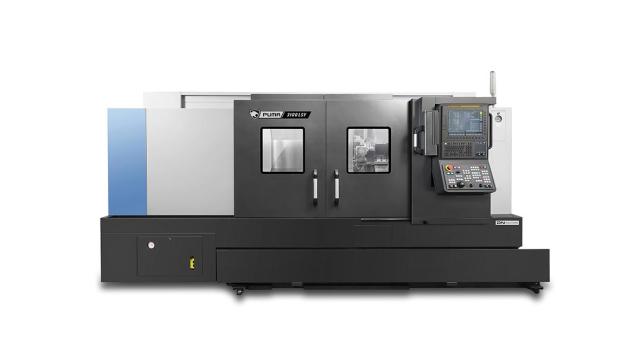

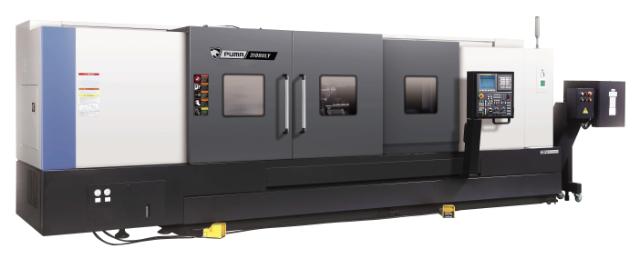

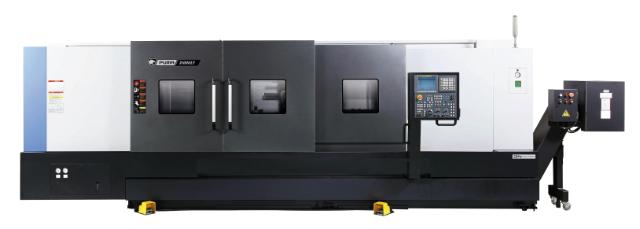

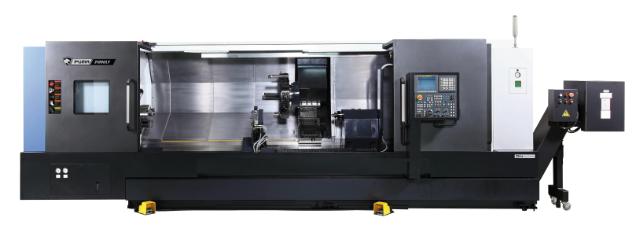

PUMA 3100 Series
HIGH PERFORMANCE HORIZONTAL TURNING CENTER

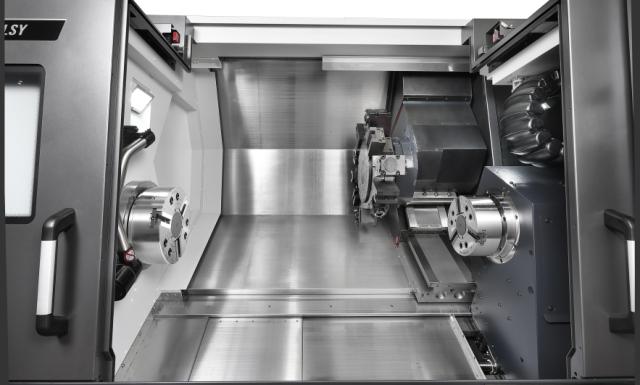

- Versatile Configurations: Available in 2-axis, Y-axis, and sub-spindle models, catering to a wide range of machining requirements.
- Comprehensive Size Range: Covers 12" to 15" sizes, offering flexibility and adaptability for various applications.
- High-Level Performance: Designed to deliver superior precision and efficiency across all model variations.
Highlights
- Travels - X Axis Travel distance (mm): 293
- Travels - Z Axis Travel distance (mm): 830
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 525
- Max. Turning Length (mm): 790

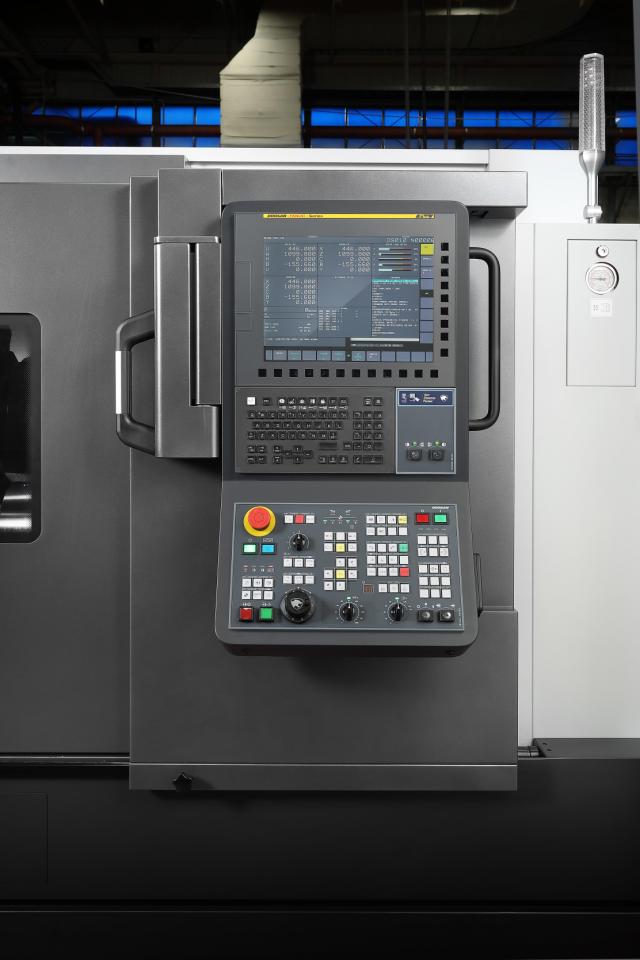

Control System
Fanuc
Series description
|
The PUMA 2100/2600/3100 series offers a comprehensive range of high-level turning centers with 12" to 15" sizes. These models vary from 2-axis to Y-axis and sub-spindle configurations, providing versatile solutions for diverse machining needs. |
DETAIL2068
https://youtu.be/eZkX3-ruPAk
https://youtu.be/eZkX3-ruPAk
DETAIL2068
https://youtu.be/eZkX3-ruPAk
https://youtu.be/eZkX3-ruPAk
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 293 |
|---|---|
| Travels - Z Axis Travel distance (mm) | 830 |
| Travels - X Axis Rapid Traverse (m/min) | 30 |
| Travels - Z Axis Rapid Traverse (m/min) | 30 |
Tool storage capacity
| Machining center - No. of tool station | 10 |
|---|
Capacity
| Chuck size (mm) | 304.8 |
|---|---|
| Max. Turning Diameter (mm) | 525 |
| Max. Turning Length (mm) | 790 |
| Bar Capacity (mm) | 102 |
Main spindle
| Main Spindle Max. Speed | 2800 |
|---|---|
| Main Spindle Max. Power | 22 |
| Main Spindle Max. Torque | 1123 |
Turret
| Turret - No. of tool station | 10 |
|---|
Dimensions
| Length (mm) | 3908 |
|---|---|
| Height (mm) | 2010 |
| Width (mm) | 1978 |
| Weight (kg) | 5850 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_3100.pdf | 10692 KB | |
|
TOOLING SYSTEM-PUMA-2100-2600-3100.pdf | 1504 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
