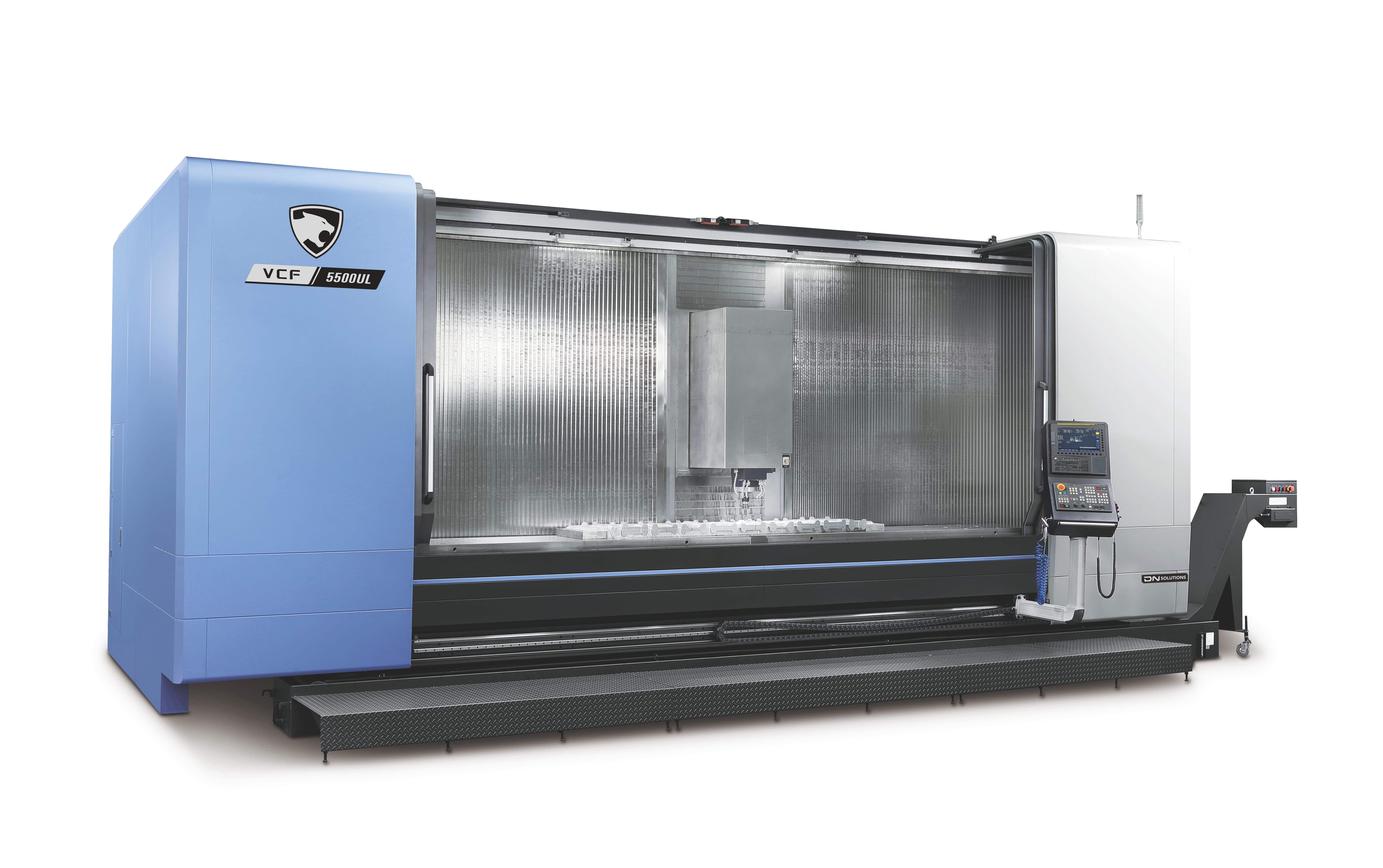

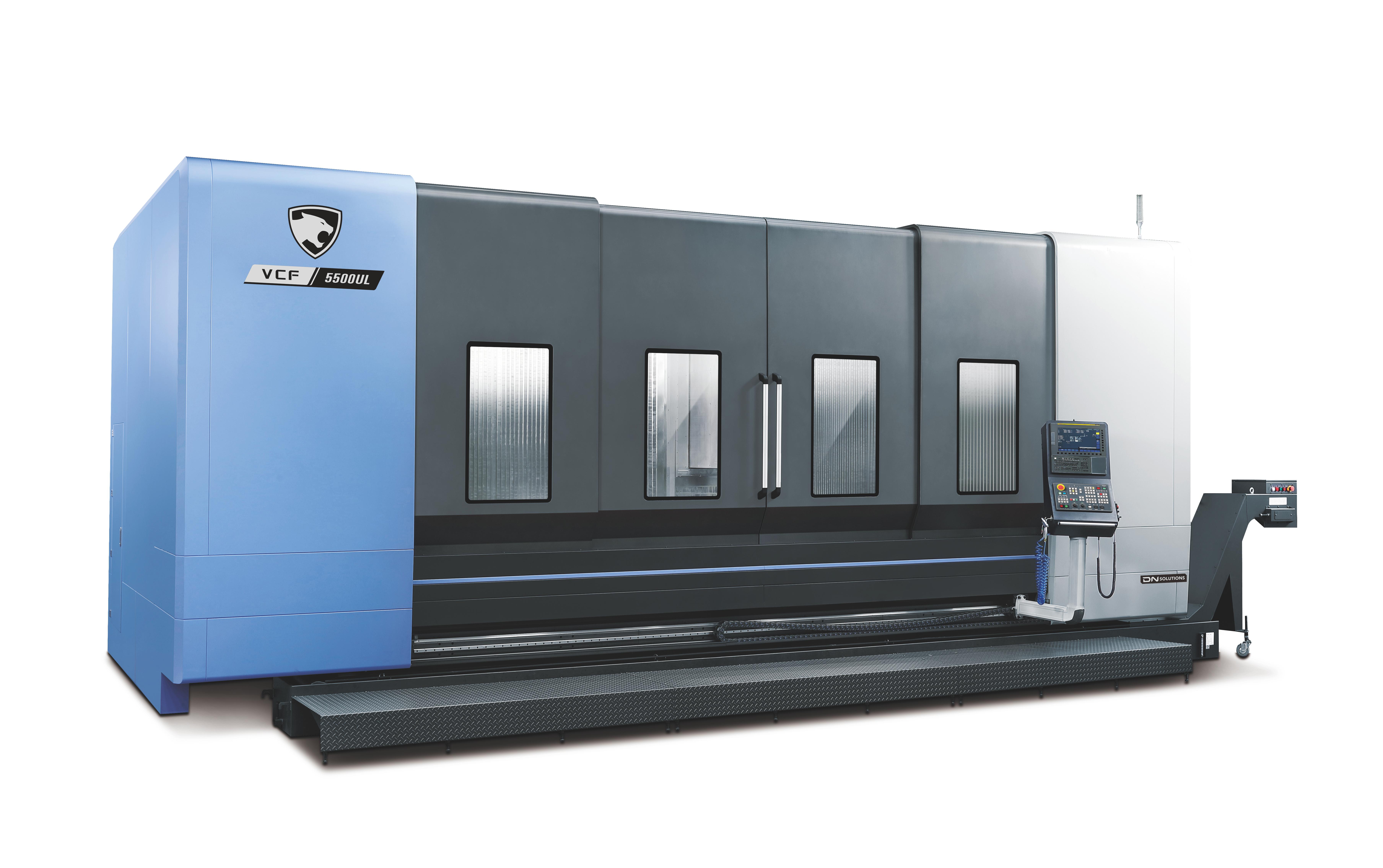

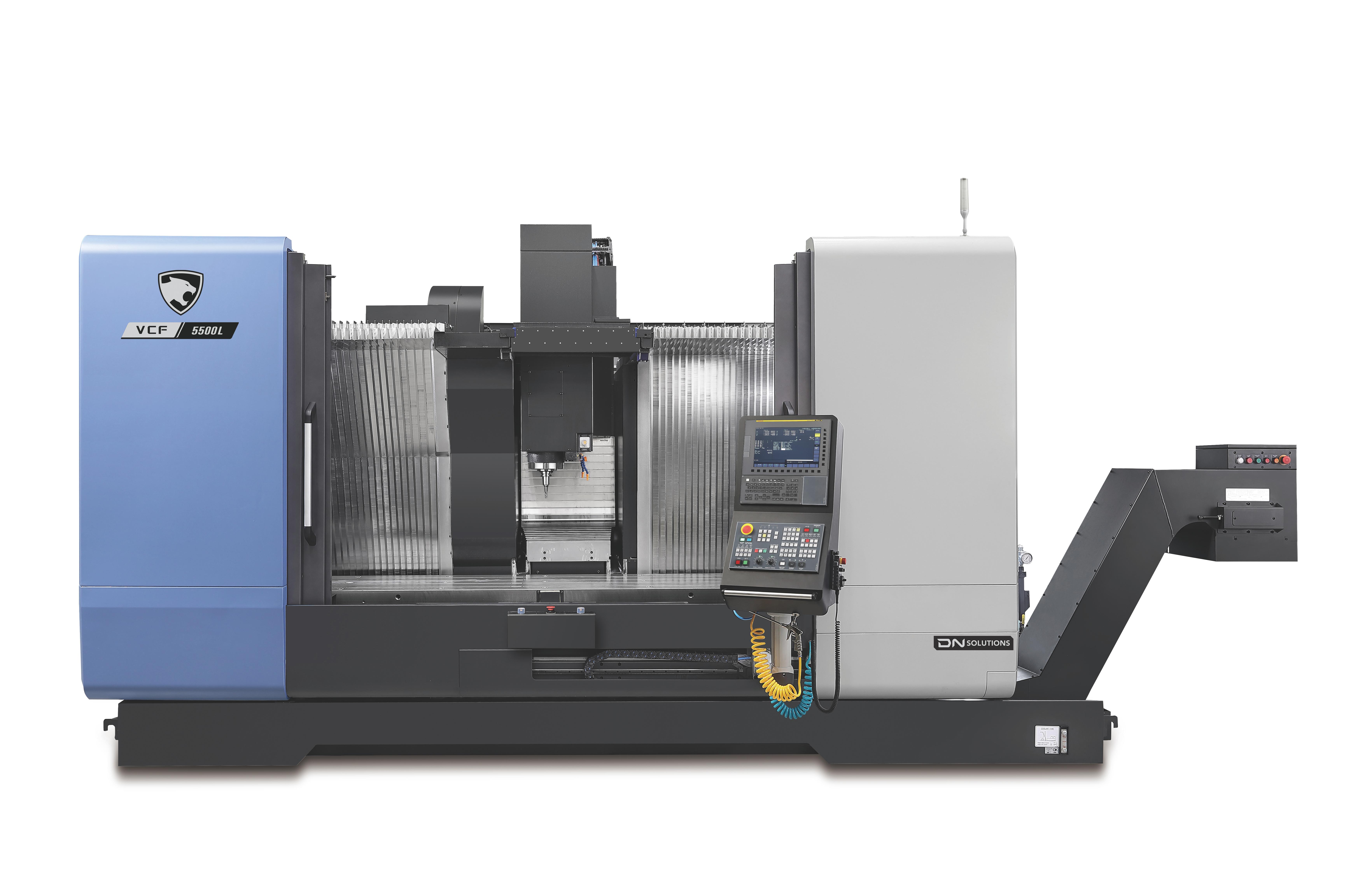

    VCF 5500L

    • Versatile Machining: Both the VCF 5500 and VCF 850II Series are designed for a wide range of applications, from EV frames to complex parts.
    • Enhanced Productivity: Optional features like rotary tables and center partitions maximize efficiency and output, especially for long-shaped parts.
    • Improved Cutting Performance: The VCF 850II Series offers high-rigidity B-axes for greater cutting precision and flexibility in demanding tasks.

    Highlights

    • Travels - X Axis Travel distance (mm): 2200
    • Travels - Y Axis Travel distance (mm): 550
    • Travels - Z Axis Travel distance (mm): 510

    Series description

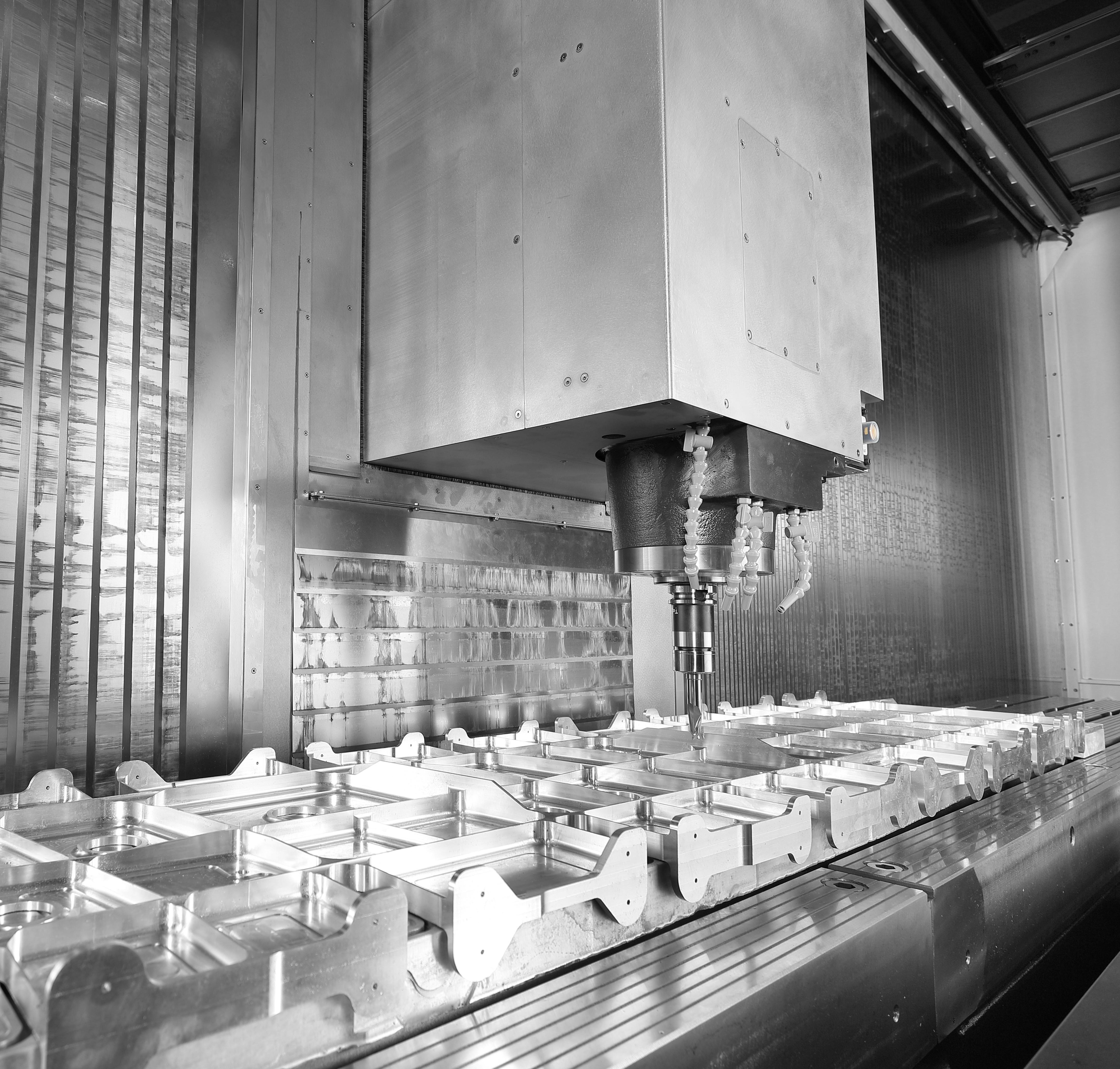

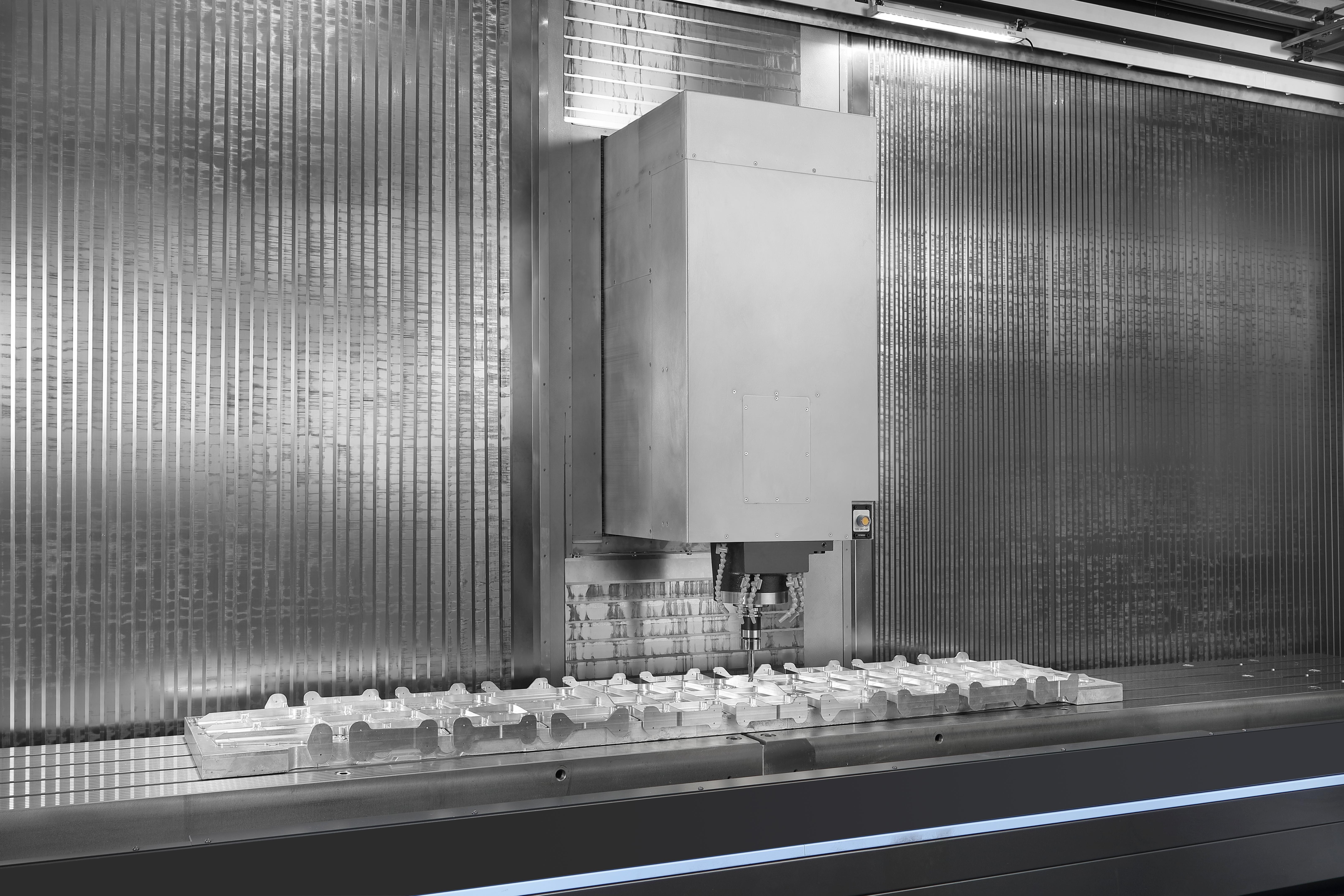

    The VCF 5500 and VCF 850II Series are versatile, multi-purpose moving column vertical machining centers designed to handle a wide range of applications. The VCF 5500L/UL/SL models feature fixed tables and an optional center partition for enhanced productivity, making them ideal for machining long-shaped parts, such as EV frames and battery systems, with rotary tables for lengths up to 2.2 meters.

    The VCF 850II Series, an upgraded line, offers high-rigidity and durable B-axes, delivering improved cutting performance and machining flexibility. With a 3-meter X-axis, these machines can further enhance productivity with options like rotary tables and center partitions, making them suitable for diverse machining tasks.

    Travels

    Travels - X Axis Travel distance (mm) 2200
    Travels - Y Axis Travel distance (mm) 550
    Travels - Z Axis Travel distance (mm) 510
    Travels - Y Axis Rapid Traverse (m/min)

    Feed rates

    Feed rate - X Axis Rapid Traverse 42
    Feed rate - Y Axis Rapid Traverse 42
    Feed rate - Z Axis Rapid Traverse 42

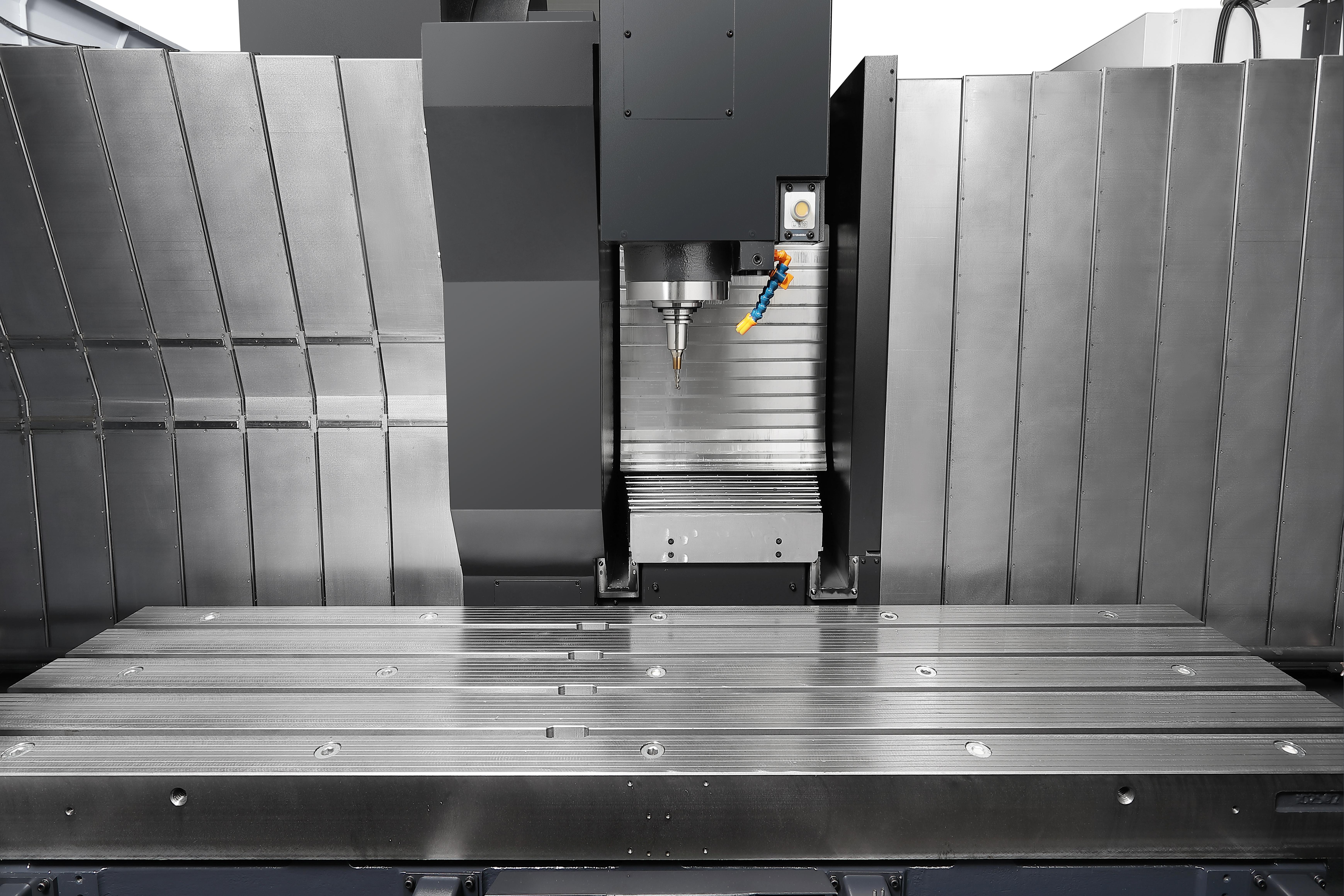

    Table

    Table Length (mm) 2500
    Table Width (mm) 580
    Max. Workpiece weight (kg) 2000

    Workpiece capacity

    Max. Workpiece Height (mm) 600
    Max. Workpiece weight (kg) 2000

    Tool storage capacity

    Machining center - No. of tool station 30

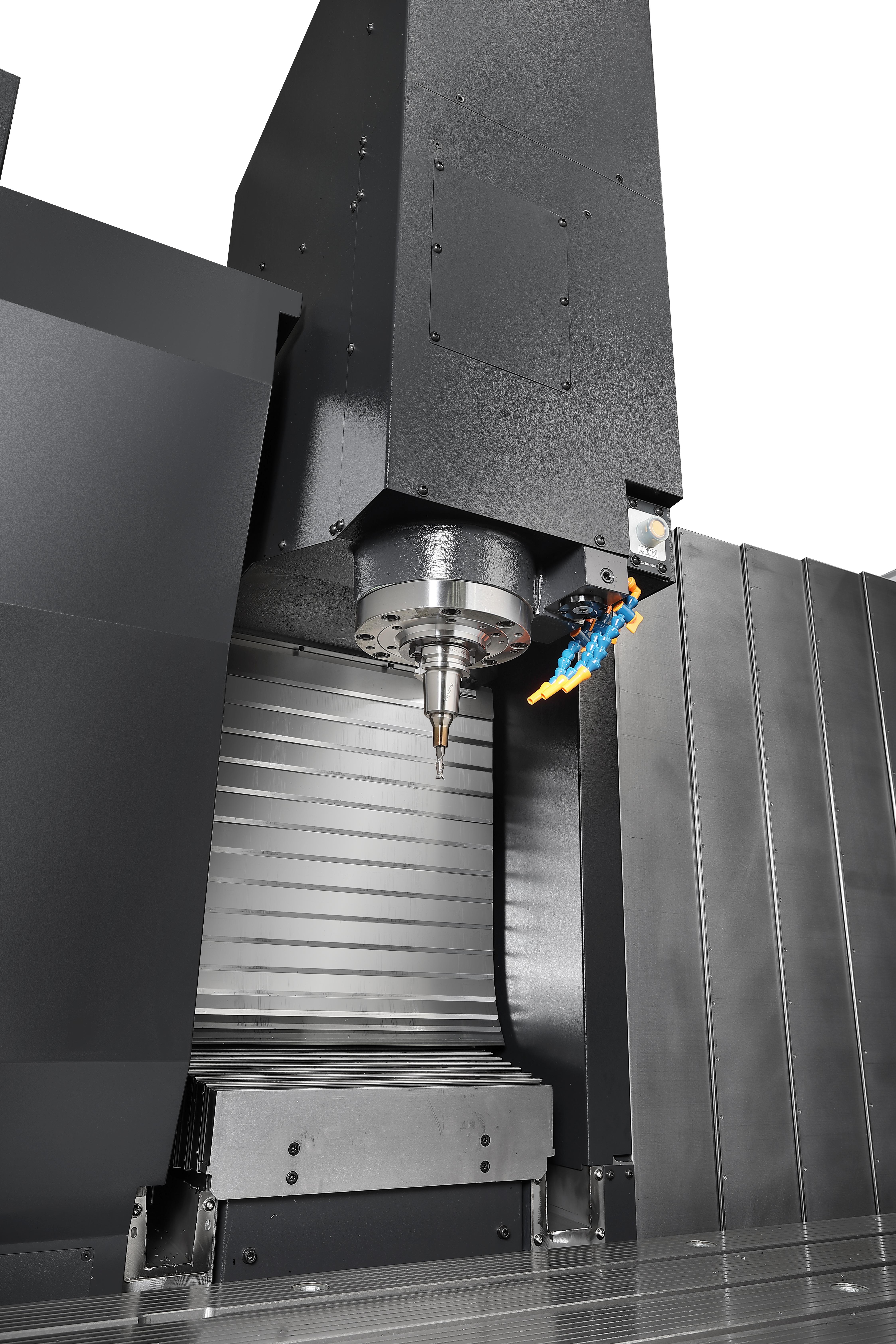

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 11
    Main Spindle Max. Torque 117.8
    Tool Taper (ISO) 40

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 3138
    Height (mm) 2950
    Width (mm) 4590
    Weight (kg) 12000
