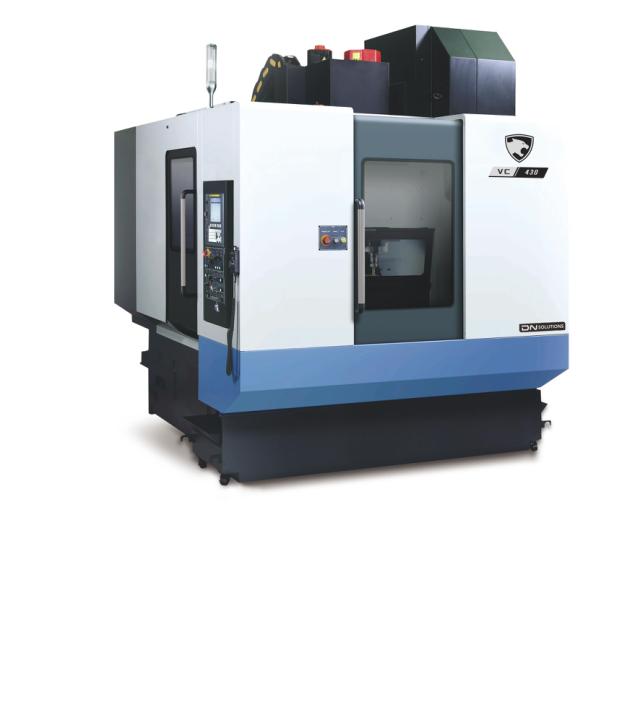

    VC 430/510 Series

    HIGH PRODUCTIVITY TWIN TABLE VERTICAL MACHINING CENTER

    • Optimized Precision: The VC430/VC510 Series ensures high precision during extended operations with a moving column structure and powerful spindle.
    • Maximized Productivity: Rapid workpiece changes with rotating pallets and simultaneous operation functions in the VC 3600 Series significantly boost efficiency.
    • Enhanced Durability: Both series feature robust frames and advanced servo units for improved reliability and consistent performance in demanding applications.

    Highlights

    • Travels - X Axis Travel distance (mm): 762
    • Travels - Y Axis Travel distance (mm): 516
    • Travels - Z Axis Travel distance (mm): 570

    Control System

      Fanuc

    Series description

    The VC430/VC510 Series twin table vertical machining centers are designed for high-precision operations over extended periods. Featuring a moving column structure, these machines maximize productivity through rapid workpiece changes with a rotating pallet and a powerful spindle.

    The VC 3600 Series is a compact, high-productivity vertical machining center tailored for the automotive and IT industries. It includes a simultaneous operation function, where the rotary table turns and all axes position simultaneously during tool changes. Enhanced durability and reliability are achieved through a more rigid frame and an advanced servo unit, making it ideal for demanding production environments.

    Travels

    Travels - X Axis Travel distance (mm) 762
    Travels - Y Axis Travel distance (mm) 516
    Travels - Z Axis Travel distance (mm) 570
    Travels - Z Axis Rapid Traverse (m/min) 32

    Feed rates

    Feed rate - X Axis Rapid Traverse 40
    Feed rate - Y Axis Rapid Traverse 40

    Table

    Table Length (mm) 860
    Table Width (mm) 570
    Max. Workpiece weight (kg) 350
    Pallet Size (mm) 2x 860x570
    Max. Table weight (kg) 350

    Workpiece capacity

    Max. Workpiece Height (mm) 520
    Max. Workpiece weight (kg) 350

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 10000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 117.7
    Tool Taper (ISO) BT40

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 3260
    Height (mm) 3130
    Width (mm) 2580
    Weight (kg) 9200
      Name Download File type
    VC 430/510 Series
    		VC_430_510.pdf 3478 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
