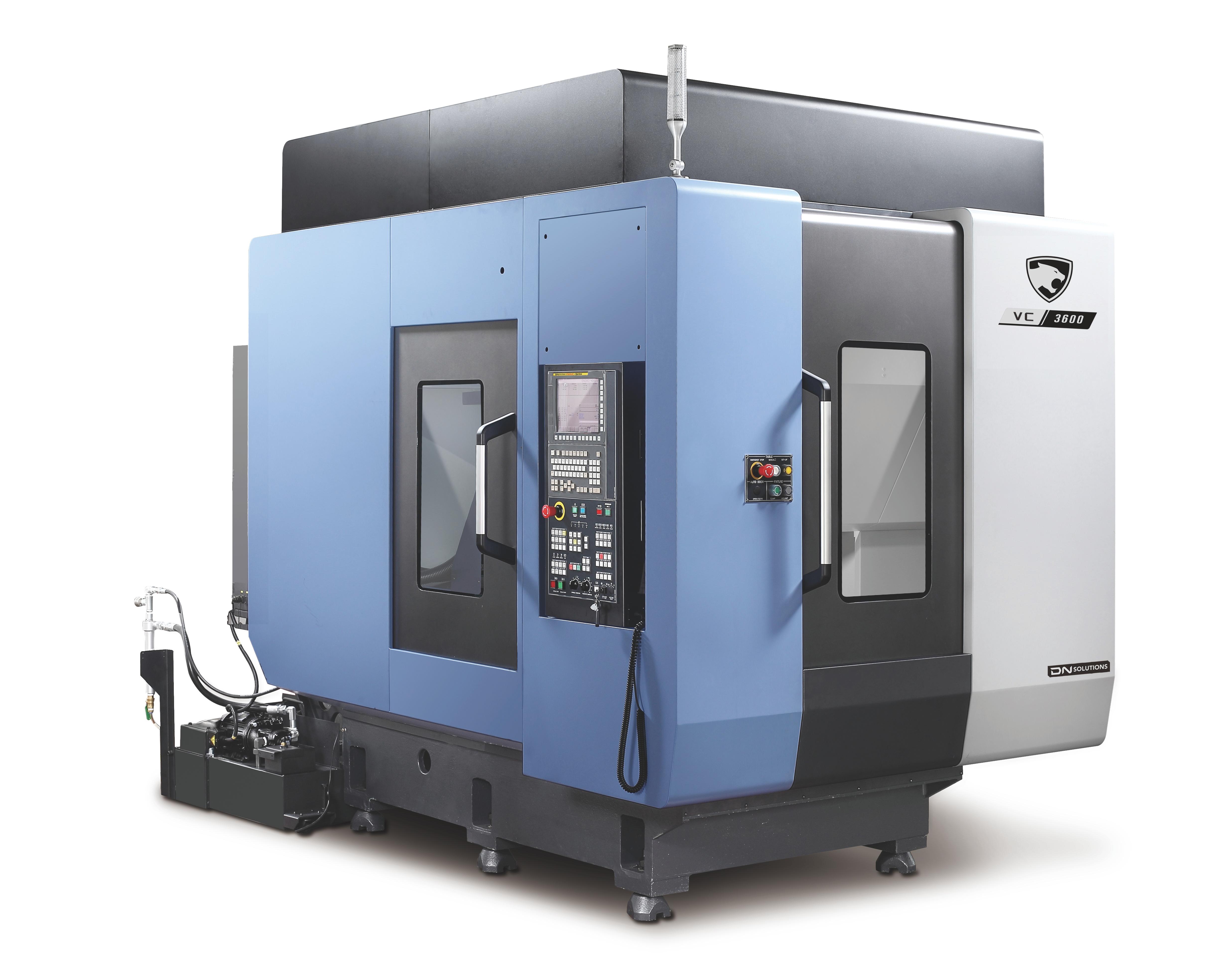

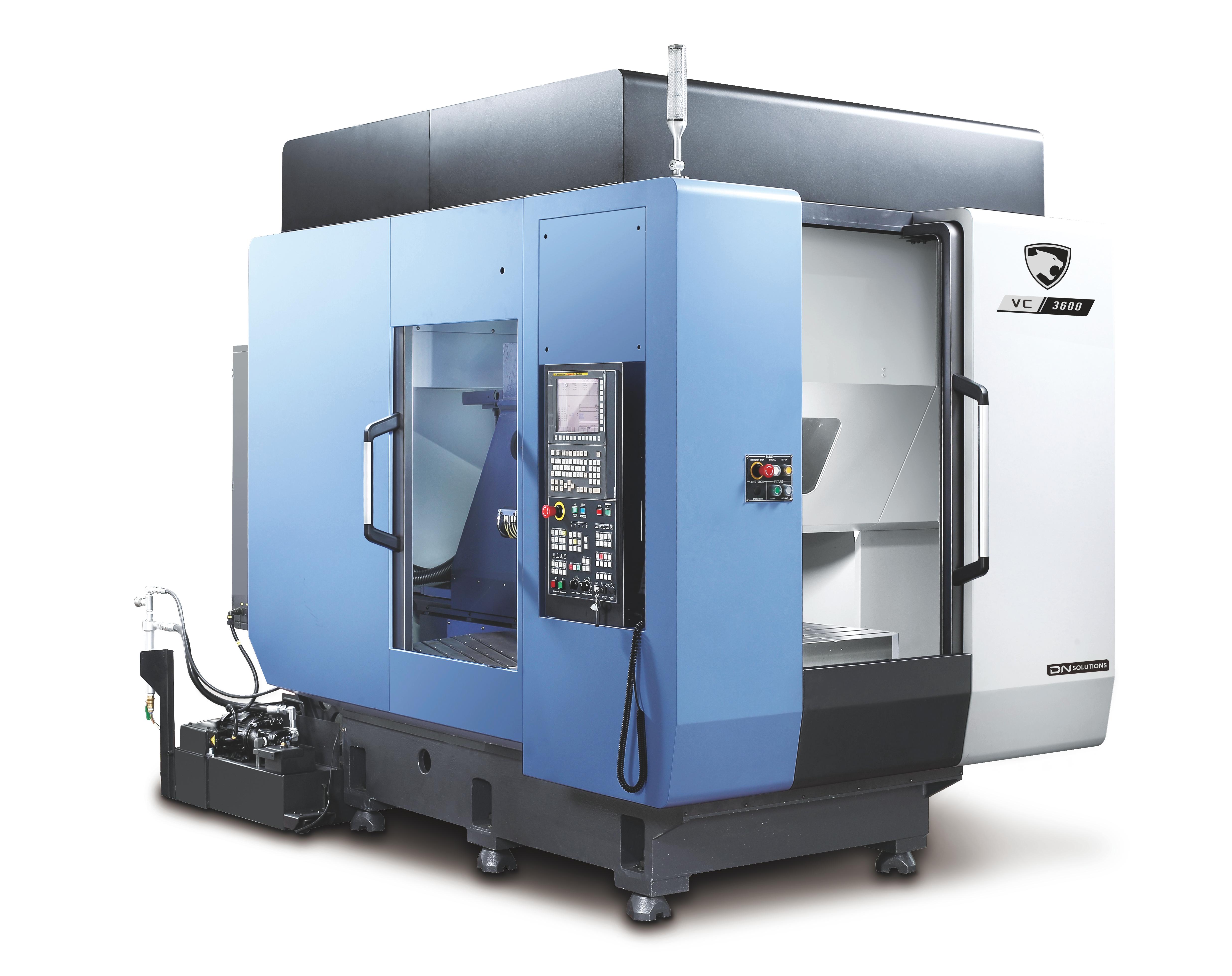

    VC 3600

    • Optimized Precision: The VC430/VC510 Series ensures high precision during extended operations with a moving column structure and powerful spindle.
    • Maximized Productivity: Rapid workpiece changes with rotating pallets and simultaneous operation functions in the VC 3600 Series significantly boost efficiency.
    • Enhanced Durability: Both series feature robust frames and advanced servo units for improved reliability and consistent performance in demanding applications.

    Highlights

    • Travels - X Axis Travel distance (mm): 520
    • Travels - Y Axis Travel distance (mm): 360
    • Travels - Z Axis Travel distance (mm): 465

    Series description

    The VC430/VC510 Series twin table vertical machining centers are designed for high-precision operations over extended periods. Featuring a moving column structure, these machines maximize productivity through rapid workpiece changes with a rotating pallet and a powerful spindle.

    The VC 3600 Series is a compact, high-productivity vertical machining center tailored for the automotive and IT industries. It includes a simultaneous operation function, where the rotary table turns and all axes position simultaneously during tool changes. Enhanced durability and reliability are achieved through a more rigid frame and an advanced servo unit, making it ideal for demanding production environments.

    Travels

    Travels - X Axis Travel distance (mm) 520
    Travels - Y Axis Travel distance (mm) 360
    Travels - Z Axis Travel distance (mm) 465
    Travels - Z Axis Rapid Traverse (m/min) 48

    Feed rates

    Feed rate - X Axis Rapid Traverse 48
    Feed rate - Y Axis Rapid Traverse 48

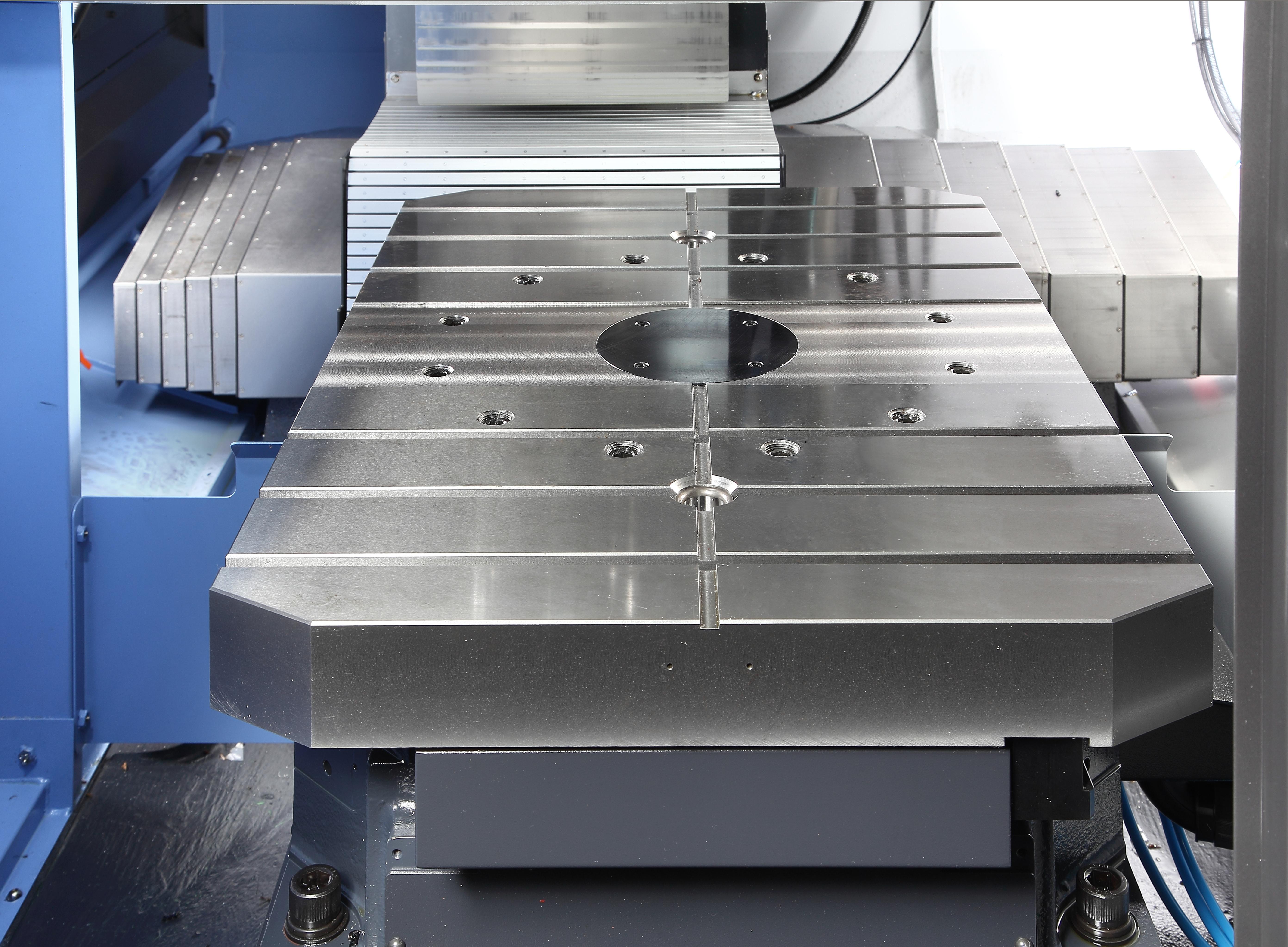

    Table

    Table Length (mm) 650
    Table Width (mm) 375
    Max. Workpiece weight (kg) 200
    Pallet Size (mm) 2x 650x375
    Max. Table weight (kg) 200

    Workpiece capacity

    Max. Workpiece Height (mm) 300
    Max. Workpiece weight (kg) 200

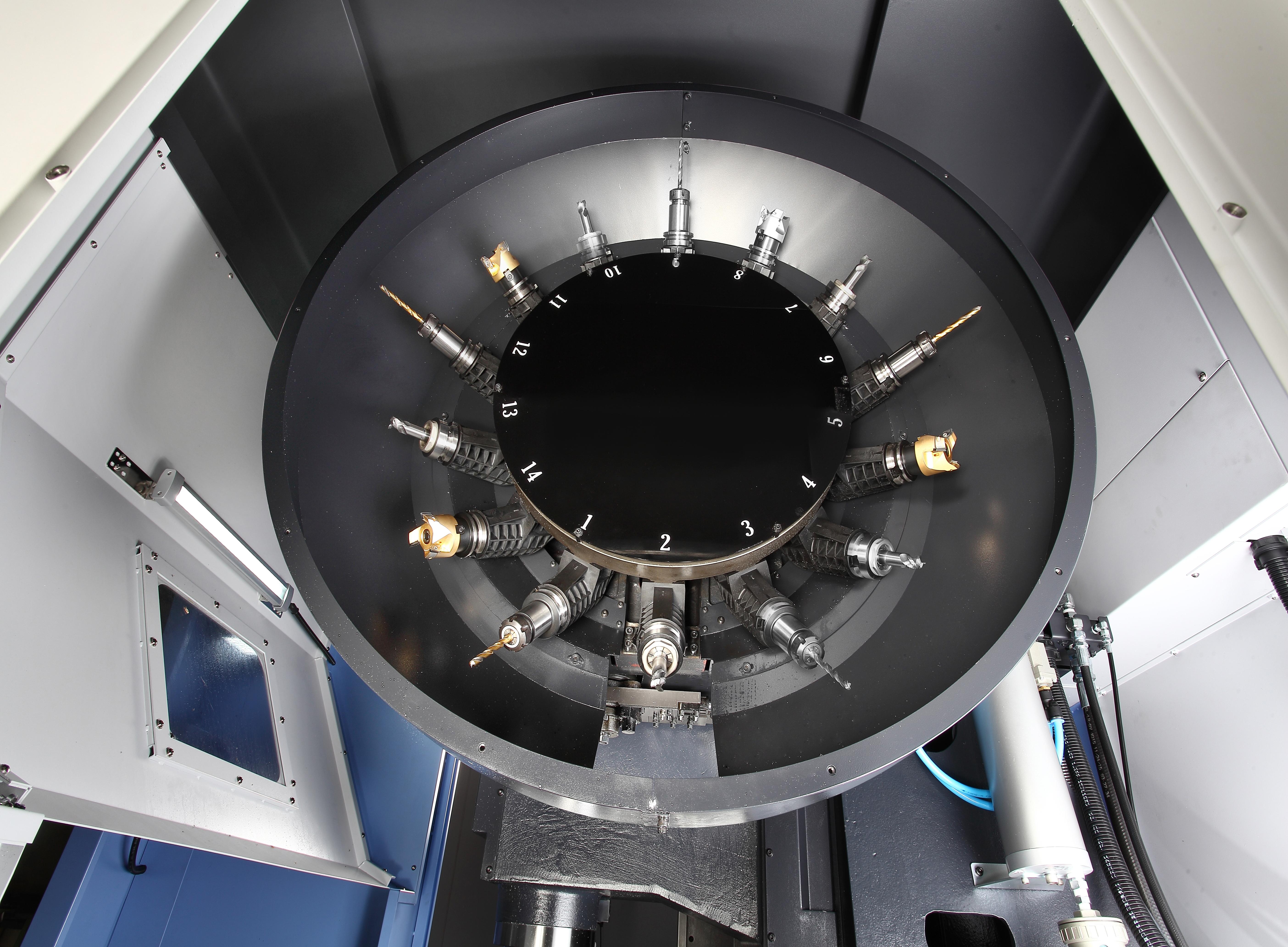

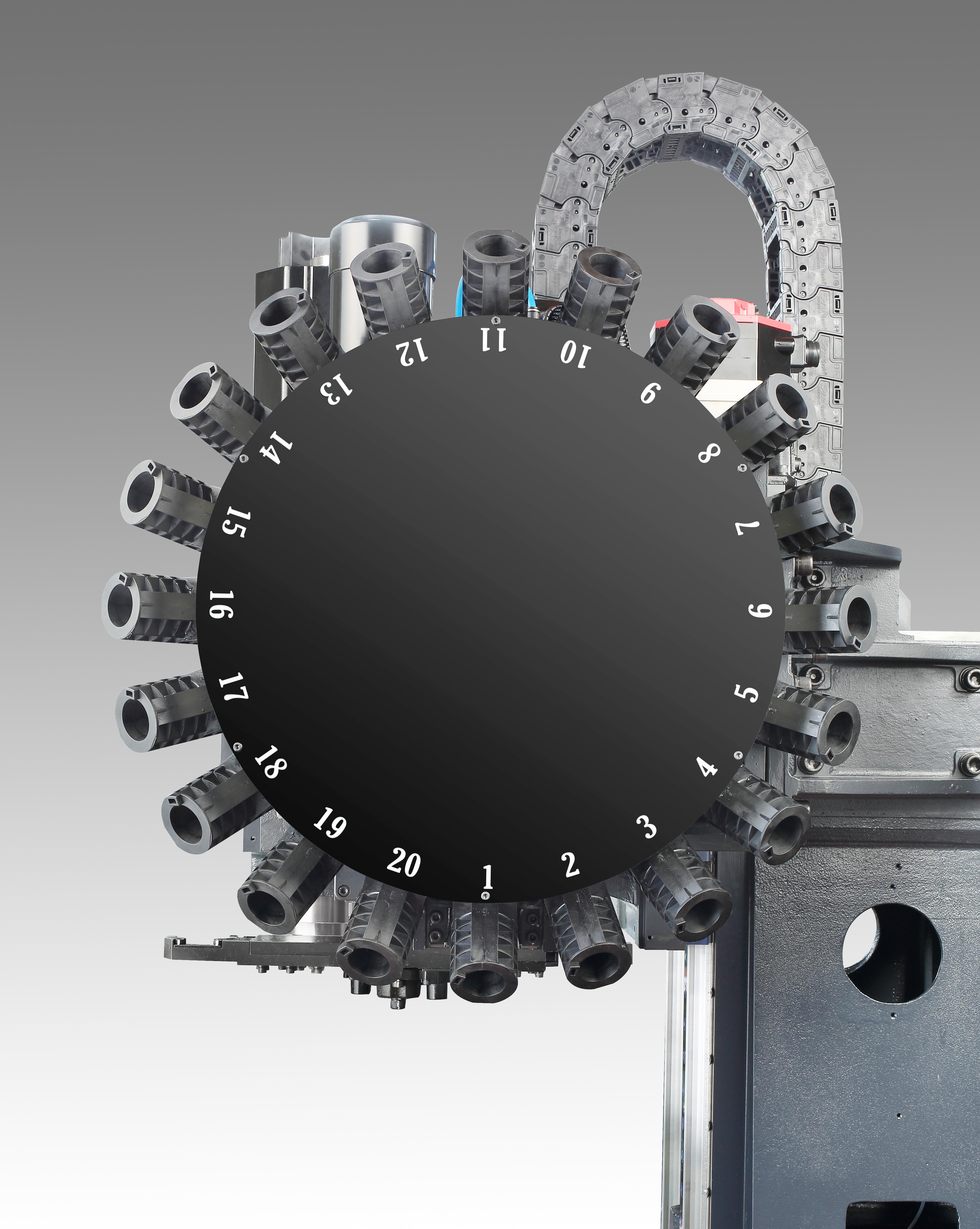

    Tool storage capacity

    Machining center - No. of tool station 20

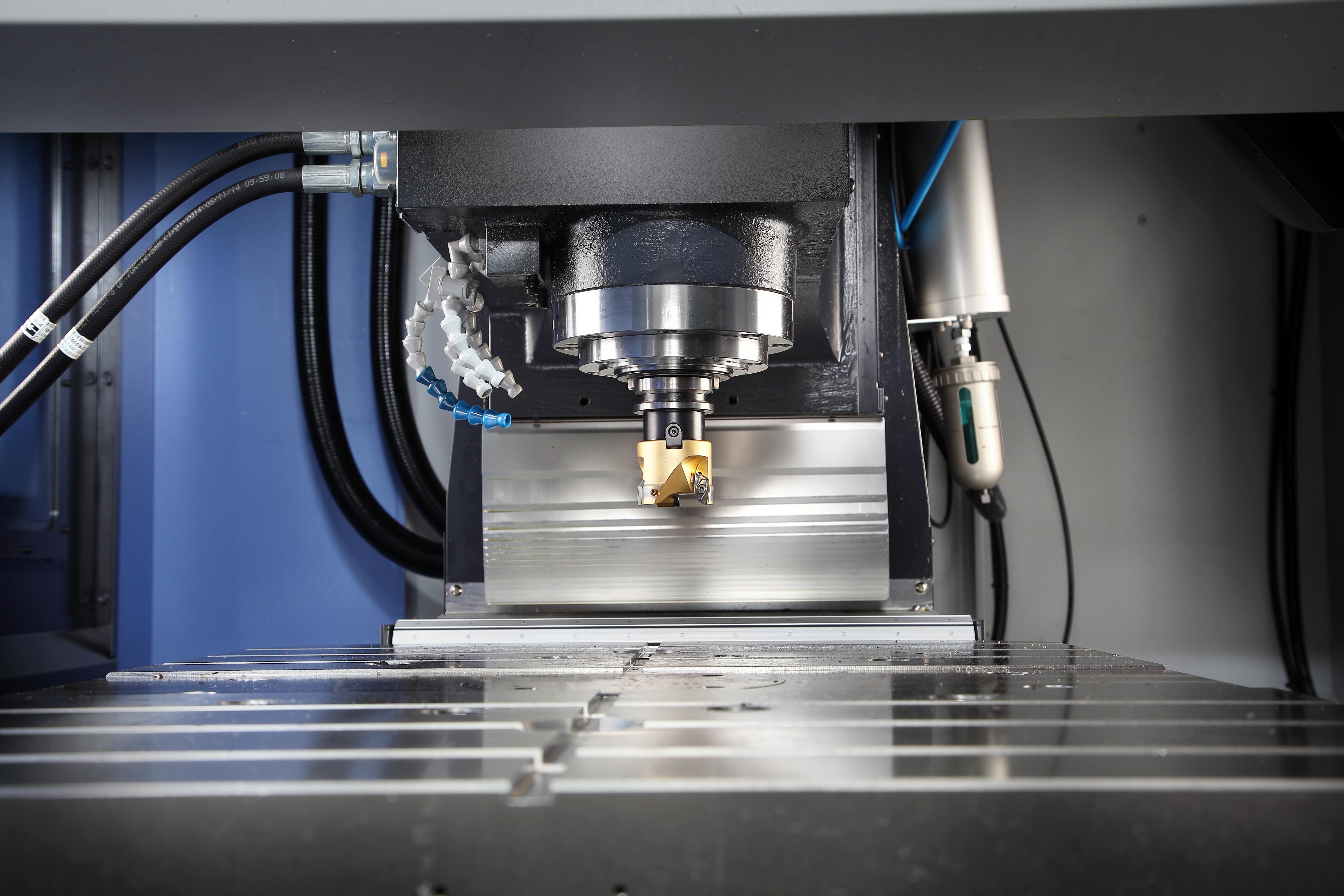

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 95
    Tool Taper (ISO) BT40

    Turret

    Turret - No. of tool station 20

    Dimensions

    Length (mm) 3660
    Height (mm) 2690
    Width (mm) 2010
    Weight (kg) 5400
