DBM 3060

  • Robust Machining Power: Designed for heavy-duty operations, ideal for large parts and precision dies and molds.
  • Advanced Capabilities: Equipped with top-class technical specifications, offering extensive machining functions.
  • Enhanced Productivity: Maximizes efficiency and performance, supporting improved operational outcomes.

Highlights

  • Travels - X Axis Travel distance (mm): 6250
  • Travels - Y Axis Travel distance (mm): 3500
  • Travels - Z Axis Travel distance (mm): 800/1100

Control System

    Fanuc

Series description

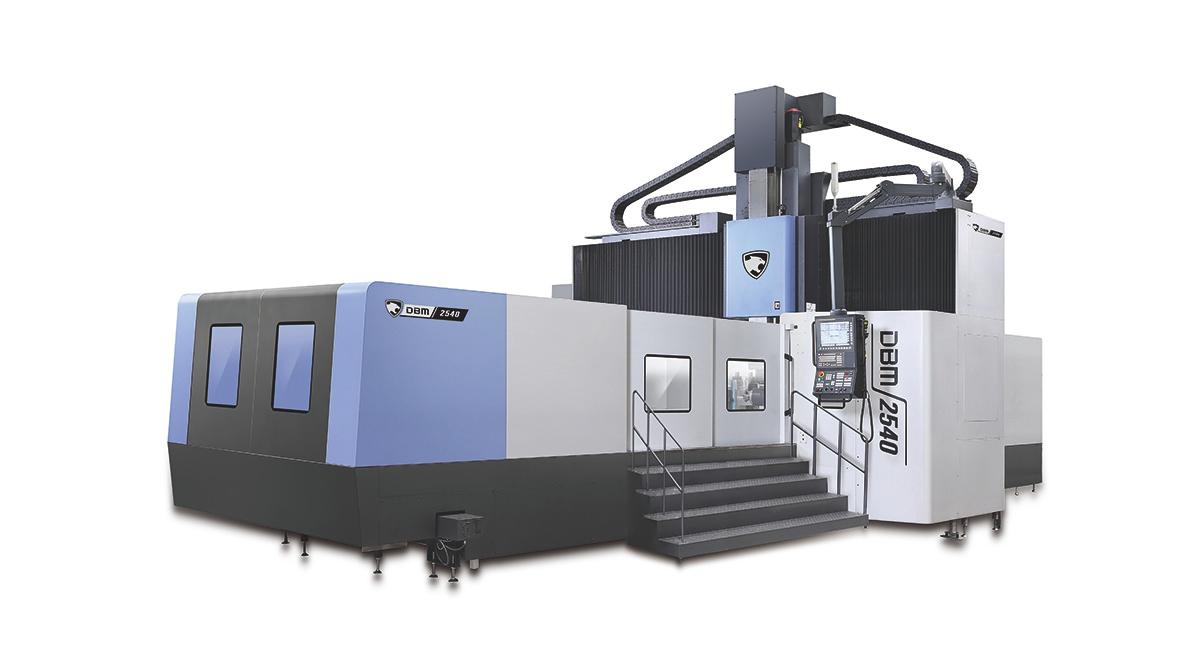

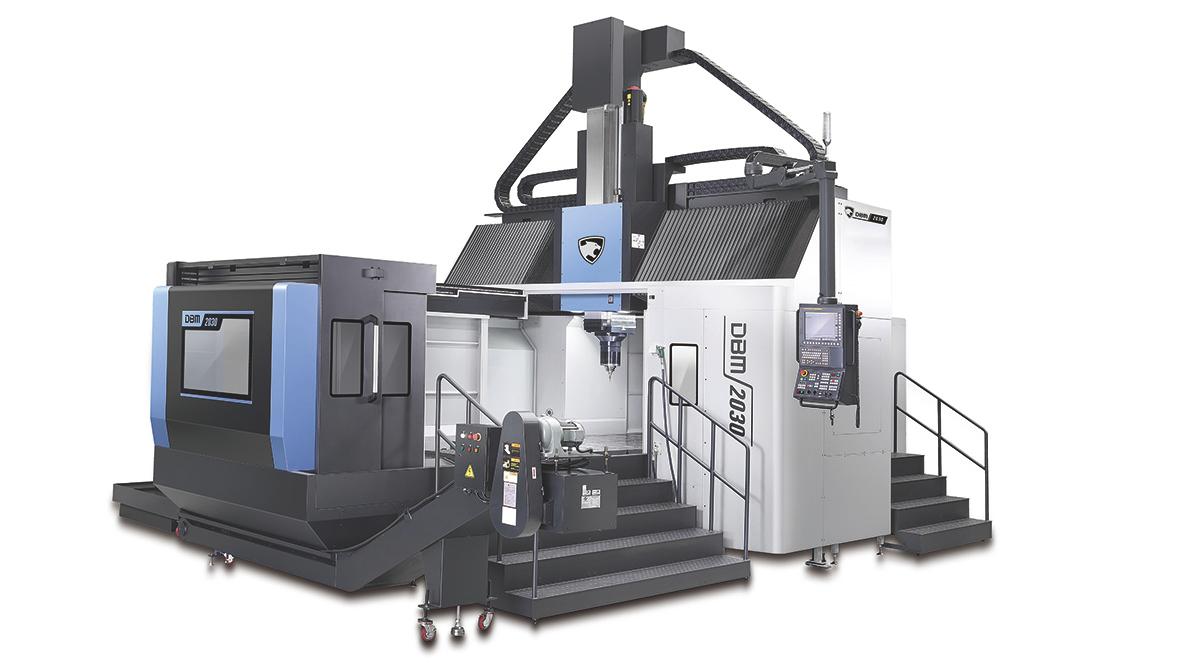

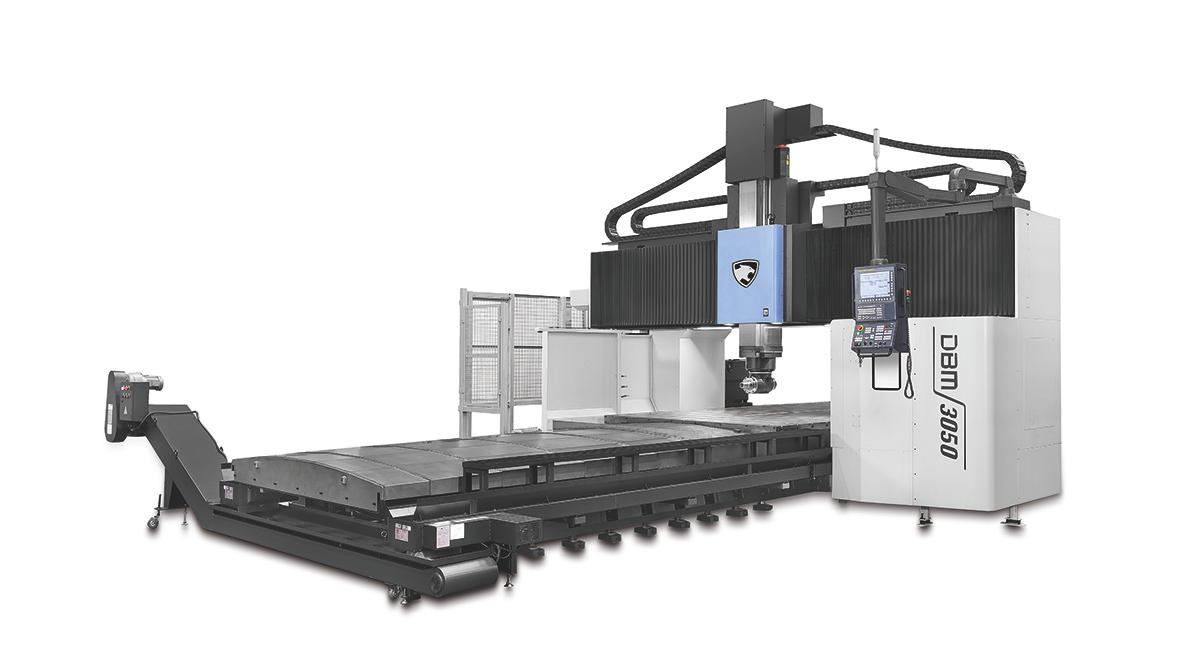

The DBM Series consists of large, multi-purpose double column machining centers engineered for heavy-duty machining of large parts and high-precision dies and molds. Boasting top-tier technical specifications within its class, the DBM Series offers a wide range of machining capabilities, enabling customers to enhance their productivity and overall performance.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

Travels

Travels - X Axis Travel distance (mm) 6250
Travels - Y Axis Travel distance (mm) 3500
Travels - Z Axis Travel distance (mm) 800/1100

Feed rates

Feed rate - X Axis Rapid Traverse 20
Feed rate - Y Axis Rapid Traverse 20
Feed rate - Z Axis Rapid Traverse 15

Table

Table Length (mm) 6000
Table Width (mm) 2500
Max. Workpiece weight (kg) 32000
Max. Table weight (kg) 32000

Workpiece capacity

Max. Workpiece weight (kg) 32000

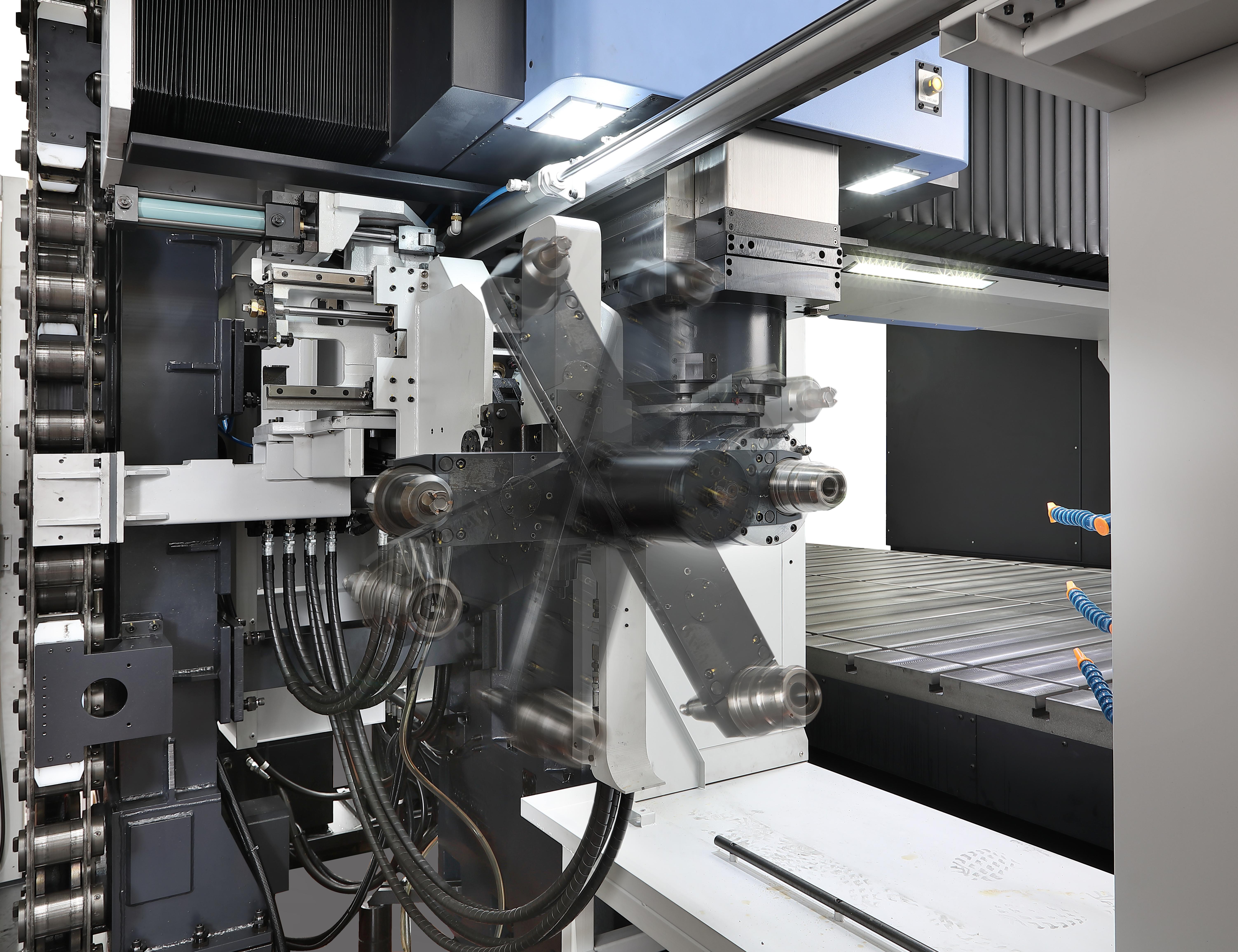

Tool storage capacity

Machining center - No. of tool station 40/60/90/120

Capacity

Table to spindle nose 1000/1300

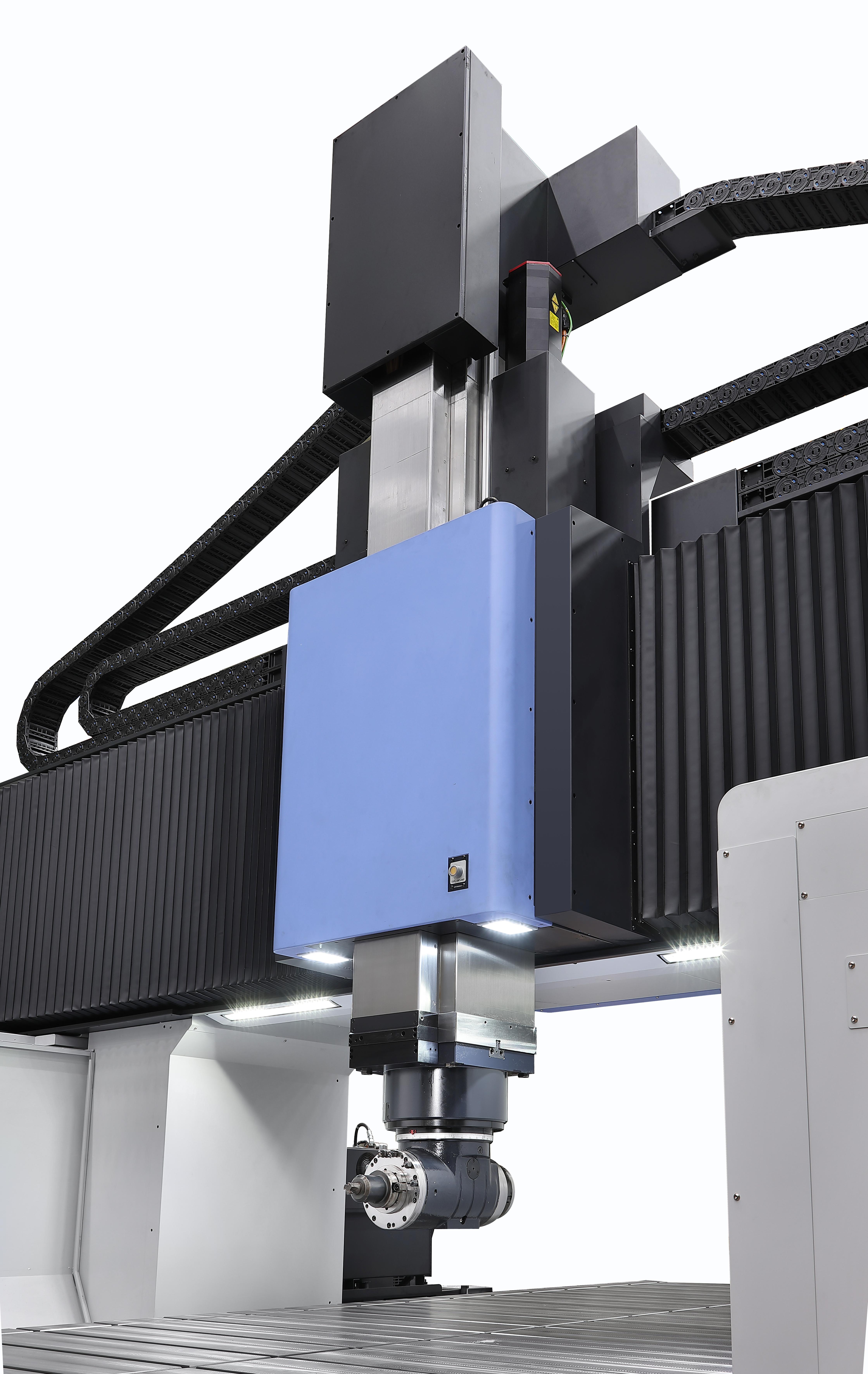

Main spindle

Tool Taper (ISO) 50

Dimensions

Length (mm) 15900
Height (mm) 5100/5700
Width (mm) 8600
Weight (kg) 55000
  Name Download File type
DBM 3060
DBM U.pdf 4293 KB
.pdf
DBM 3060
DBM.pdf 6603 KB
.pdf

The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
