Spirit

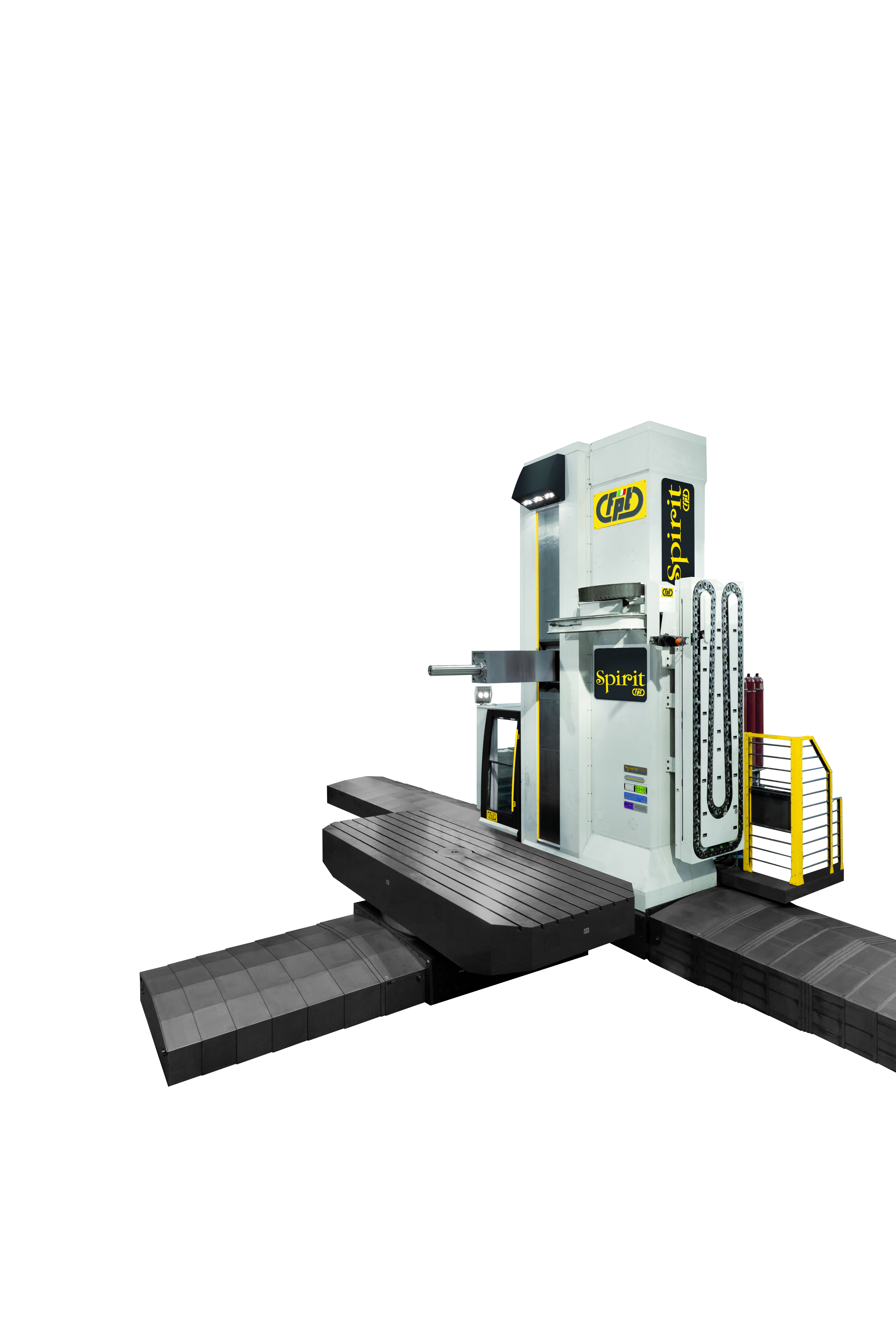

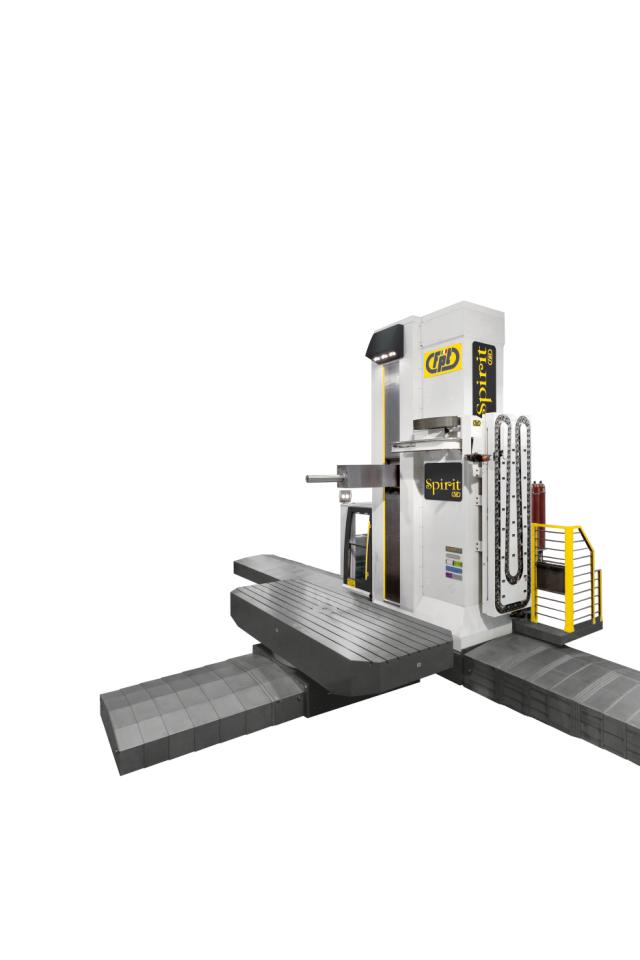

Horizontal Boring Machine

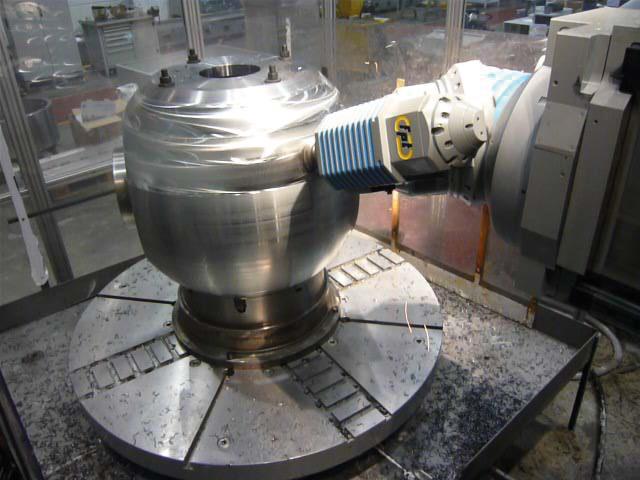

- Multi-Axis Machining Flexibility: The TUPC head allows facing and drilling at any tilted direction.
- Automated Head Switching: Ensures seamless transition between machining operations.
- Built for Heavy-Duty Use: Structured for high-performance stability in industrial applications.
Highlights
- Travels - X Axis Travel distance (mm): 6000
- Travels - Y Axis Travel distance (mm): 2000
- Travels - Z Axis Travel distance (mm): 10000
Series description
|
The Spirit series is a modern and future-oriented line of horizontal boring machines, designed for critical applications in energy, heavy-duty machining, and shipbuilding. Much like Spirit 100, it supports a broad selection of milling heads, including the TUPC for adjustable tool-axis machining, and features an automatic head changer—offering flexibility, precision, and automation for complex machining workflows. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 6000 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 2000 |
| Travels - Z Axis Travel distance (mm) | 10000 |
| Travels - X Axis Rapid Traverse (m/min) | 25 |
| Travels - Y Axis Rapid Traverse (m/min) | 25 |
| Travels - Z Axis Rapid Traverse (m/min) | 25 |
| Name | Download | File type | |
|---|---|---|---|
|
SPIRIT.pdf | 6873 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
