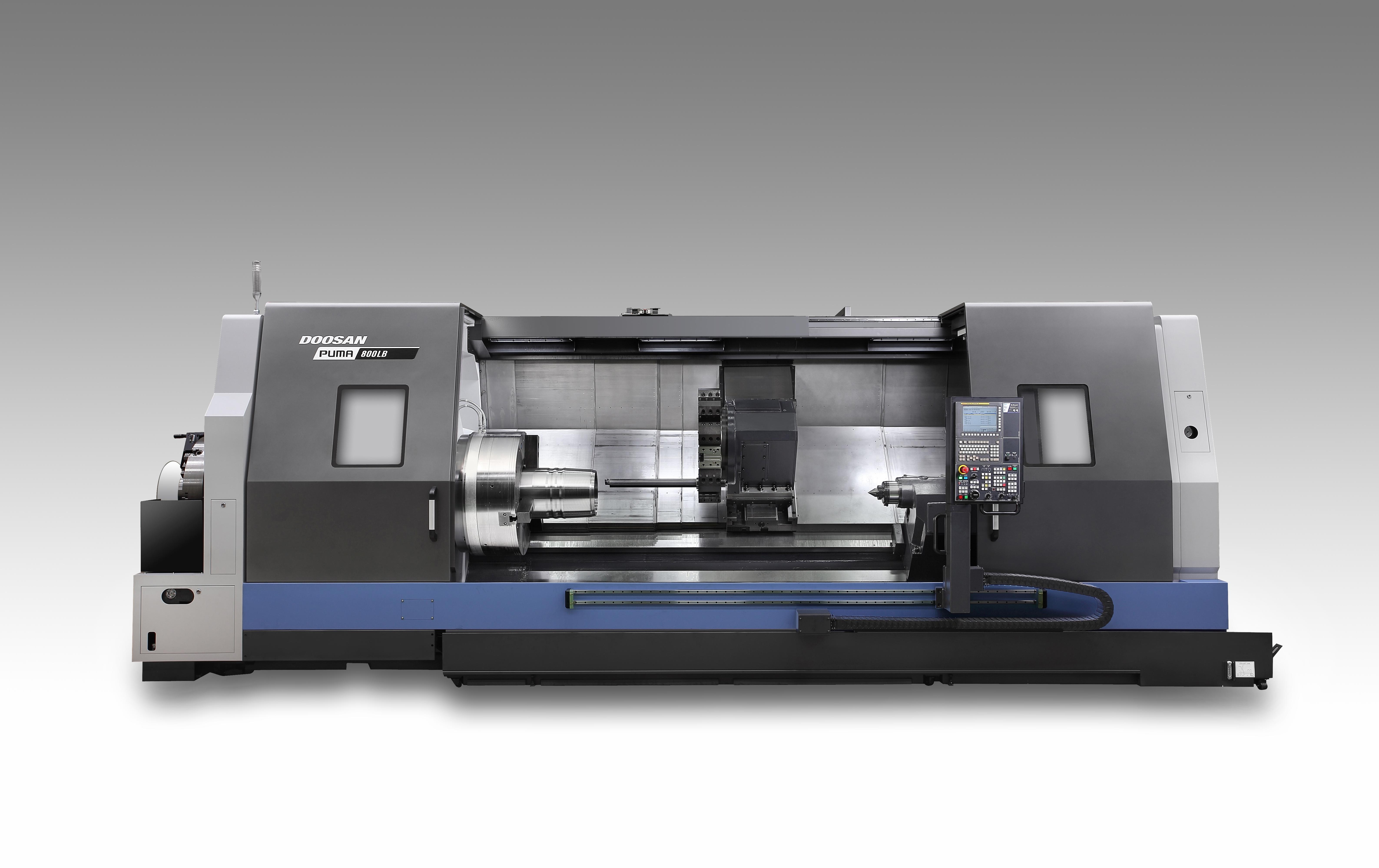

    PUMA 800B II

    • Large Capacity: Capable of handling workpieces with diameters up to Ø900mm and lengths up to 5050mm, accommodating the largest components in their class.
    • Versatile Applications: Ideal for producing critical components across multiple industries, including oil and gas, construction, aerospace, and shipbuilding.
    • Efficient Chip Management: The slant bed design ensures smooth chip disposal, improving machine uptime and operator convenience.

    Highlights

    • Travels - X Axis Travel distance (mm): 470
    • Travels - Z Axis Travel distance (mm): 1650
    • Chuck size (mm): 800
    • Max. Turning Diameter (mm): 900
    • Max. Turning Length (mm): 1600

    Series description

    The PUMA 600/700/800 II series are large horizontal turning centers designed for machining substantial workpieces, such as pipes, valves, and flanges used in the oil and gas industry, hydraulic components for construction equipment, and complex parts for the aerospace and shipbuilding sectors. These machines offer impressive maximum turning diameters of Ø900mm (35.4 inches) and lengths up to 5050mm (198.8 inches), making them leaders in their class. The slant bed design facilitates efficient chip disposal, enhancing overall machining performance and convenience.

    Travels

    Travels - X Axis Travel distance (mm) 470
    Travels - Z Axis Travel distance (mm) 1650
    Travels - X Axis Rapid Traverse (m/min) 12
    Travels - Z Axis Rapid Traverse (m/min) 16

    Tool storage capacity

    Machining center - No. of tool station 12

    Capacity

    Chuck size (mm) 800
    Max. Turning Diameter (mm) 900
    Max. Turning Length (mm) 1600
    Bar Capacity (mm) 365

    Main spindle

    Main Spindle Max. Speed 750
    Main Spindle Max. Power 55
    Main Spindle Max. Torque 8076

    Turret

    Turret - No. of tool station 12

    Dimensions

    Length (mm) 5756
    Height (mm) 2800
    Width (mm) 3160
    Weight (kg) 16500

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
