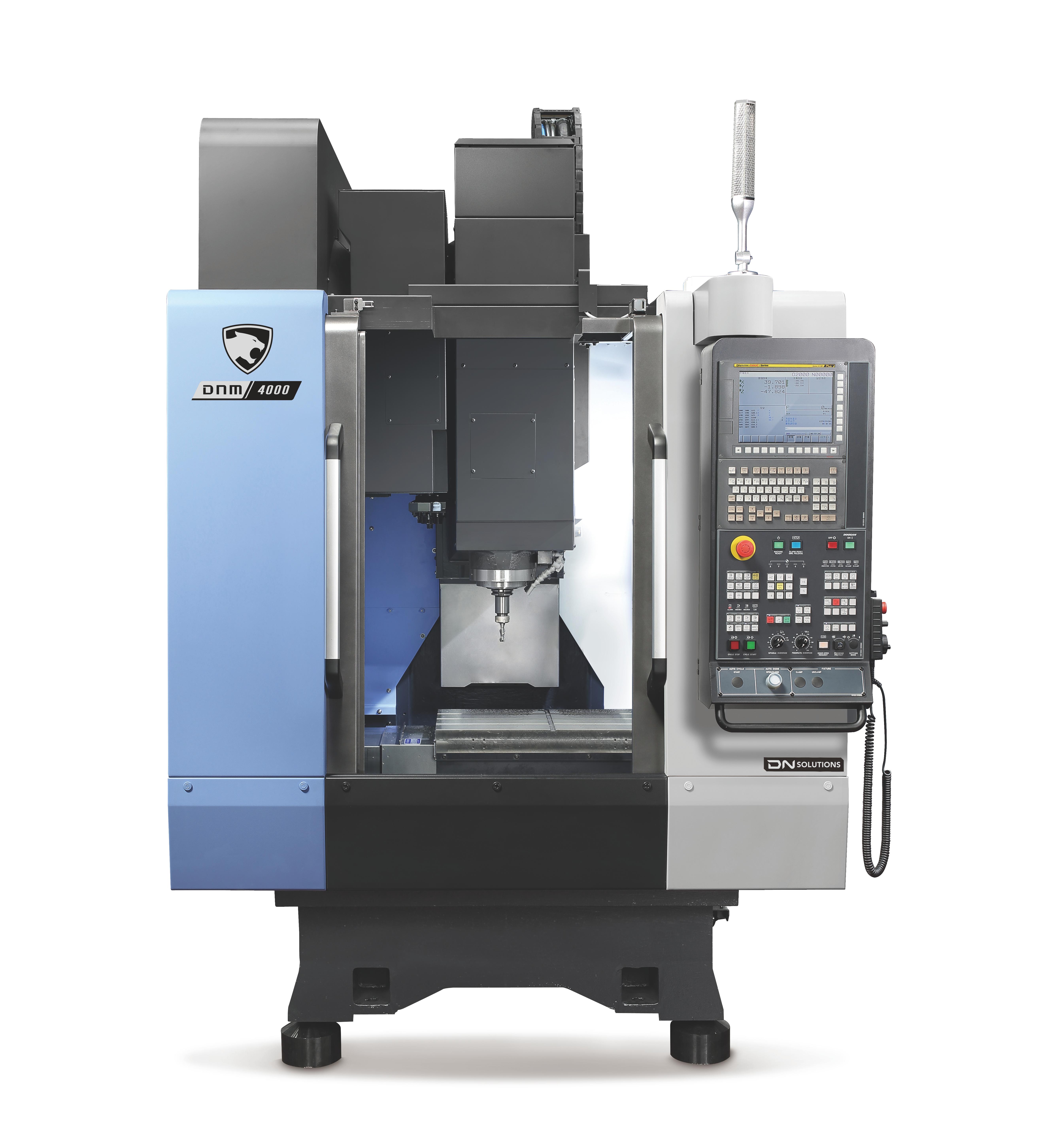

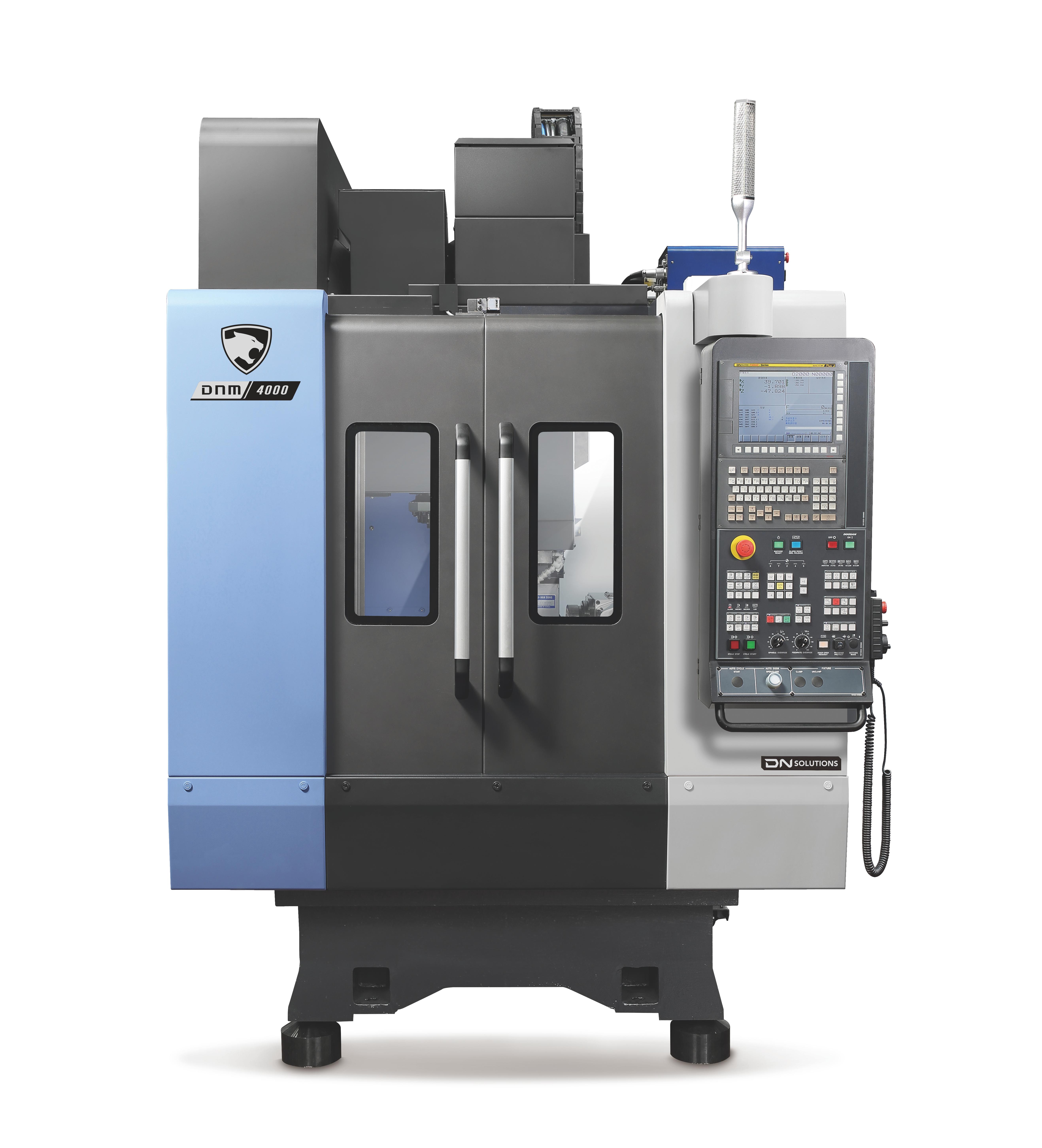

DNM 4000

  • Versatile Performance: High speed, rigidity, and adaptability make the DNM Series ideal for a wide range of machining applications.
  • Eco-Friendly Operation: Grease lubrication on roller guideways promotes sustainability while maintaining top performance.
  • Compact Efficiency: Models like the DNM 4000 maximize productivity in limited spaces, with features designed for operator ease and convenience.

Highlights

  • Travels - X Axis Travel distance (mm): 520
  • Travels - Y Axis Travel distance (mm): 400
  • Travels - Z Axis Travel distance (mm): 480

Control System

    Siemens

Series description

The DNM Series continues its legacy of success with enhanced reliability and performance in its latest models. Focused on high speed, high rigidity, and versatility, the DNM 4500/5000/6500 models cater to a wide range of machining applications. The series now features eco-friendly grease lubrication for roller guideways, ensuring sustainable operation. The compact DNM 4000, with a 400mm Y-axis stroke and directly-coupled 40 taper spindle, maximizes productivity in a minimized footprint, perfect for space-constrained environments. The DNM 50 II series further enhances performance with directly coupled spindles, rigid columns, and user-friendly Ez work functions for improved efficiency and ease of use.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

Travels

Travels - X Axis Travel distance (mm) 520
Travels - Y Axis Travel distance (mm) 400
Travels - Z Axis Travel distance (mm) 480
Travels - Z Axis Rapid Traverse (m/min) 48

Feed rates

Feed rate - X Axis Rapid Traverse 48
Feed rate - Y Axis Rapid Traverse 48
Feed rate - Z Axis Rapid Traverse 48

Table

Table Length (mm) 650
Table Width (mm) 400
Max. Workpiece weight (kg) 400

Workpiece capacity

Max. Workpiece Height (mm) 300
Max. Workpiece weight (kg) 400

Tool storage capacity

Machining center - No. of tool station 20

Main spindle

Main Spindle Max. Speed 12000
Main Spindle Max. Power 16.5
Main Spindle Max. Torque 141
Tool Taper (ISO) 40

Turret

Turret - No. of tool station 20

Dimensions

Length (mm) 2858
Height (mm) 2753
Width (mm) 1660
Weight (kg) 3300
