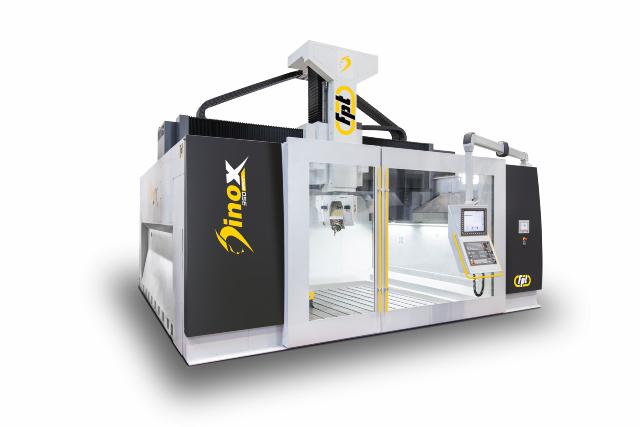

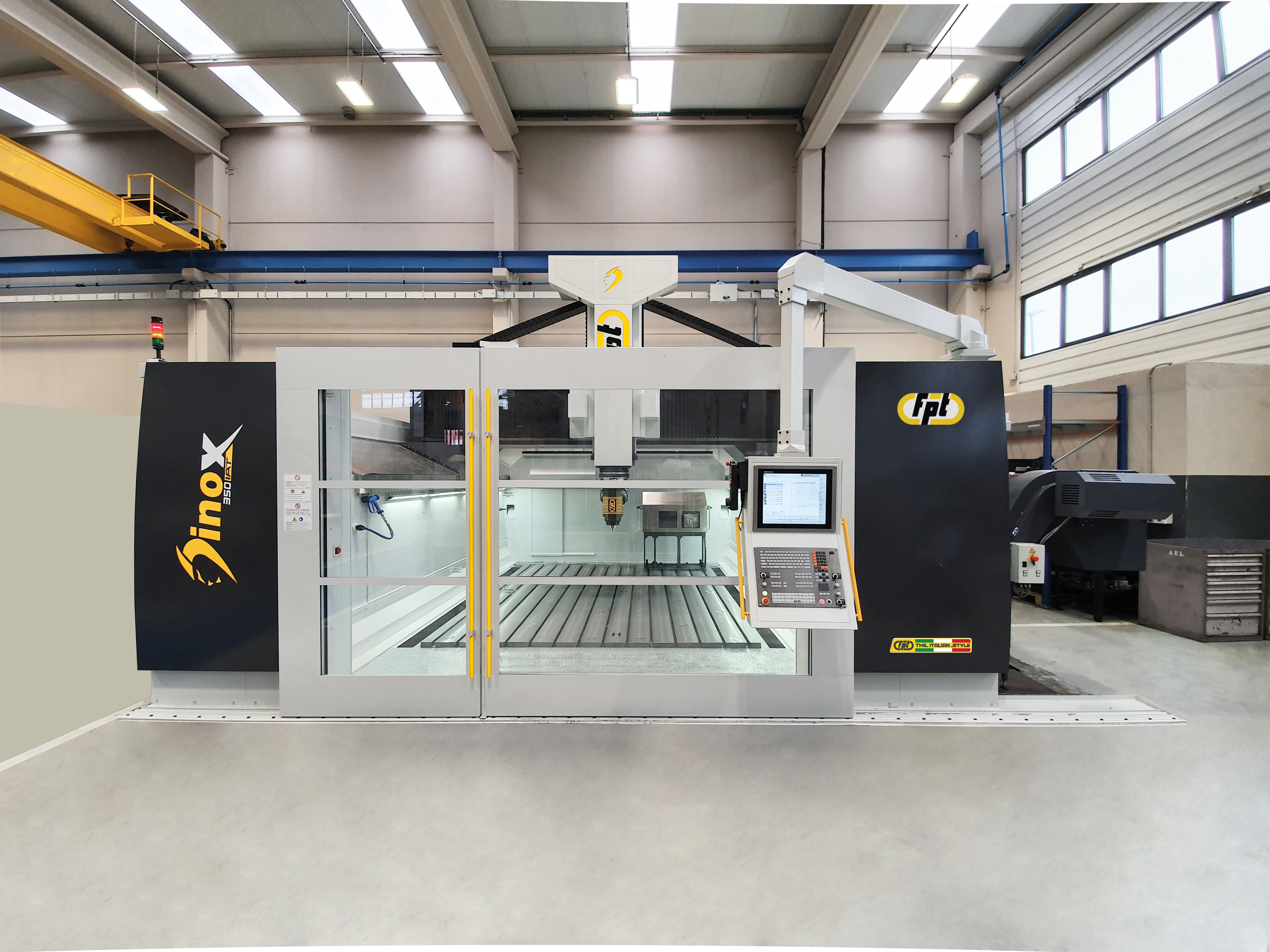

Dinox 350 IAT
- Robust Gantry Design for Large-Scale Machining: Single platform for heavy-duty and fine finishes.

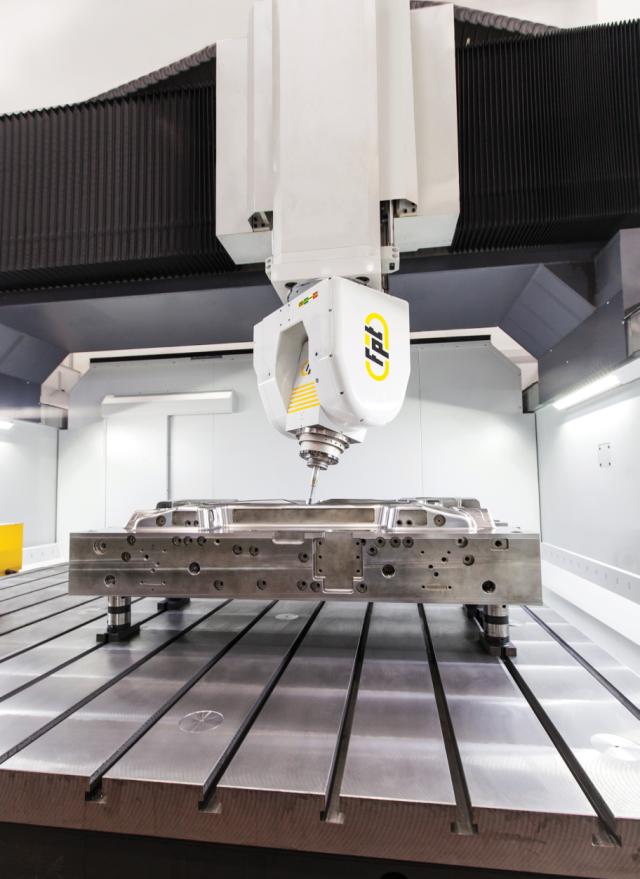

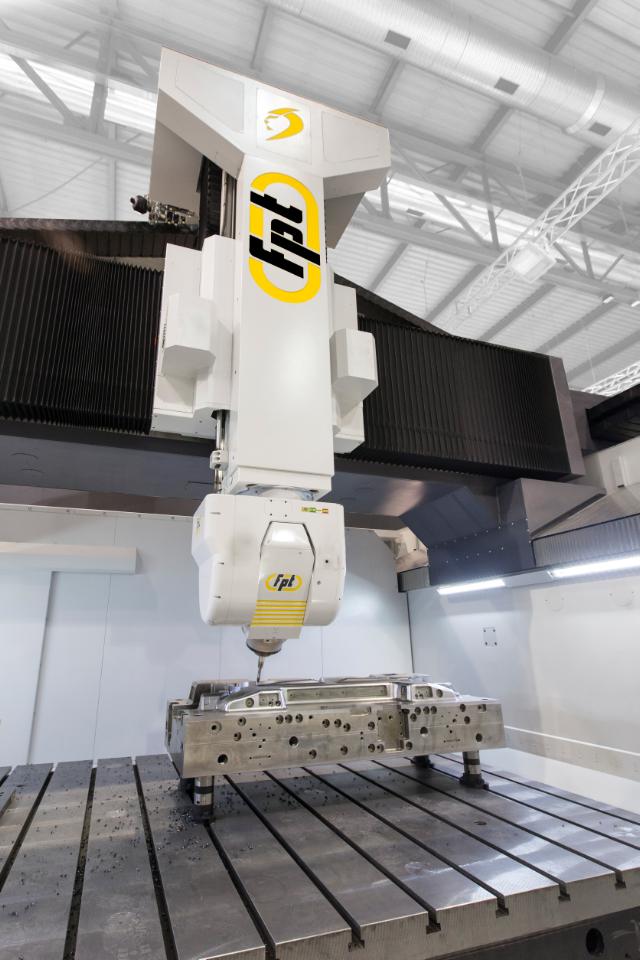

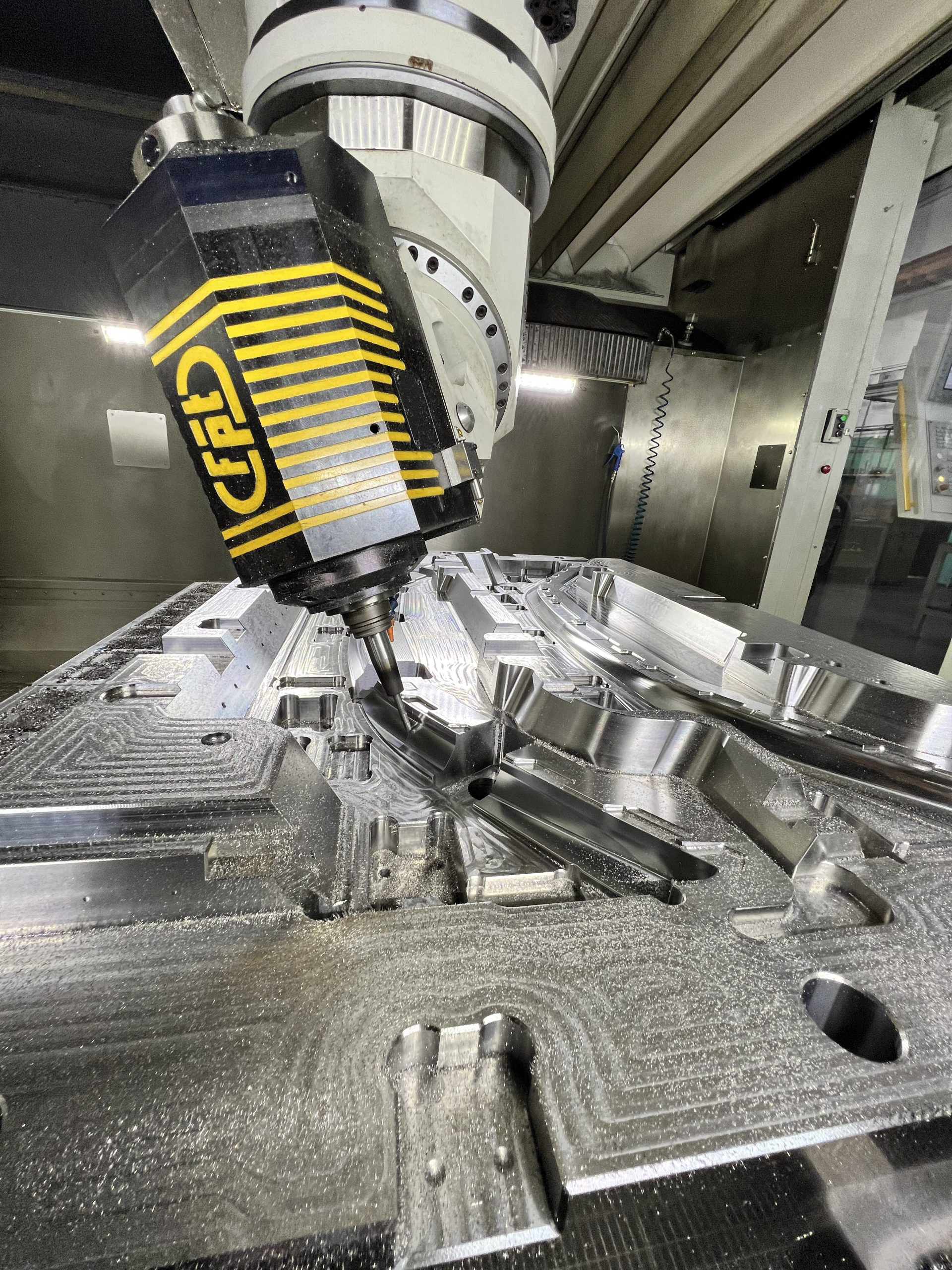

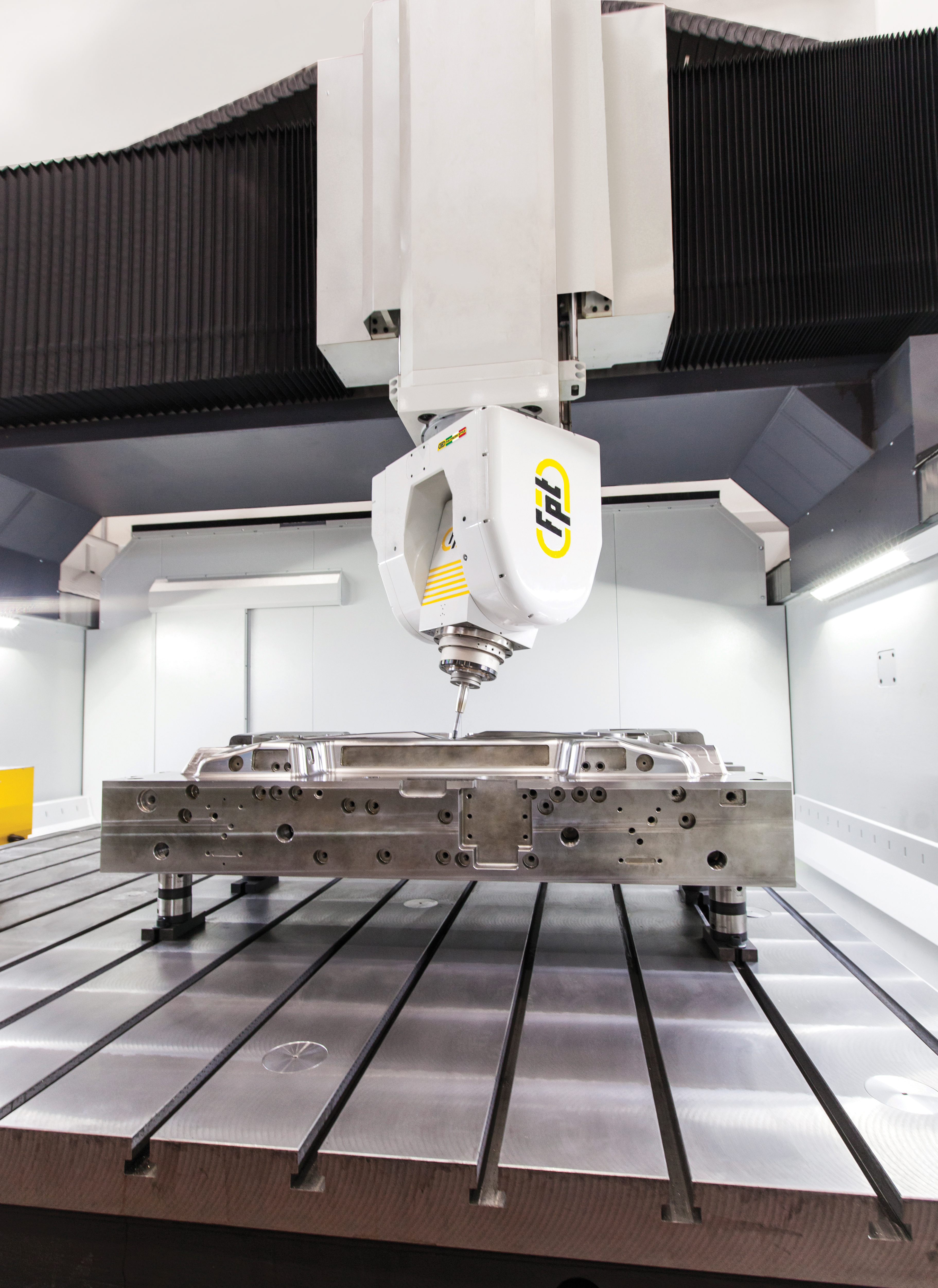

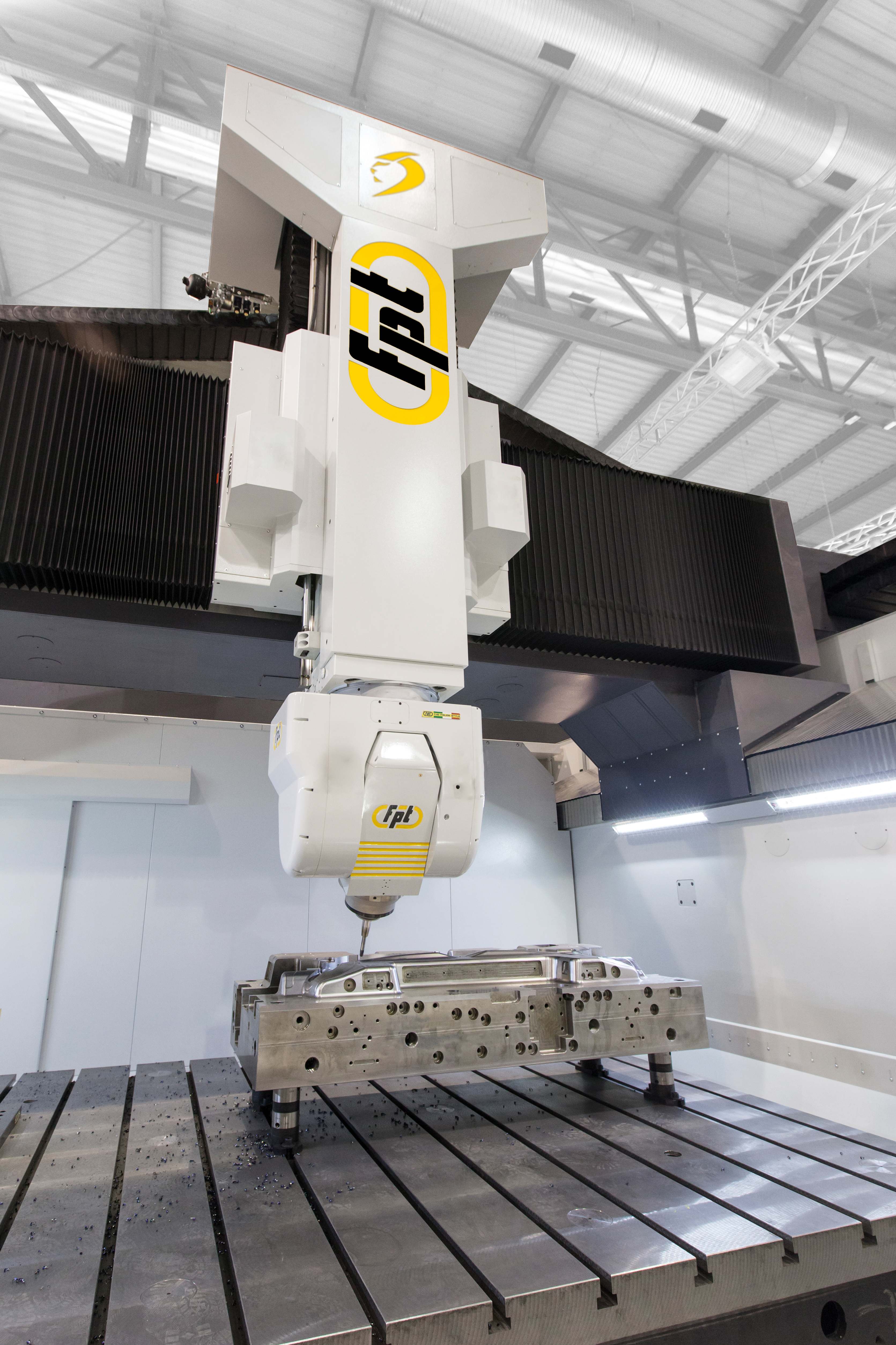

- High-Precision TULCE Milling Head: Fast and accurate positioning for complex geometries.
- Self-Calibrating System: Delivers consistent accuracy through precision control of machine geometry.
Highlights
- Travels - X Axis Travel distance (mm): 6000
- Travels - Y Axis Travel distance (mm): 3500
- Travels - Z Axis Travel distance (mm): 1500
Series description
|

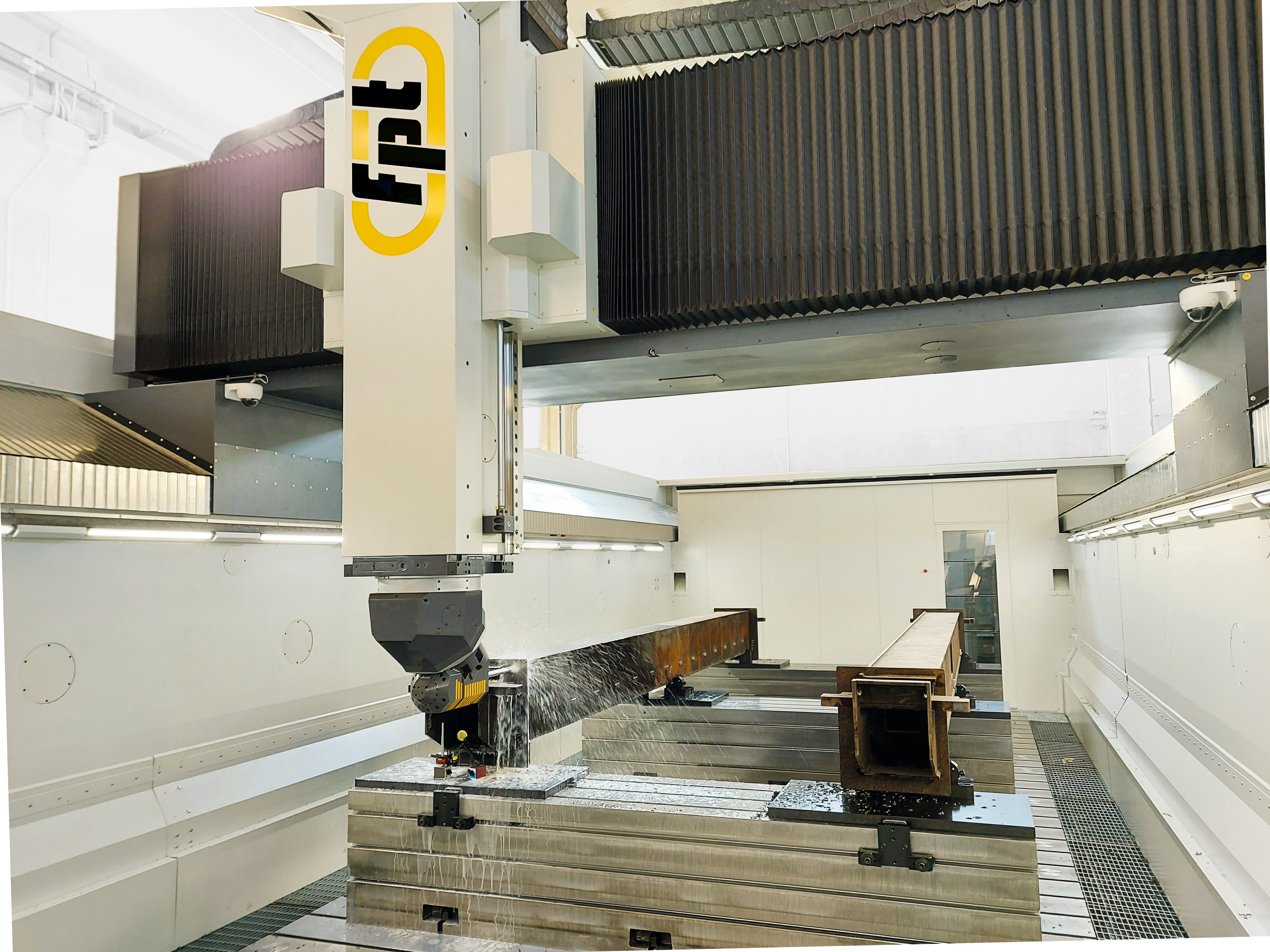

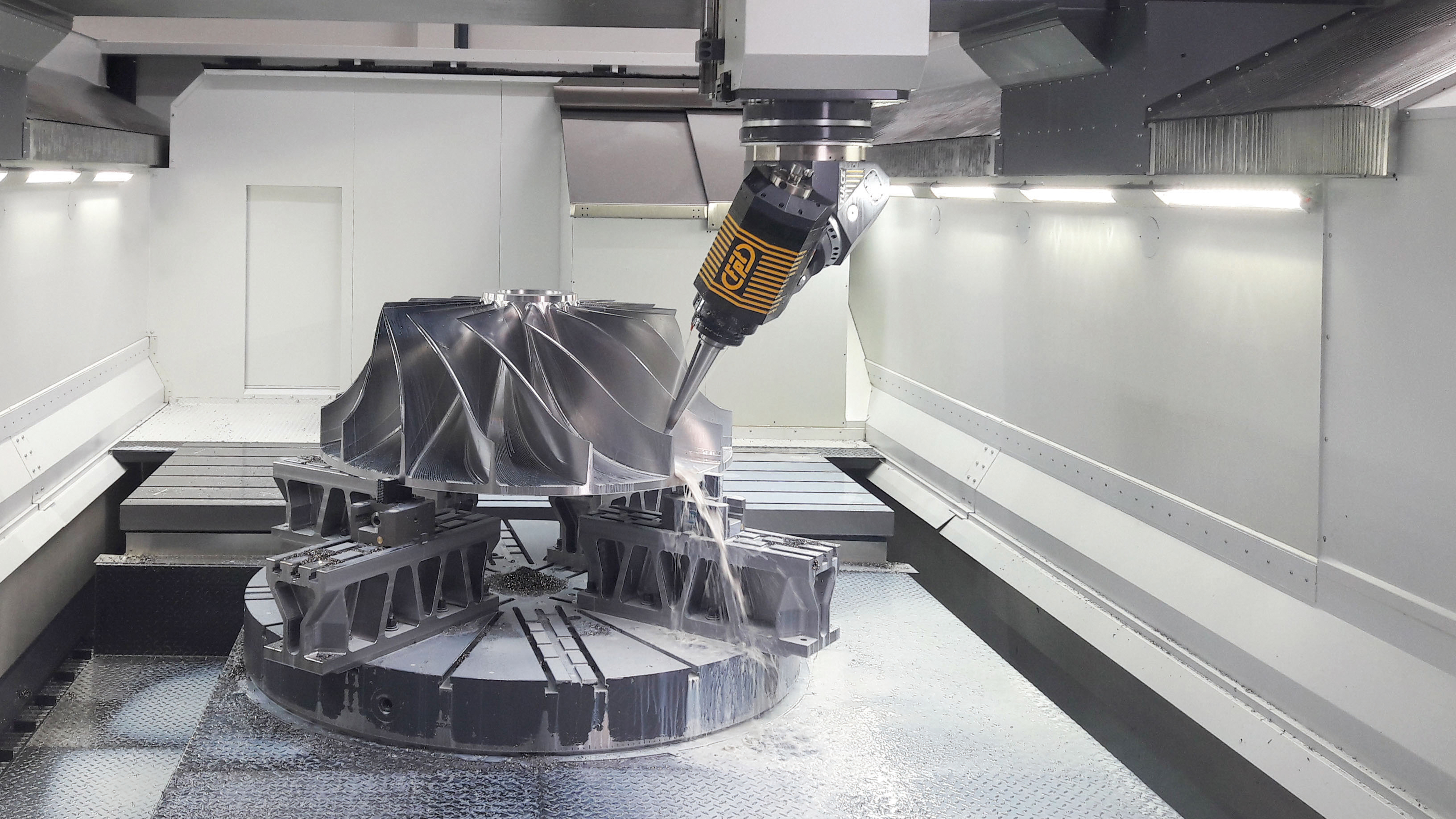

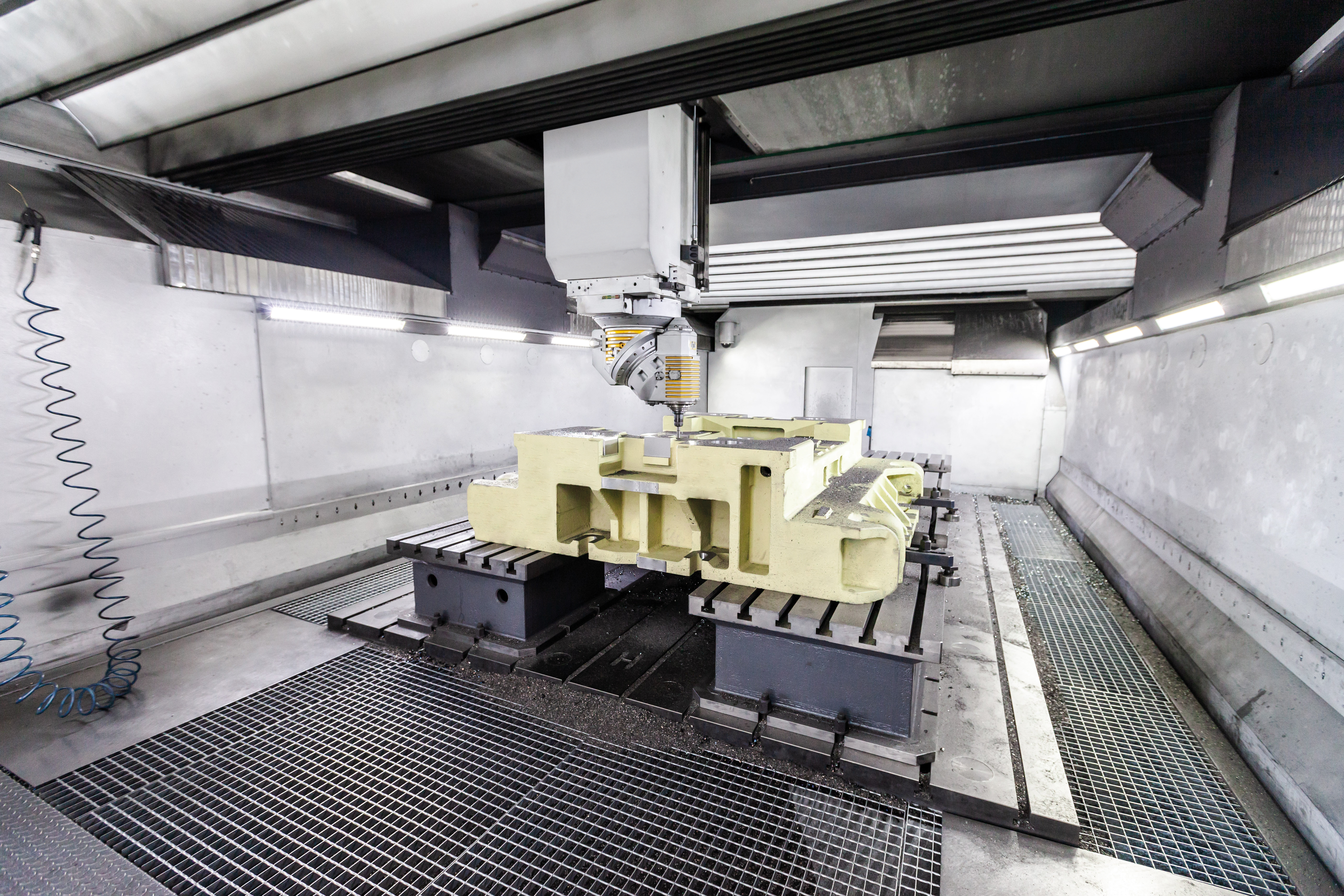

The Dinox 350 IAT shares the same advanced vertical gantry-style architecture, designed for heavy-duty machining as well as high-speed finishing. It also benefits from a compact, optimized configuration with floor-level installation. Featuring linear motor drives, dual guideways, and the same TULCE 5-axis direct-drive head that allows undercut up to 10°, this model is built for large-scale, high-accuracy operations. It includes the same stiffness and thermal expansion management technologies, along with an automated geometry recalibration system and continuous geometric control over milling heads. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 6000 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 3500 |
| Travels - Z Axis Travel distance (mm) | 1500 |
| Travels - X Axis Rapid Traverse (m/min) | 50 |
| Travels - Y Axis Rapid Traverse (m/min) | 50 |
| Travels - Z Axis Rapid Traverse (m/min) | 50 |
| Name | Download | File type | |
|---|---|---|---|
|
DINOX 350.pdf | 7915 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
