Dinox 220 IAT
- Integrated Gantry Architecture: Ensures rigidity for both roughing and fine finishing.

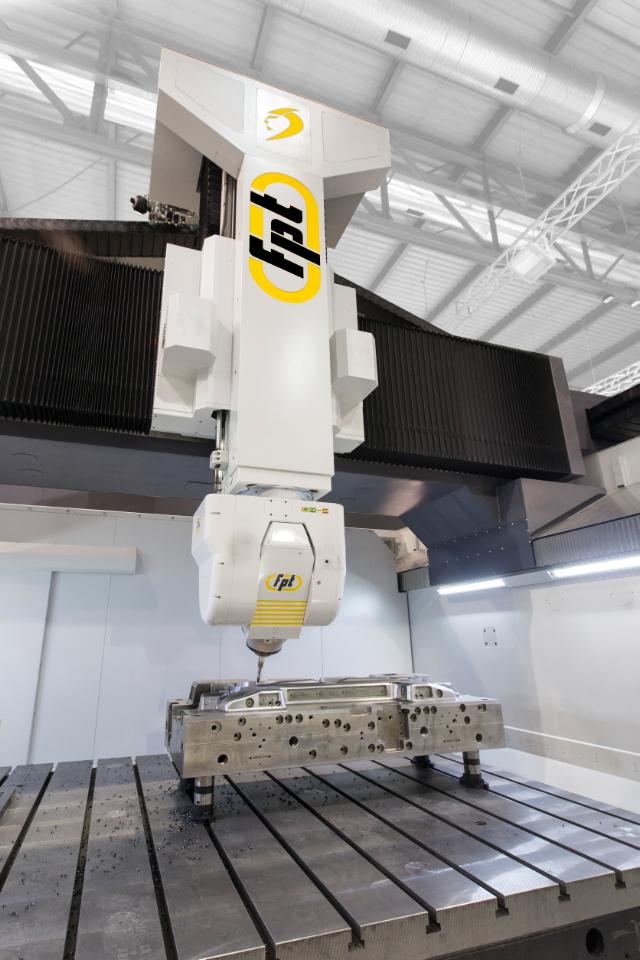

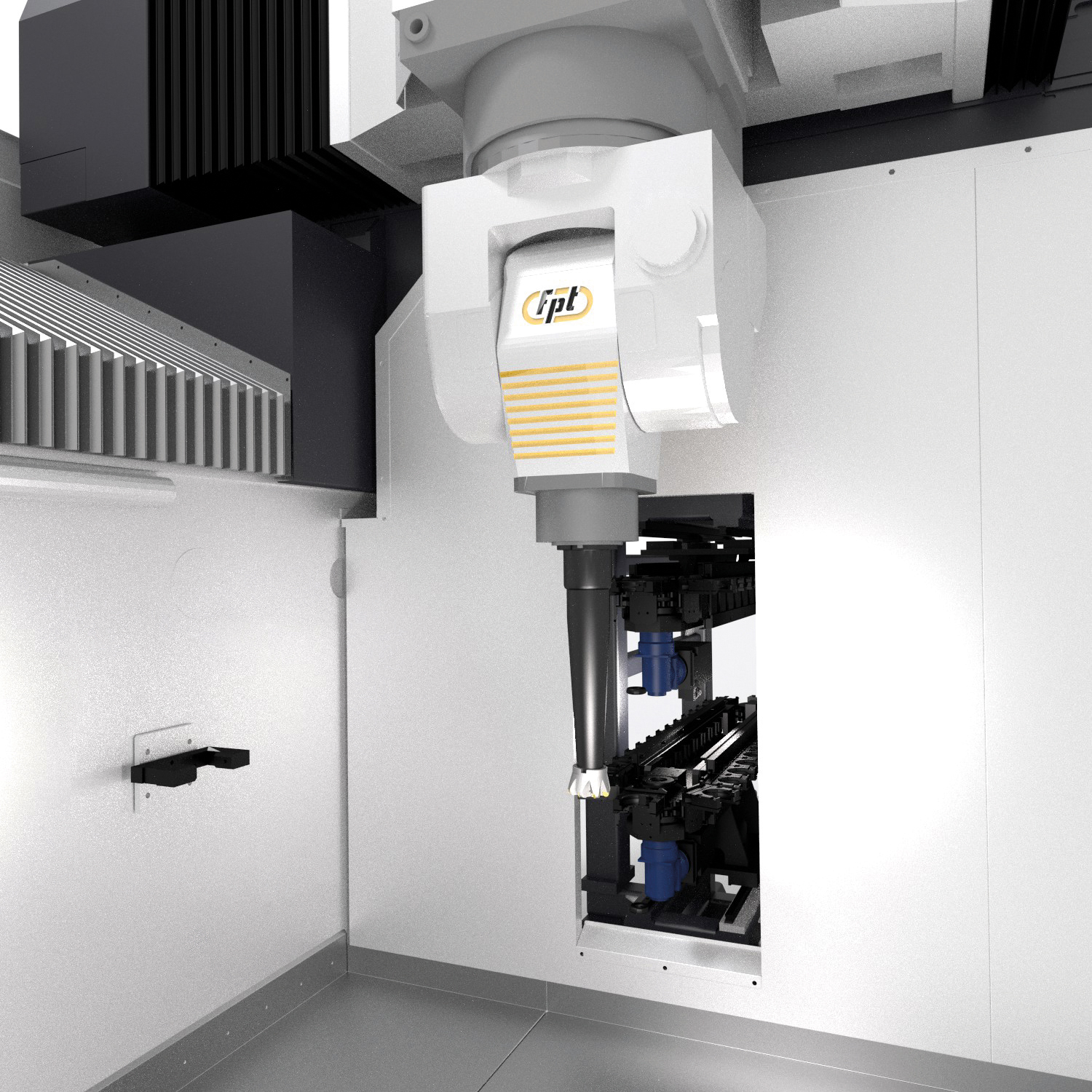

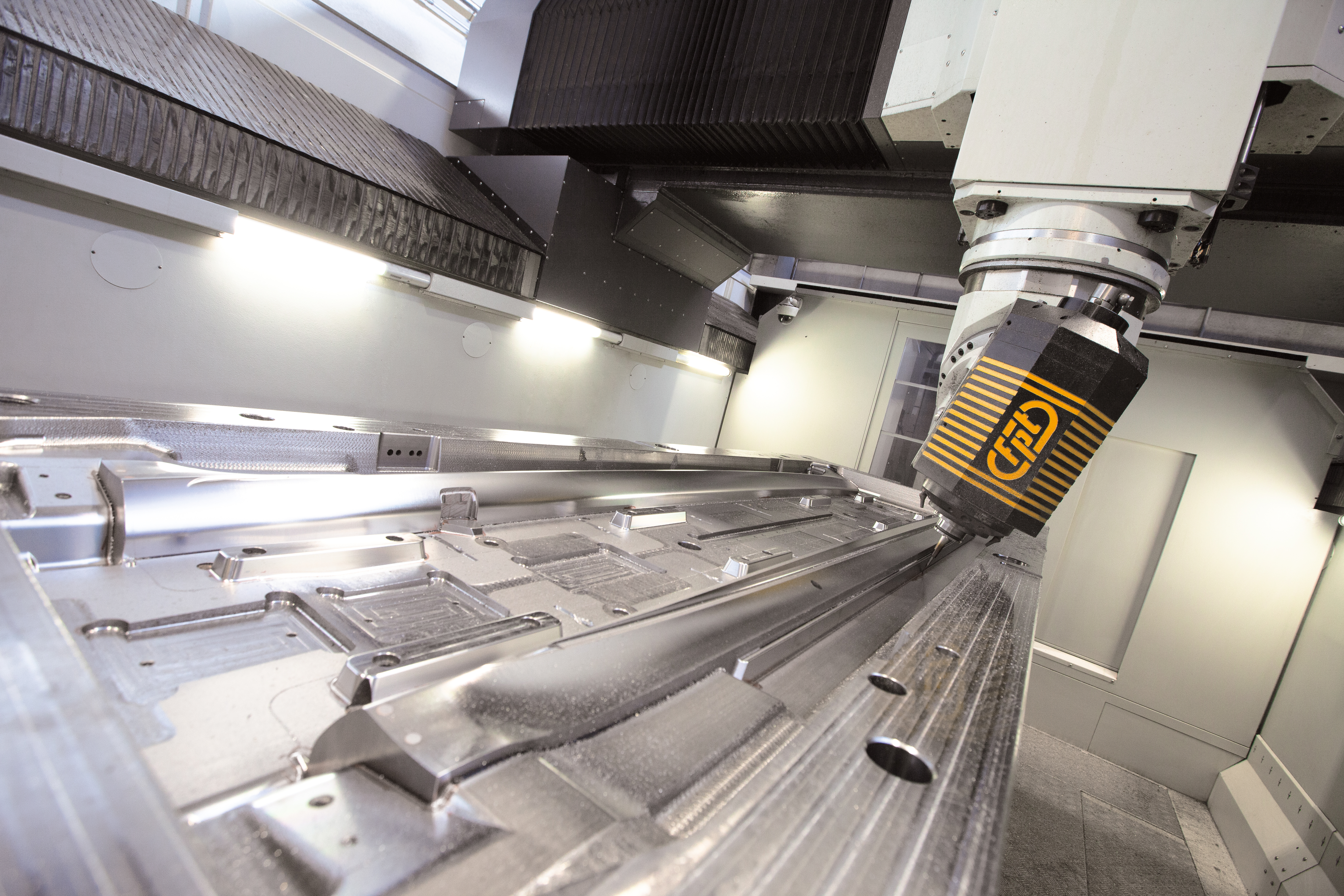

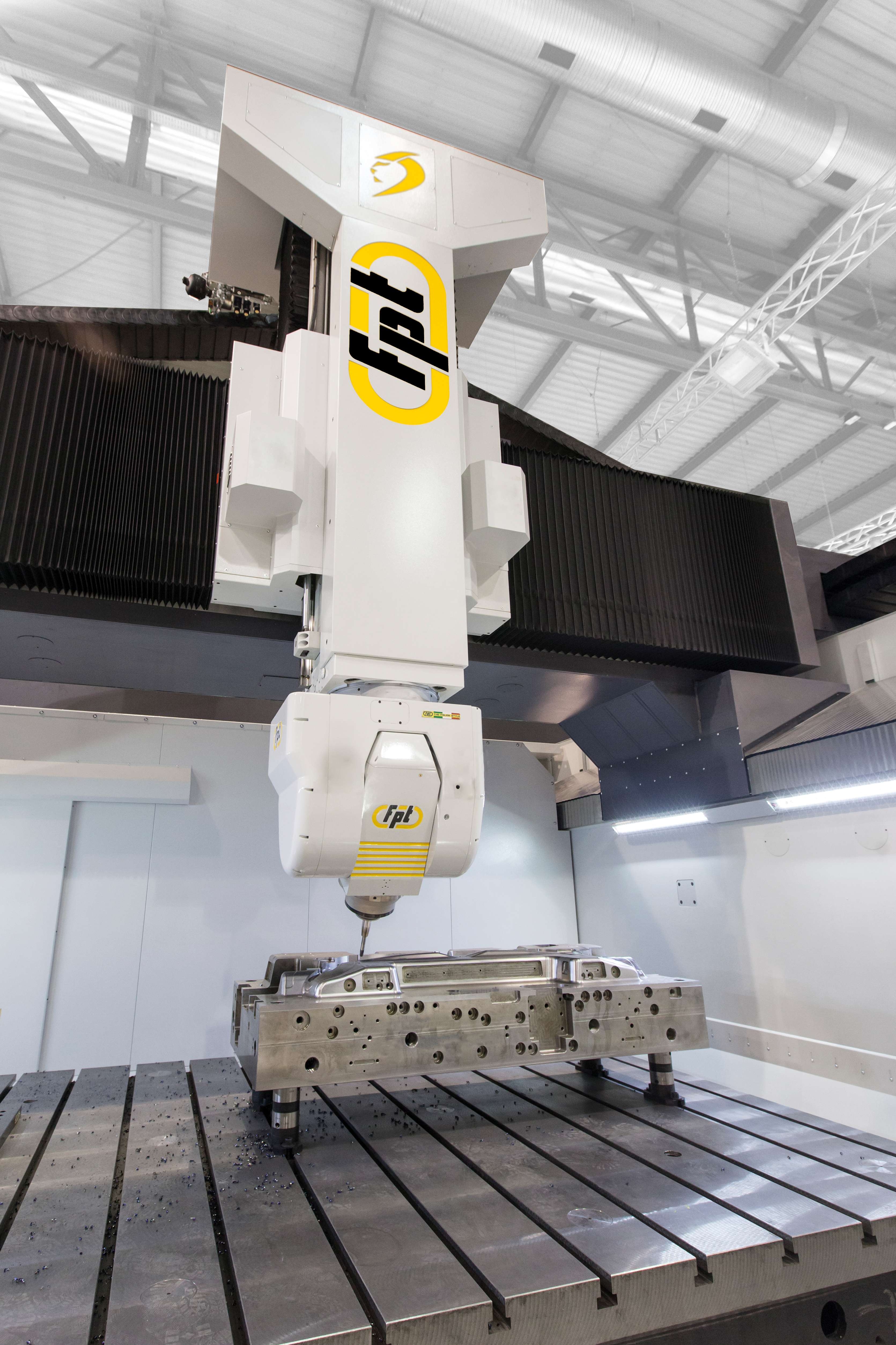

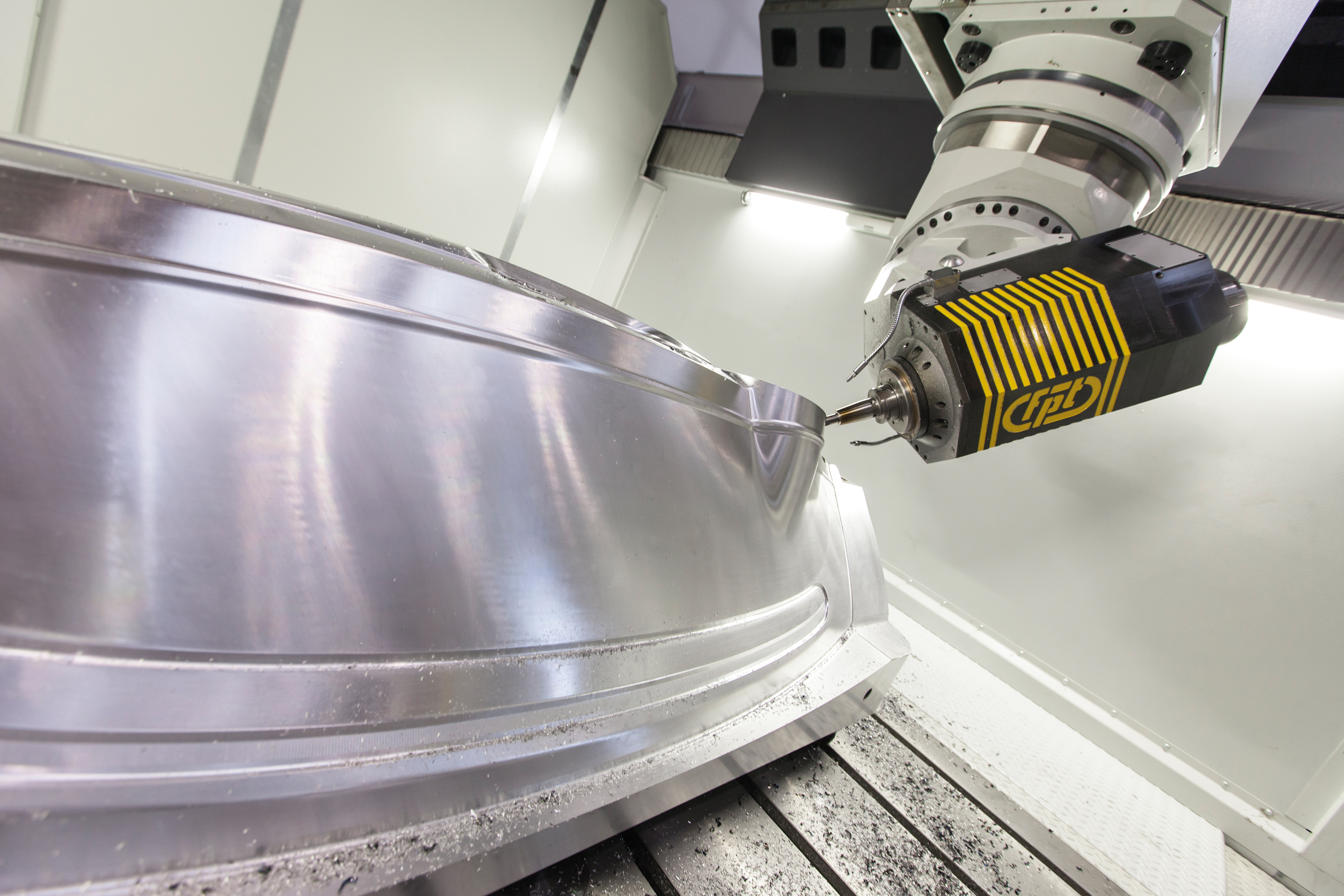

- TULCE 5-Axis Direct-Drive Head: Fast, precise, and versatile for advanced machining tasks.
- Automated Geometry Management: Maintains precision through continual self-calibration.
Highlights
- Travels - X Axis Travel distance (mm): 2500
- Travels - Y Axis Travel distance (mm): 2200
- Travels - Z Axis Travel distance (mm): 1100
Series description
|

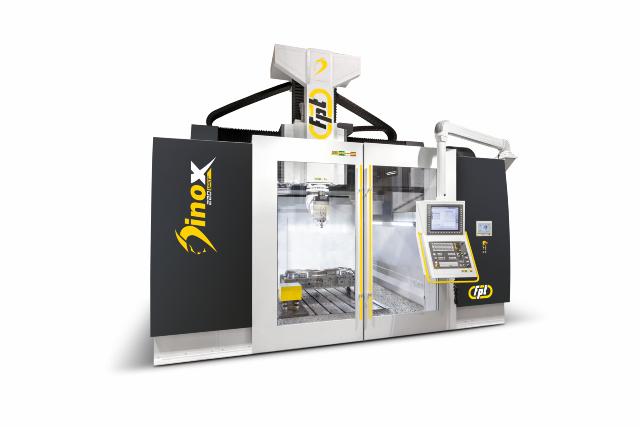

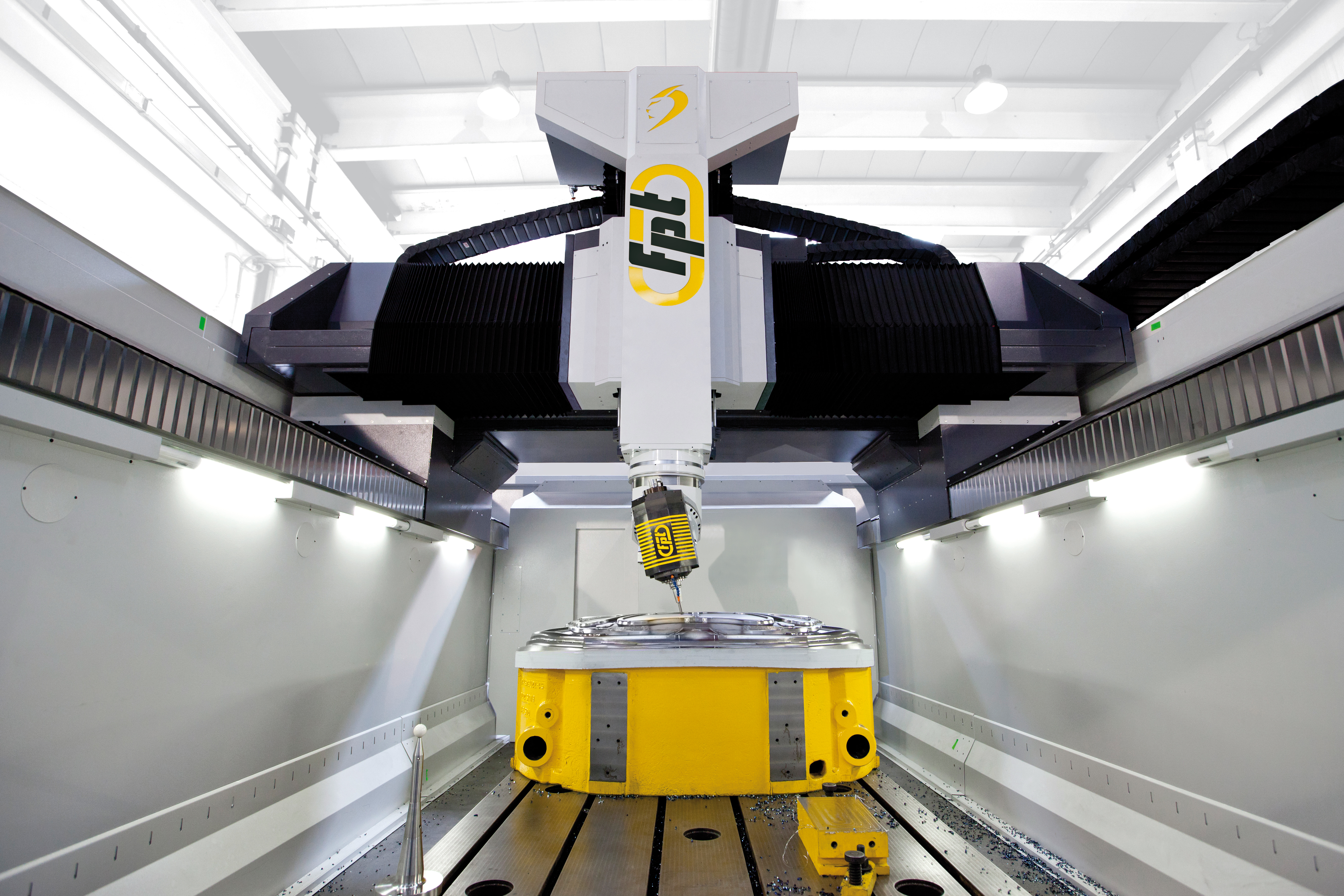

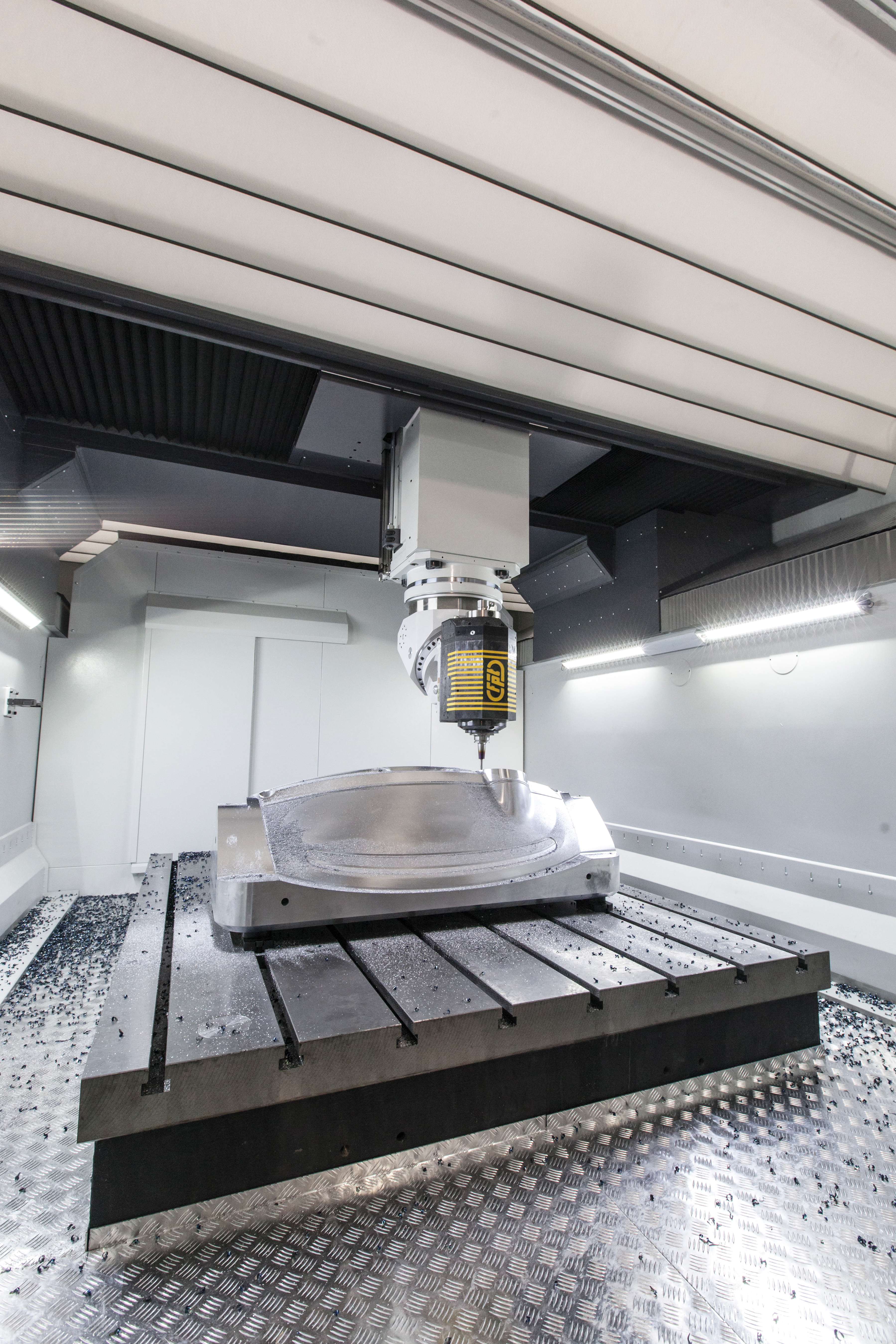

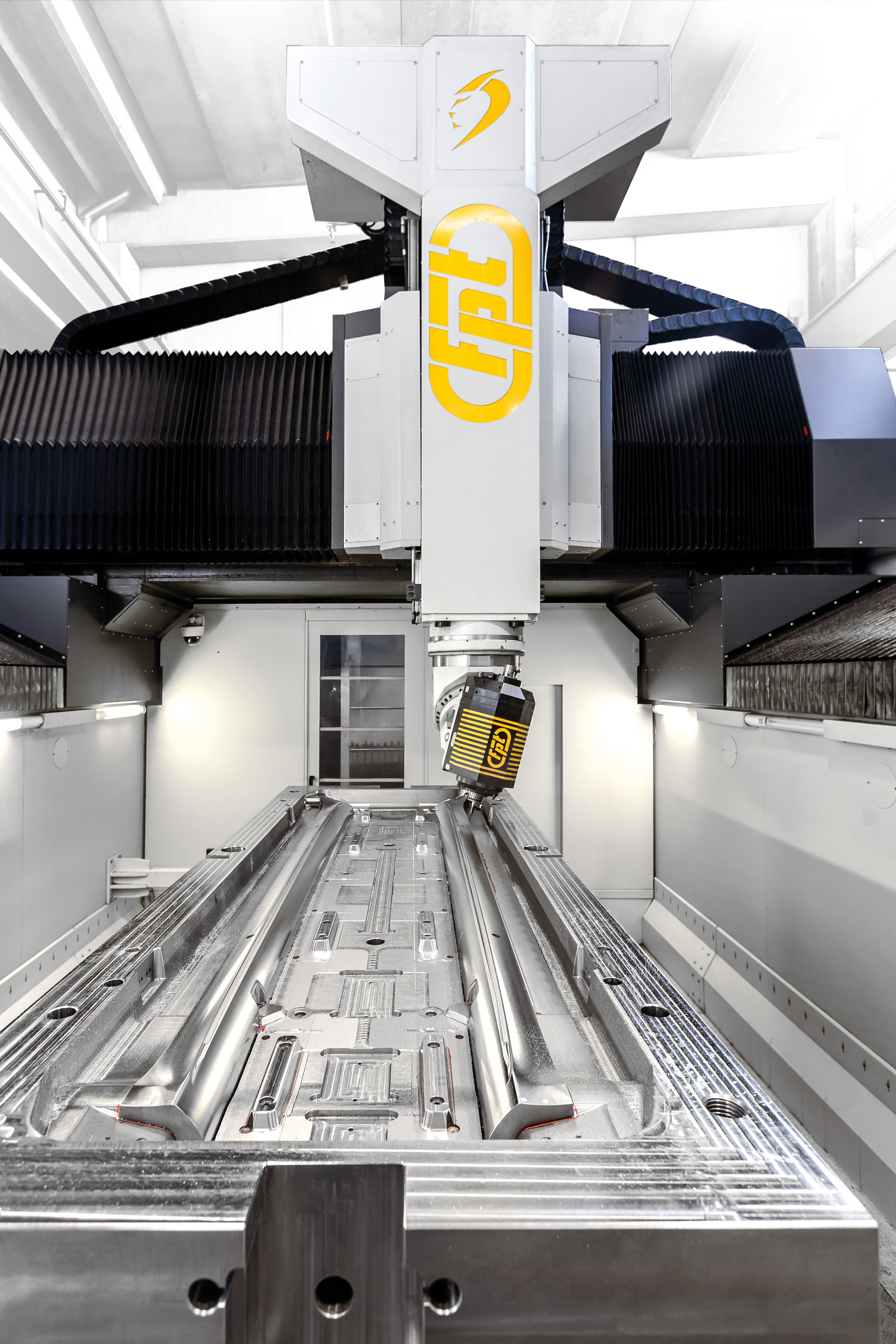

The Dinox 220 IAT is a vertical gantry milling machine featuring a moving bridge (gantry) design, tailored for both heavy-duty material removal and high-speed finishing. Supported by an optimized compact layout and floor-level foundation, it incorporates linear motor drives and dual guideways on both longitudinal and cross axes. The machine is equipped with the TULCE 5-axis direct-drive universal milling head, providing high-speed positioning and precision, including up to 10° undercut capability. Advanced structural stiffness, temperature compensation, and a continuous geometry monitoring and automatic recalibration system ensure outstanding accuracy. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 2500 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 2200 |
| Travels - Z Axis Travel distance (mm) | 1100 |
| Travels - X Axis Rapid Traverse (m/min) | 50 |
| Travels - Y Axis Rapid Traverse (m/min) | 50 |
| Travels - Z Axis Rapid Traverse (m/min) | 50 |
| Name | Download | File type | |
|---|---|---|---|
|
DINOX 220.pdf | 5194 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
