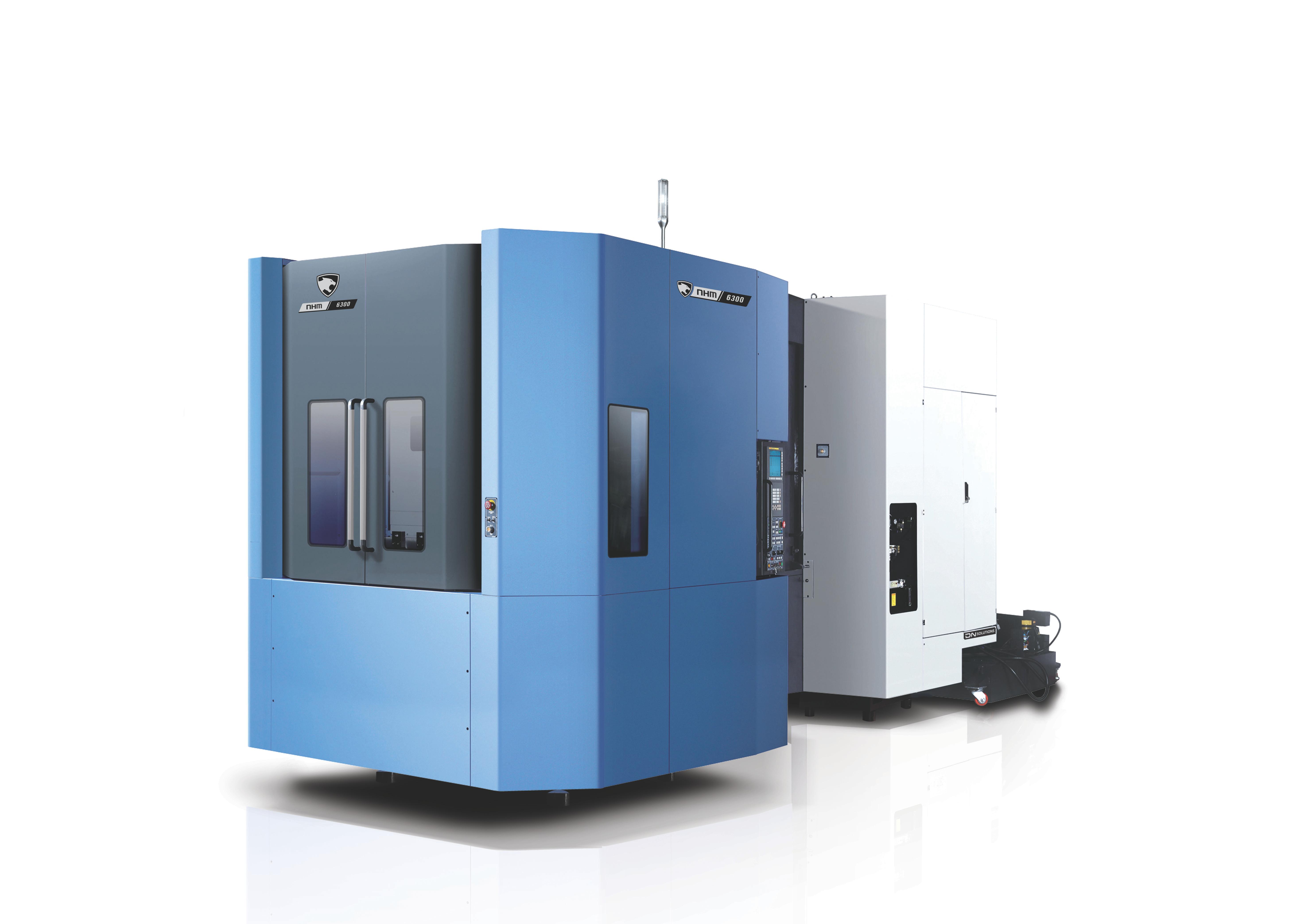

NHM 6300
- Superior Machining Capabilities: Offers the largest specifications and powerful cutting performance for diverse production needs.

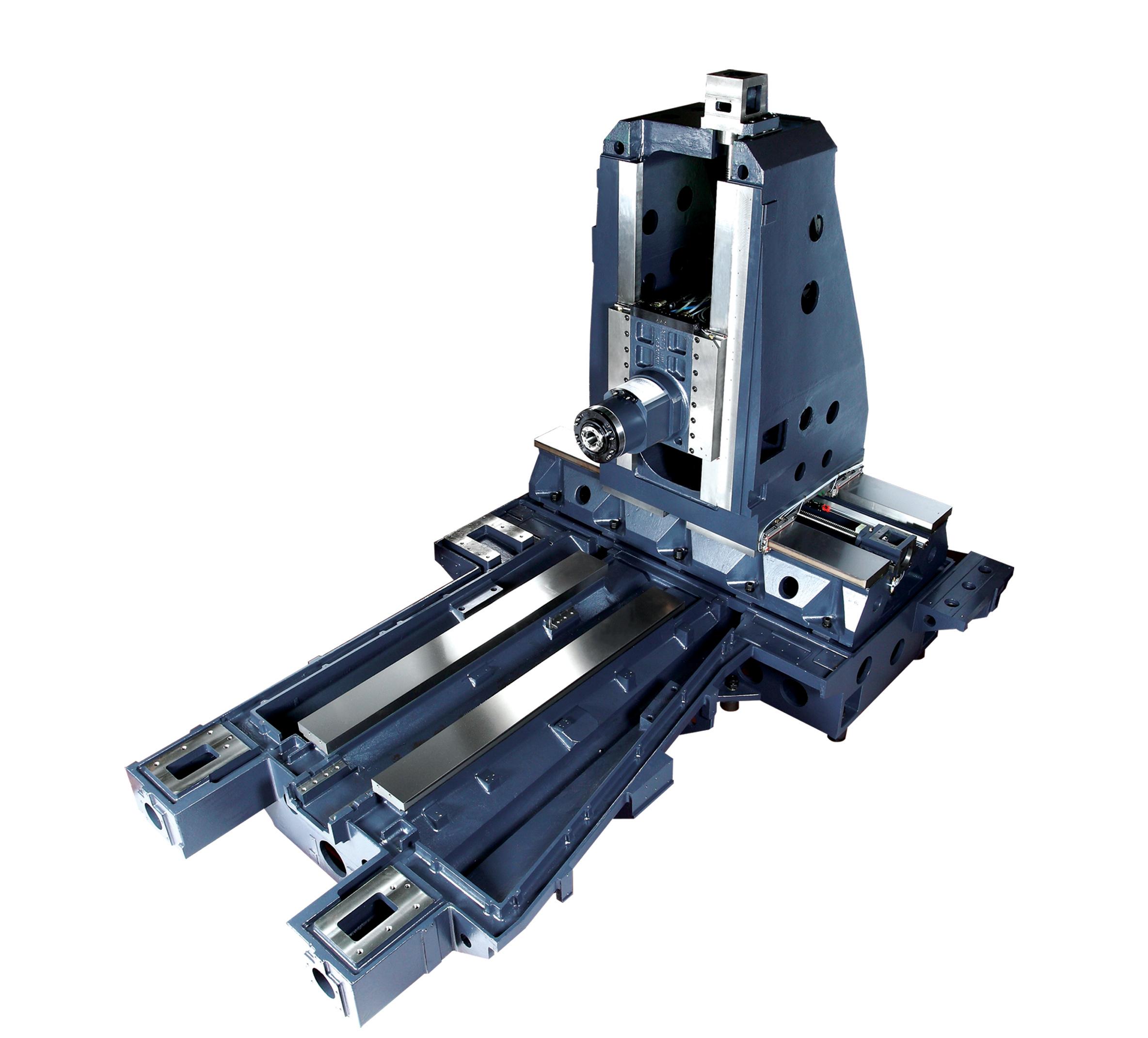

- High Rigidity: Integrated box-type guideway structure ensures optimal stability and precision, even with hard-to-cut materials.

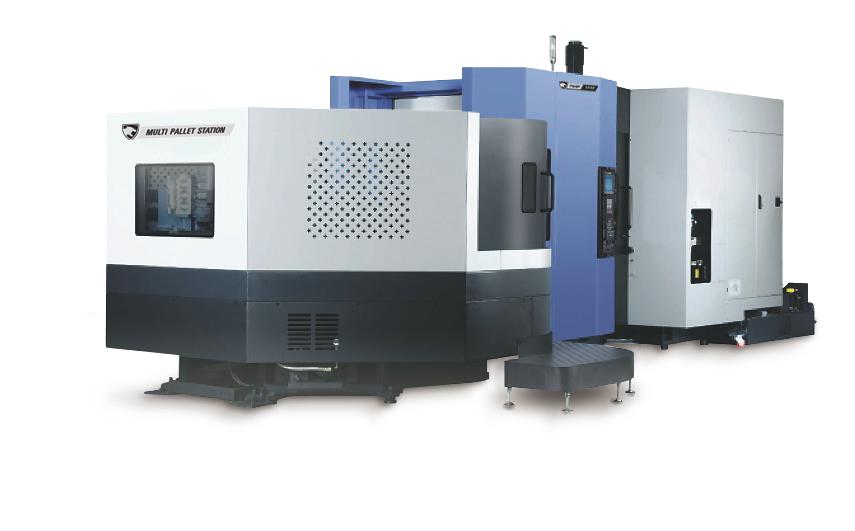

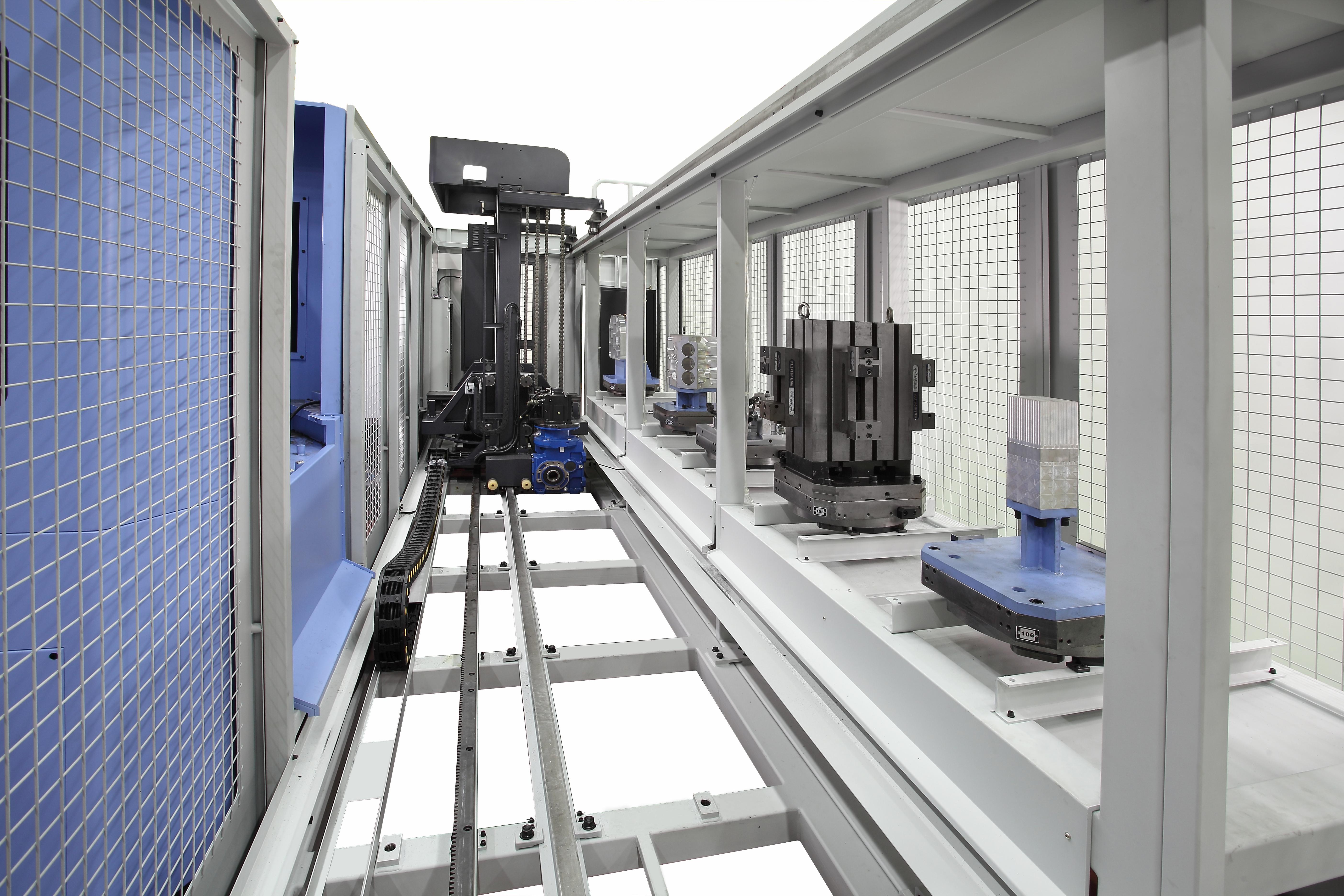

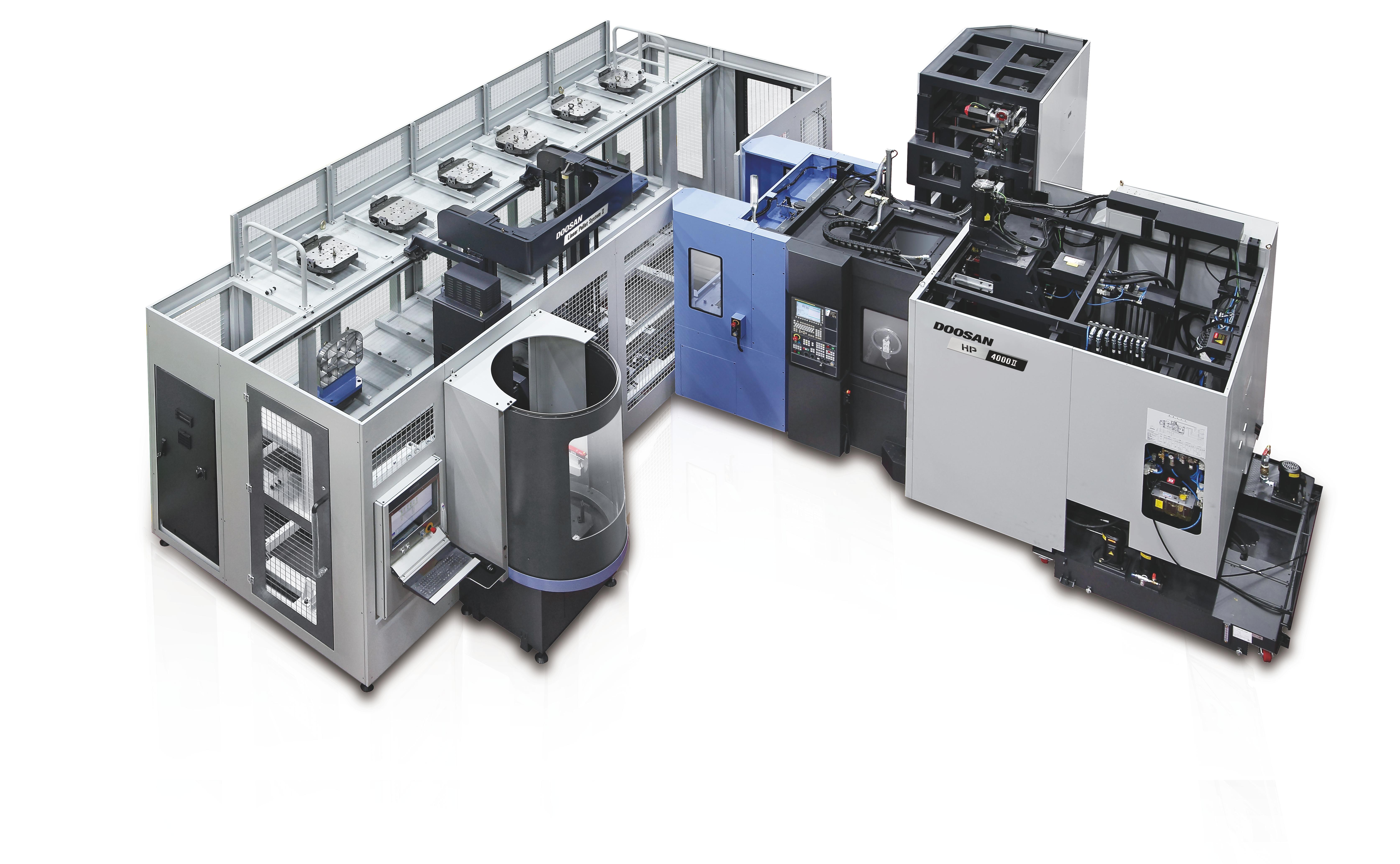

- Increased Productivity: Fast tool and pallet replacement, driven by servo motors, minimizes non-cutting time for enhanced efficiency.
Highlights
- Travels - X Axis Travel distance (mm): 1050
- Travels - Y Axis Travel distance (mm): 850
- Travels - Z Axis Travel distance (mm): 1000
Series description
|
The NHM Series offers the largest machining specifications and production capabilities in its class, delivering powerful cutting performance to meet diverse production needs. With an integrated box-type guideway structure, it provides exceptional rigidity and is optimized for machining a wide range of materials, from standard components to hard metals. The series also features fast tool and pallet replacement driven by servo motors, minimizing non-cutting time and enhancing both reliability and productivity. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 1050 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 850 |
| Travels - Z Axis Travel distance (mm) | 1000 |
| Travels - Z Axis Rapid Traverse (m/min) | 30 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 30 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 30 |
Table
| Max. Workpiece weight (kg) | 1200 |
|---|---|
| Pallet Size (mm) | 630x630 |
Workpiece capacity
| Max. Workpiece Diameter (mm) | 1050 |
|---|---|
| Max. Workpiece Height (mm) | 1350 |
| Max. Workpiece weight (kg) | 1200 |
Tool storage capacity

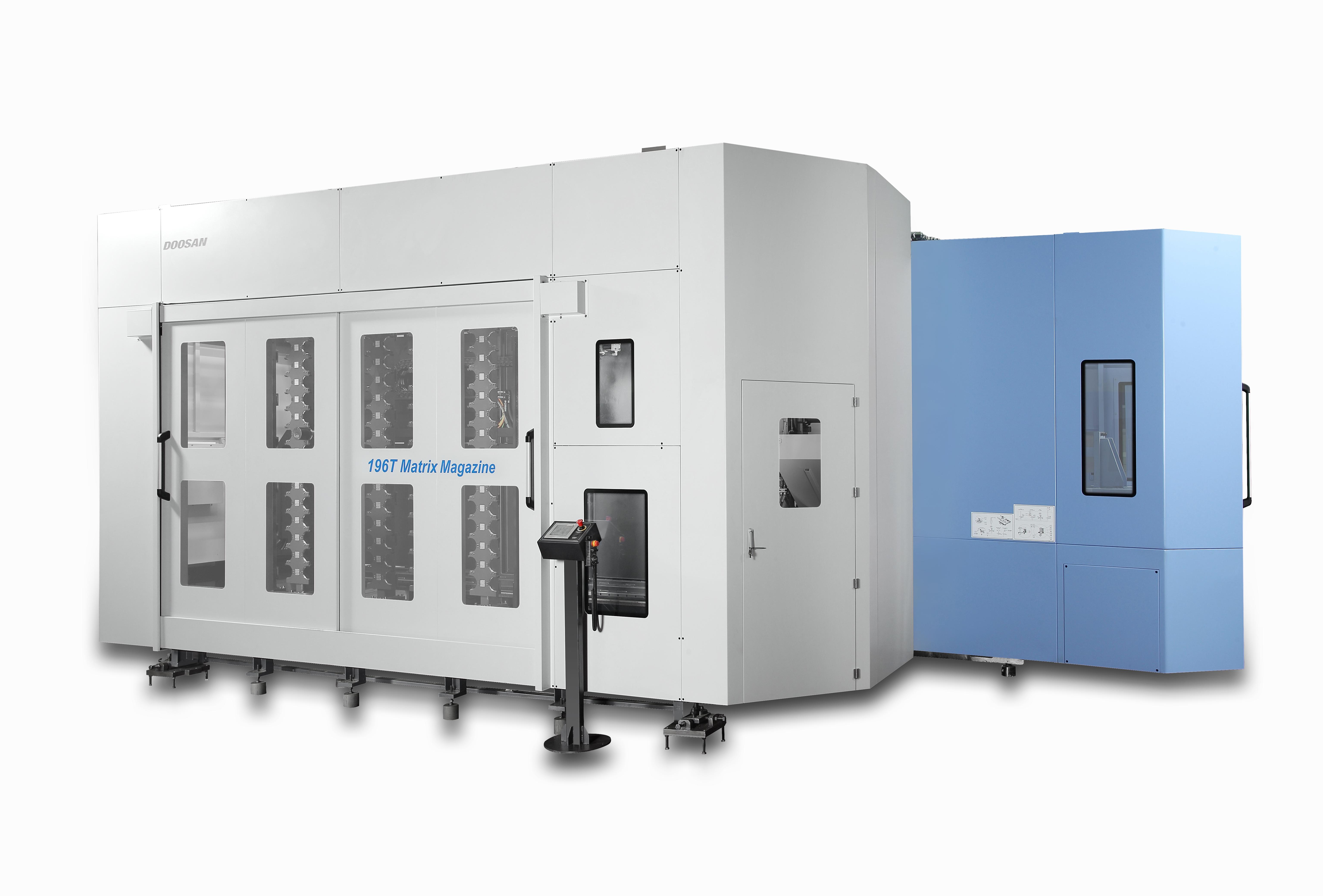

| Machining center - No. of tool station | 60/90/120/196/256/316/376 |
|---|
Main spindle
| Main Spindle Max. Speed | 6000 |
|---|---|
| Main Spindle Max. Power | 35 |
| Main Spindle Max. Torque | 1732 |
| Tool Taper (ISO) | 50 |
Turret
| Turret - No. of tool station | 60 |
|---|
Dimensions
| Length (mm) | 6410 |
|---|---|
| Height (mm) | 3495 |
| Width (mm) | 3930 |
| Weight (kg) | 20500 |
| Name | Download | File type | |
|---|---|---|---|
|
NHM series.pdf | 6581 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
