Castel
- Innovative Monolithic Column: Superior rigidity for heavy-duty machining and exceptional precision.

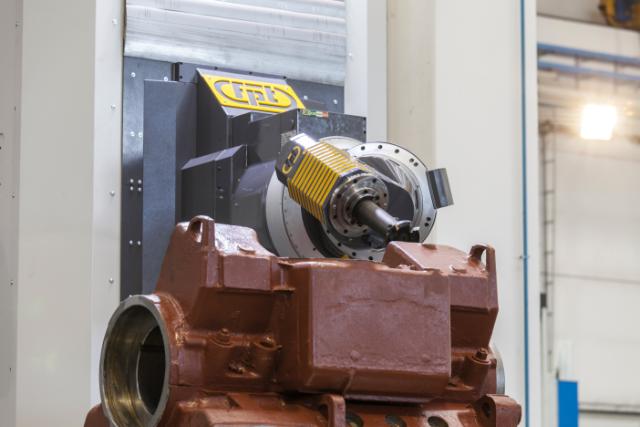

- Dual-Guided Headstock: Precise bore alignment with reduced deflection and enhanced accuracy.
- FPT Proprietary Software: Advanced geometric control and calibration via Autocal ensures consistent high-quality outcomes.
Highlights
- Travels - X Axis Travel distance (mm): 5000
- Travels - Y Axis Travel distance (mm): 2500
- Travels - Z Axis Travel distance (mm): 3000
Series description
|

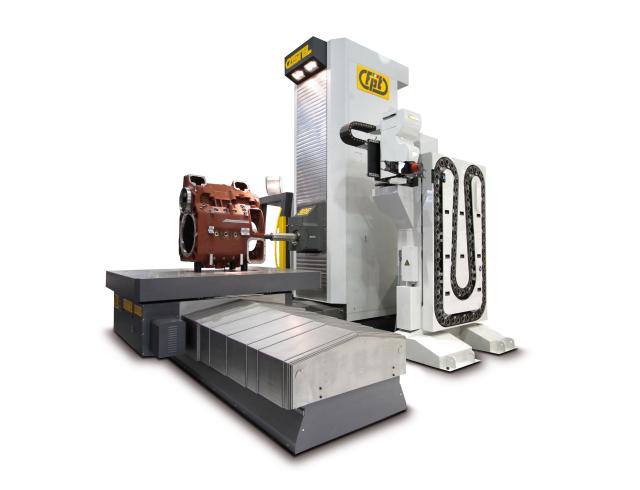

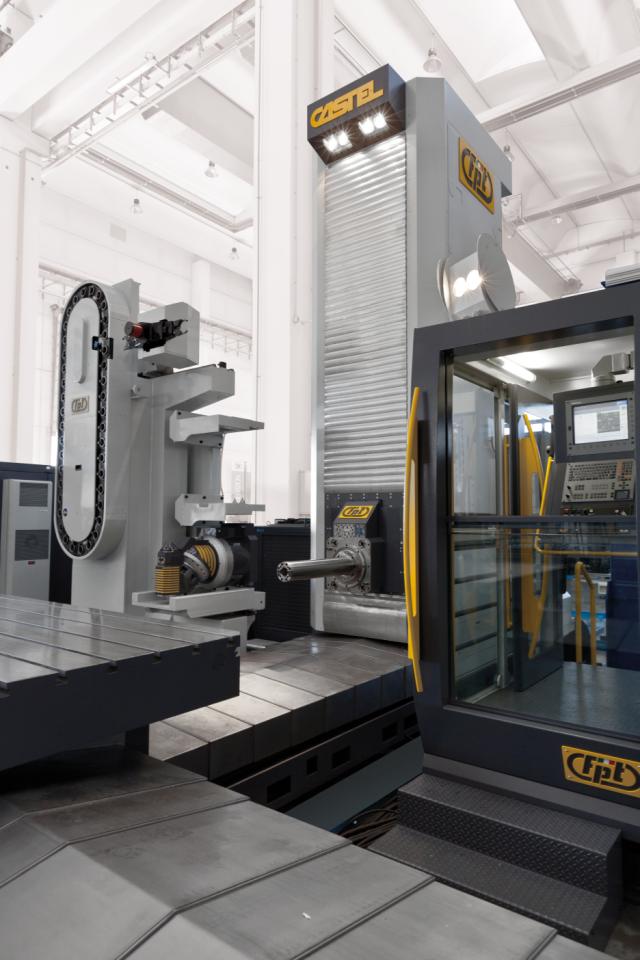

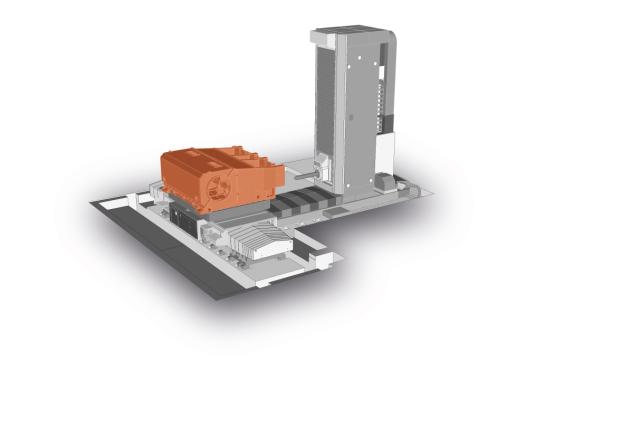

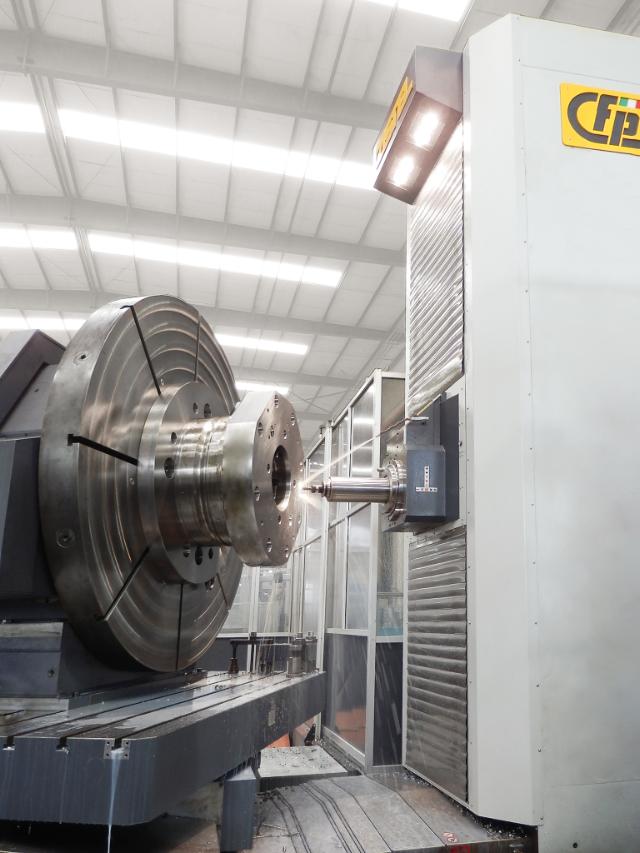

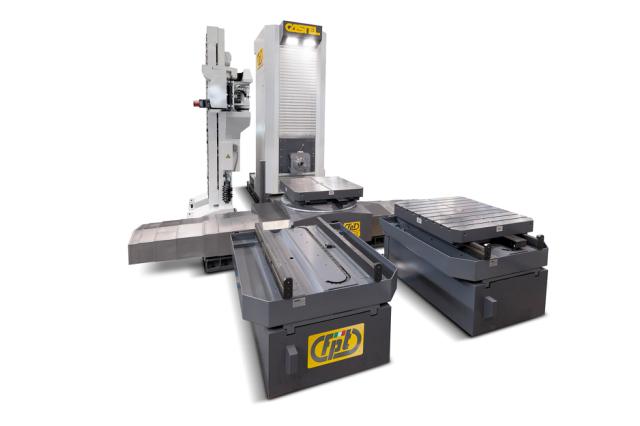

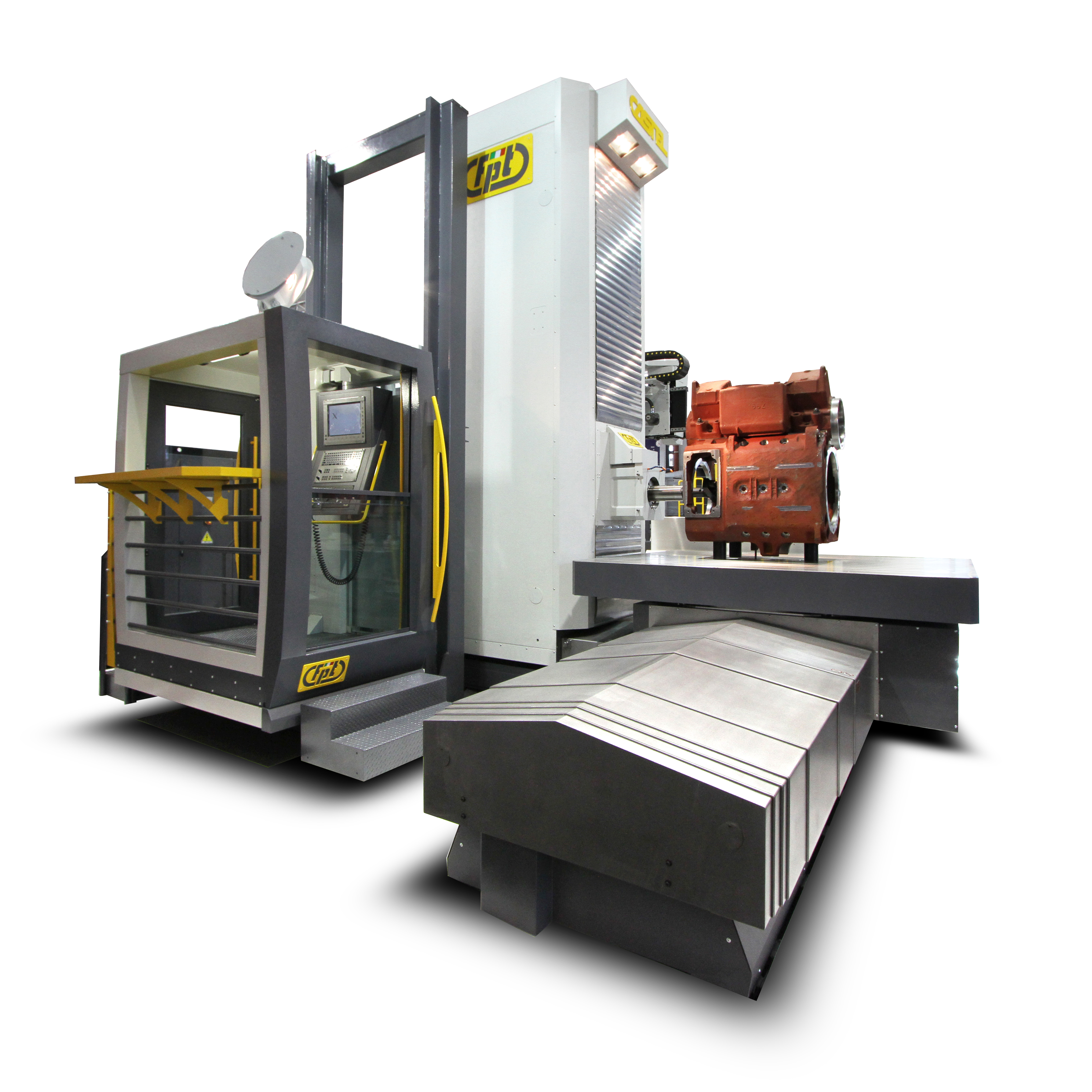

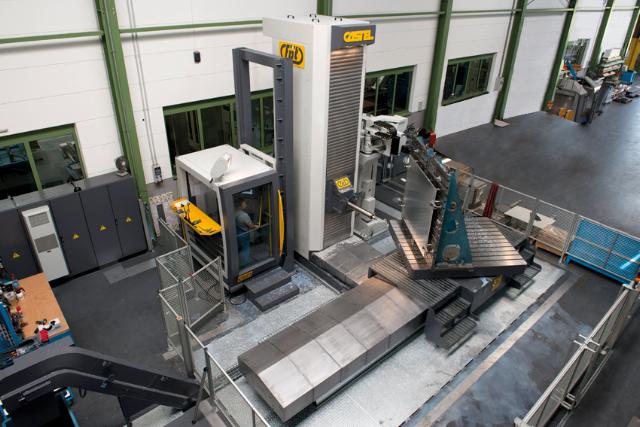

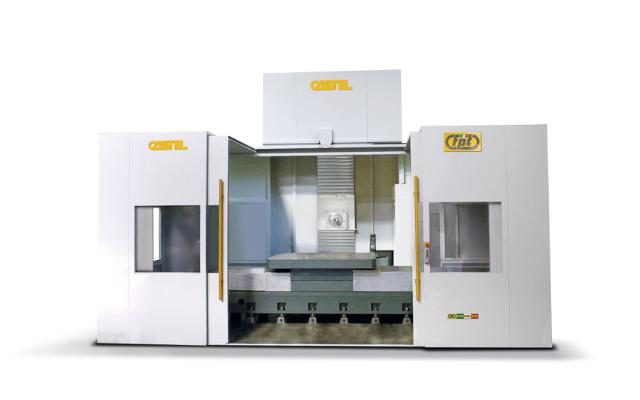

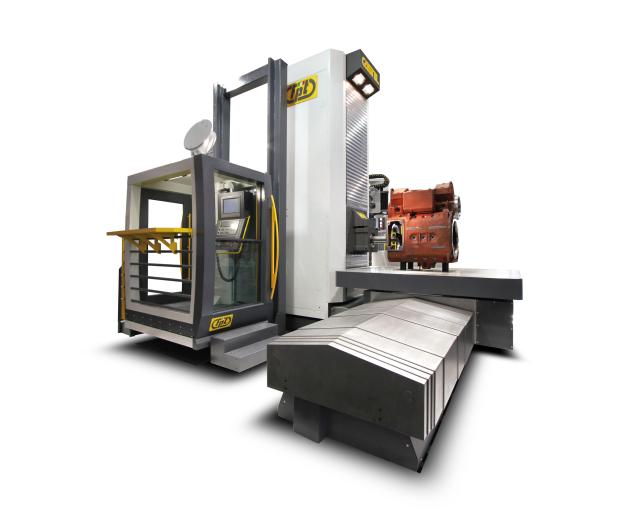

The CASTEL is a groundbreaking horizontal boring machine featuring a unique monolithic column design that integrates the longitudinal sliding saddle alongside a centrally guided headstock—both guided on both sides for exceptional stability. This revolutionary structural concept delivers extreme stiffness unmatched in traditional boring machines, driving outstanding roughing performance, accuracy, and surface finish quality. Fully engineered and produced at FPT’s Venice facility, CASTEL also integrates powerful software such as Autocal to ensure precise control and diagnostics. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 5000 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 2500 |
| Travels - Z Axis Travel distance (mm) | 3000 |
| Travels - X Axis Rapid Traverse (m/min) | 20 |
| Travels - Y Axis Rapid Traverse (m/min) | 20 |
| Travels - Z Axis Rapid Traverse (m/min) | 20 |
| Name | Download | File type | |
|---|---|---|---|
|
CASTEL.pdf | 3947 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
